- Color：polish
- Weight：5.0 kg
- WLL：500kg
- 6061-T6 aluminum extrusion
- Surface treatment：vibro polish (hook)
- For dia. 48~51mm tube
- Bolt: MR16
- Adjustable distance 205mm-405mm (central to central)
Categories: Couplers & Clamps

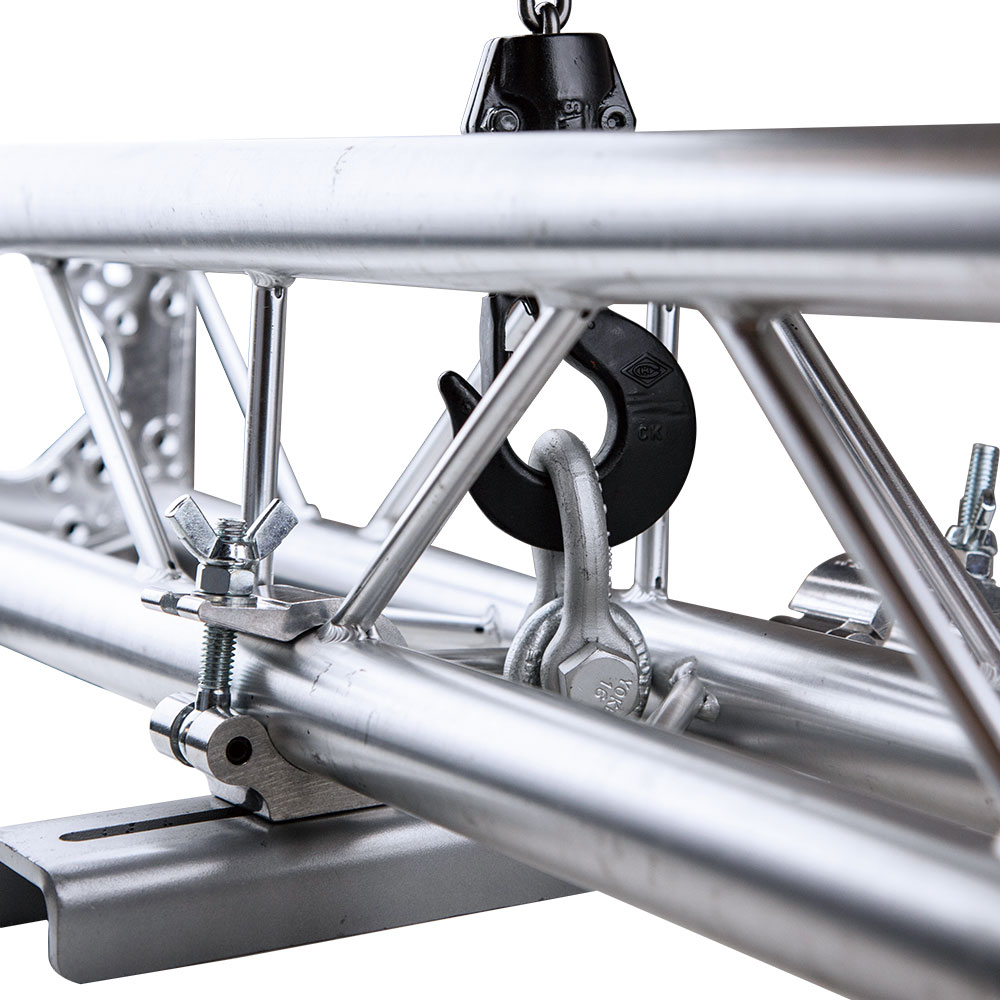

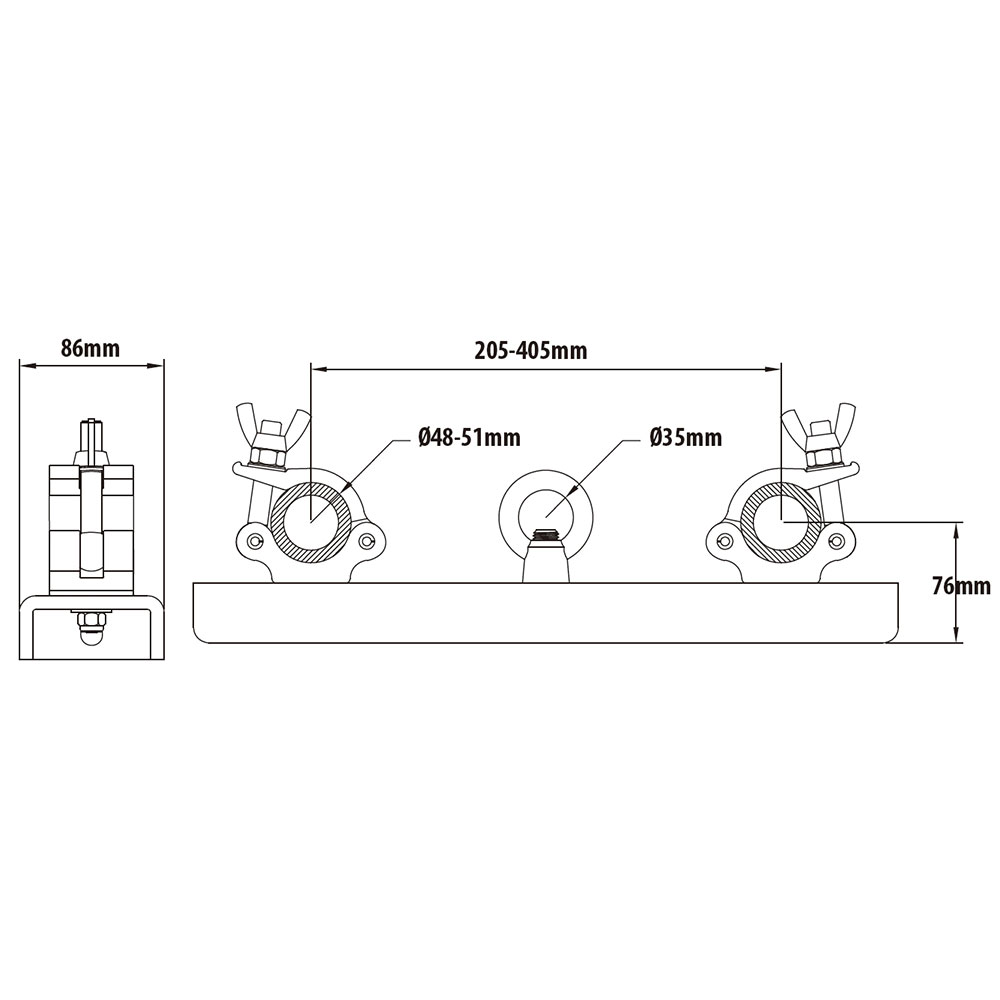

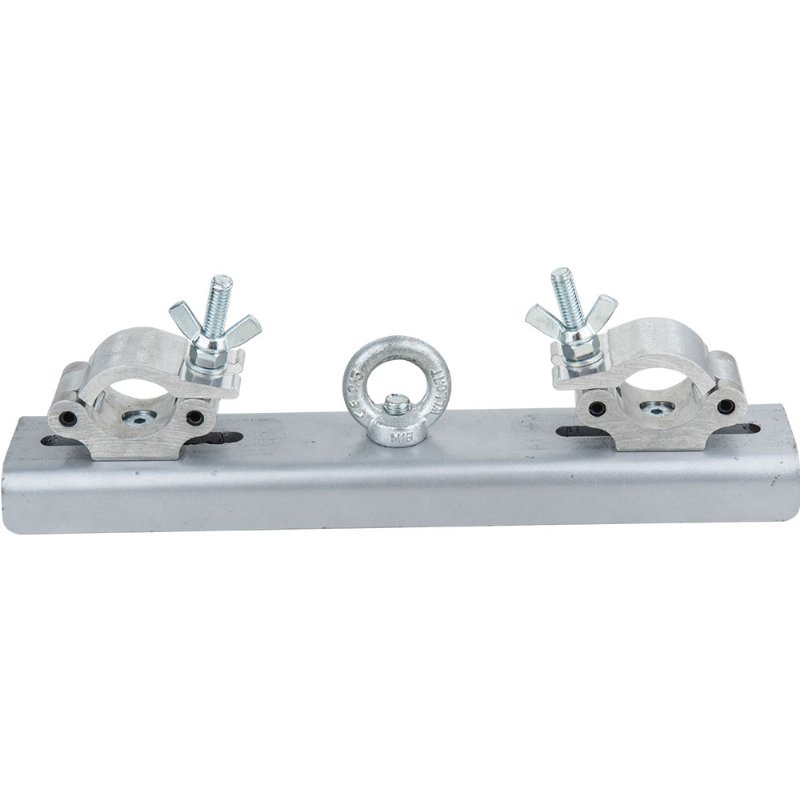

KUPO Lifting truss coupler (KCP-835L) is structured with high tensile 6061-T6 Aluminum couplers and a 450mm long, 8mm thick plate. Heavy duty and working load limit is up to 500kgs. Applicable for 2/3/4 point truss. Ideal for lifting truss. For truss with dia. 48-51mm main tube, and the distance between main tube is 205-405mm. Eye-ring diameter is 35mm. Ideal for lifting truss.
- 6061 T6 high tensile aluminum extrusion
- Feasible for tube dia. 48~51mm
- WLL up to 200kgs
- Distance of main tubes (center to center) 195-395mm
- With 28mm spigot
