- Color: Silver
- Weight: 0.36kg (0.79lbs)
- WLL: 100kg (220lbs)
- 6061-T6 aluminum extrusion

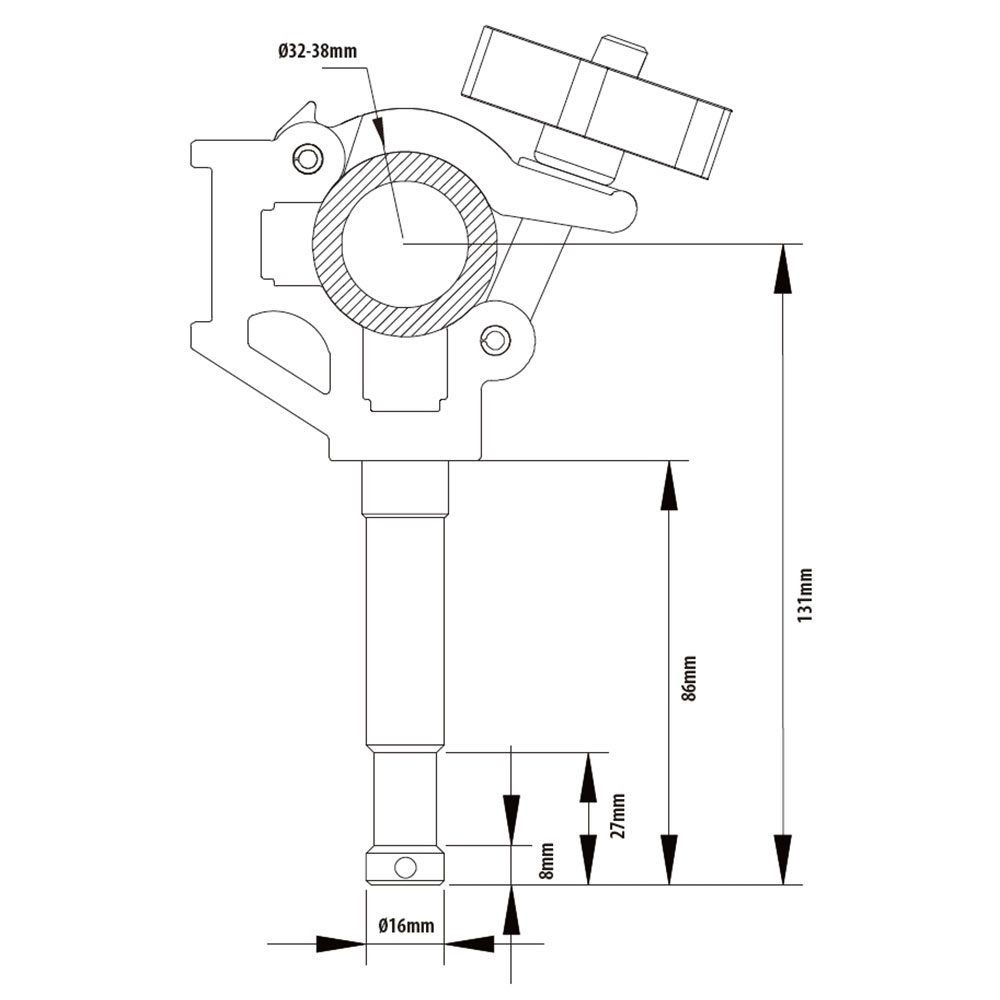

- for dia. 32~38mm (1.25"~1.5") tube
- 16mm Baby Pin
Categories: Couplers & Clamps

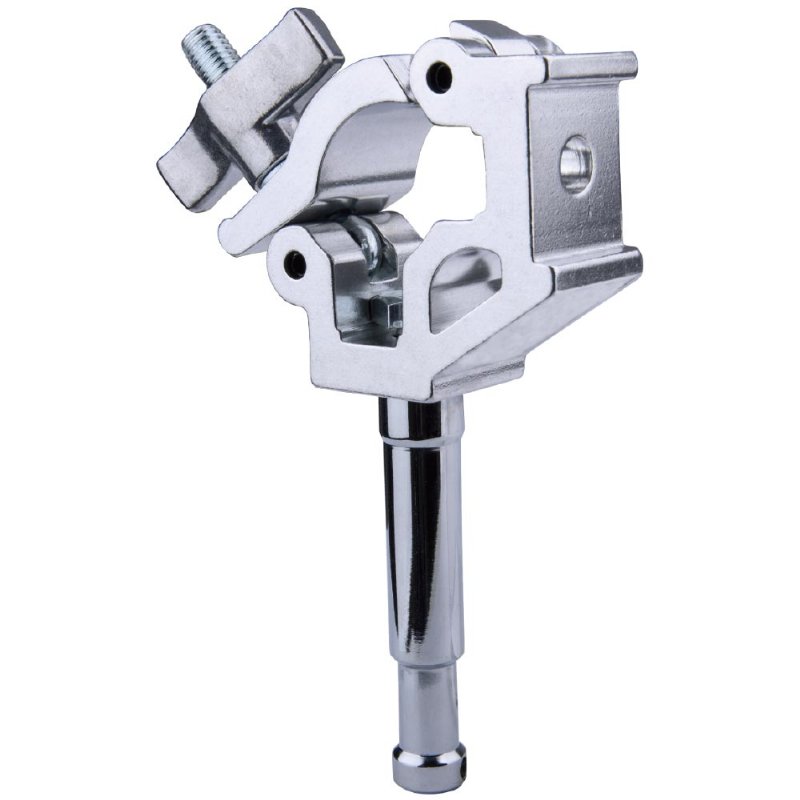

KUPO Nugget 16mm Stud Coupler (KCP-866) is constructed from high tensile aluminum extrusion with a 16mm Baby Stud. Heavy duty and working load limit is up to 100kgs (220lbs). For dia. 32-38mm (1.25"-1.5") tube. A captive on top of thread bolt to avoid wing nut falling off the clamp. Equipped with a 16mm(5/8in) stud for lightweight luminaires or grip heads. Ideal for film, theater or TV studio.
- 6061 T6 high tensile aluminum extrusion
- Feasible for tube dia. 32~38mm (1.25"~1.5")
- WLL up to 100kgs (220lbs)
- 16mm (5/8in) stud for lightweight luminaires or grip heads
- Ideal for film, theater or TV studio
- A captive on top of thread bolt to avoid wing nut falling off the clamp
