Brand: LITEGEAR
MFR: LD-PLUS-DC100V
Categories: Dimmers

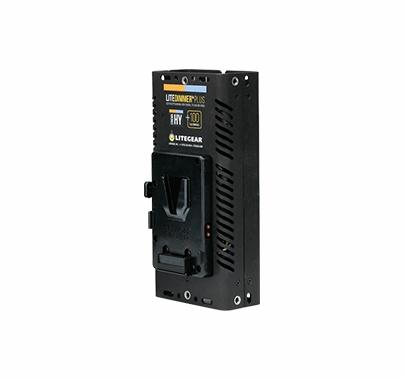

Use this LiteDimmer Plus DC100V Dimming System from Litegear to power your compatible +Series light fixture from a V-mount battery. It is compatible with LiteMat + Plus 1, 2, and 2L fixtures and allows you to control the brightness of your fixture's output, as well as create light effects such as paparazzi, fire, and variable low-mode. Additionally, the LiteDimmer Plus allows you to adjust the color temperature of your fixture and provides numerous rigging points for secure attachment.
| Light Compatibility | Litegear: +Sries |
| Input Power | 9 to 40 VDC |
| Output Voltage | 24 VDC |
| Maximum Power Load | 100 W Total |
| Battery Plate | 1x V-Mount |
| Battery | 1x V-Mount, 14.4 VDC (Not Included) |
| Inputs/Outputs | 1x Proprietary Power Input (9 to 40 VDC) 1x Proprietary Power Output 1x 2.5 mm Submini TRS Remote Input |
| Light Control | Manual |
| Mobile App Compatible | No |
| Mounting | 1/4"-20 Female |
| Display | No |
| Environmental Resistance | No |
| Materials | Metal |
| Dimensions | 9.4 x 4.4 x 3.1" / 23.9 x 11.2 x 7.9 cm |
| Weight | 2.4 lb / 1.1 kg |
