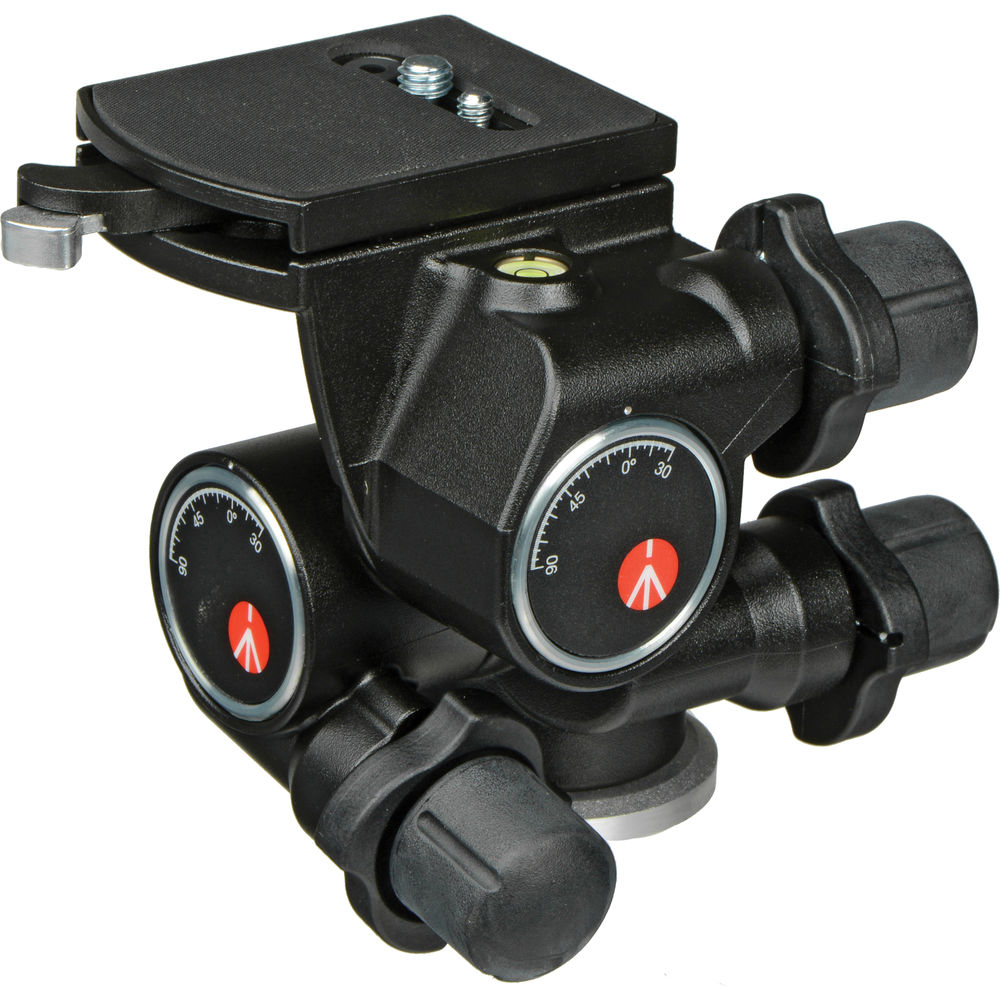

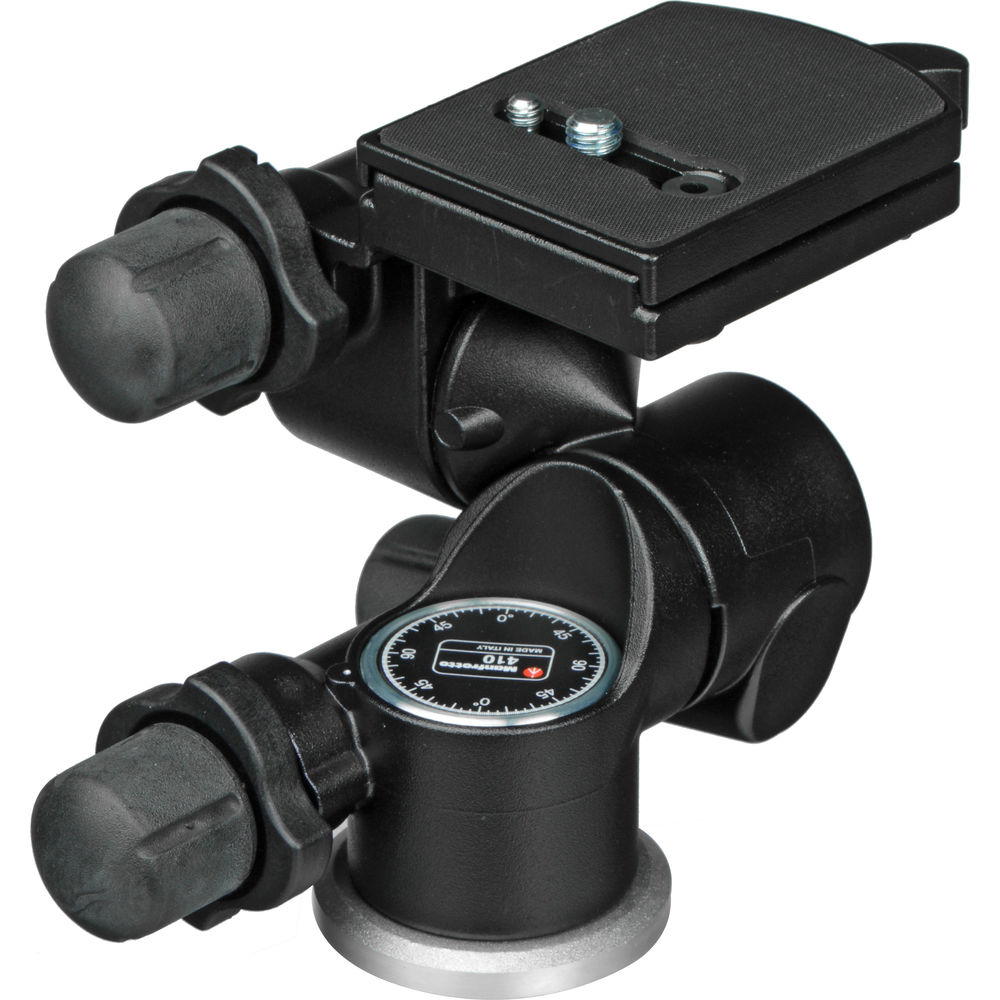

This 410 3-Way, Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 11.0 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC4 quick release cam lock and a 410PL Quick Release Plate. RC4 compatible quick release plates such as the 410PL can removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached.
Cameras or accessories that are compatible with a 1/4"-20 or 3/8-16" mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other and have individual, snap-lock knobs with easy-to-turn, 4-star grips. Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place. An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments, which help to ensure that any device mounted to this 410 3-Way, Geared Pan-and-Tilt Head is precisely positioned relative to the subject.
To further promote fast and repeatable device positioning, this 410 3-Way, Geared Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility.
410 3-Way, Geared Pan-and-Tilt Head
410PL Quick Release Plate
Head
| Head Type | Geared Head |
| Base Mount | 3/8"-16 Female |
| Camera Mounting Screw | 1/4"-20 Male, 3/8"-16 Male |
| Quick Release Plate Type | RC4 |
| Number of Bubble Levels | 1 |
| Friction Control | No |
| Independent Pan Lock | No |
| Independent Tilt Lock | Yes |
| Lateral Tilt | -90° to +30° |
| Vertical Tilt | +90° to -30° |
| Panning Range | 360° |
General
| Load Capacity | 11 lb / 4.99 kg |
| Diameter | 2.4" / 6.0 cm |
| Materials | Aluminum Alloy |
| Weight | 2.7 lb / 1.22 kg |
Packaging Info
| Package Weight | 3.1 lb |
| Box Dimensions (LxWxH) | 7.4 x 5.9 x 4.6" |
