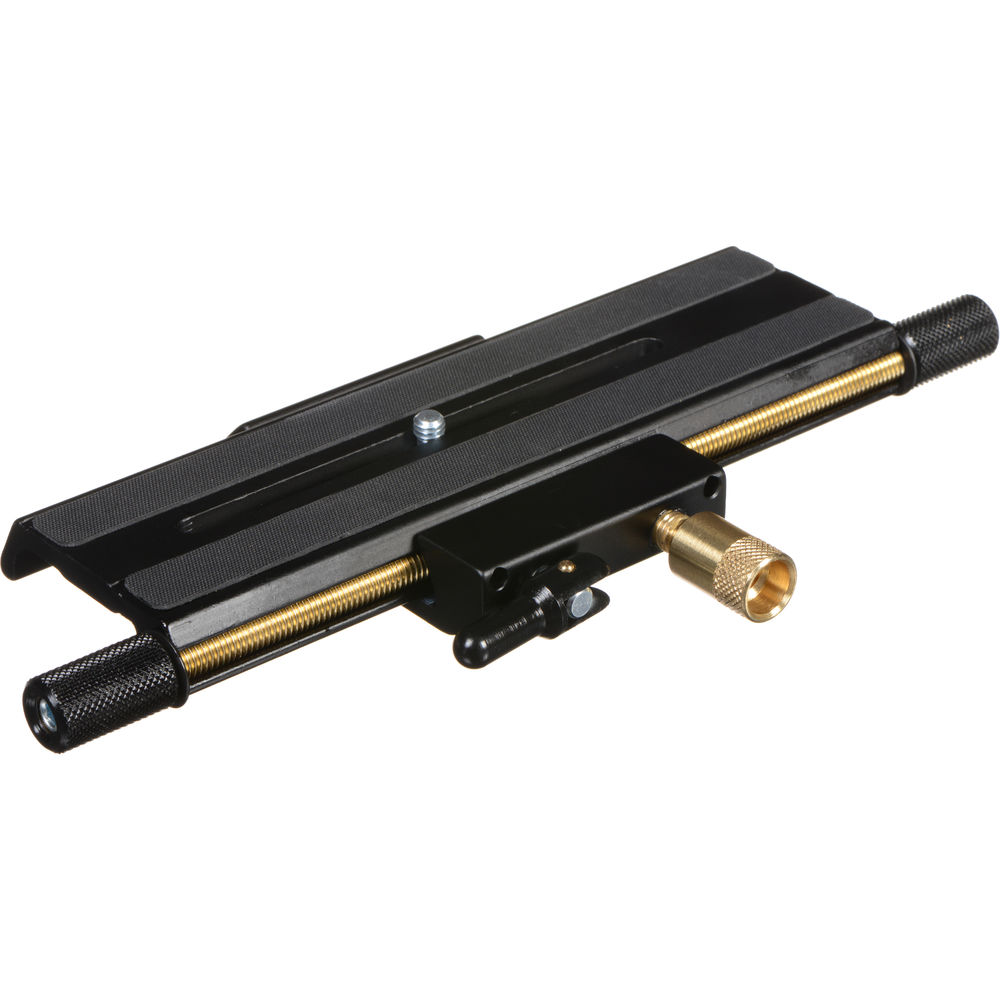

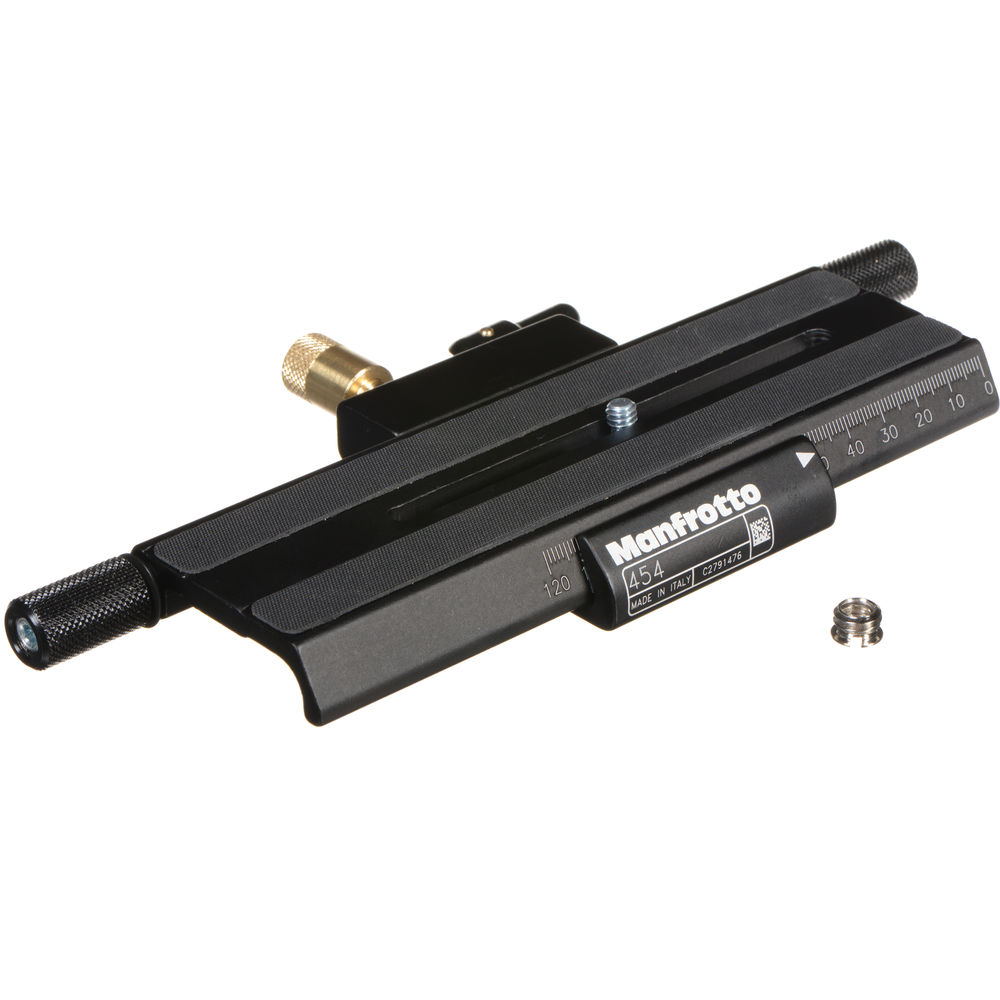

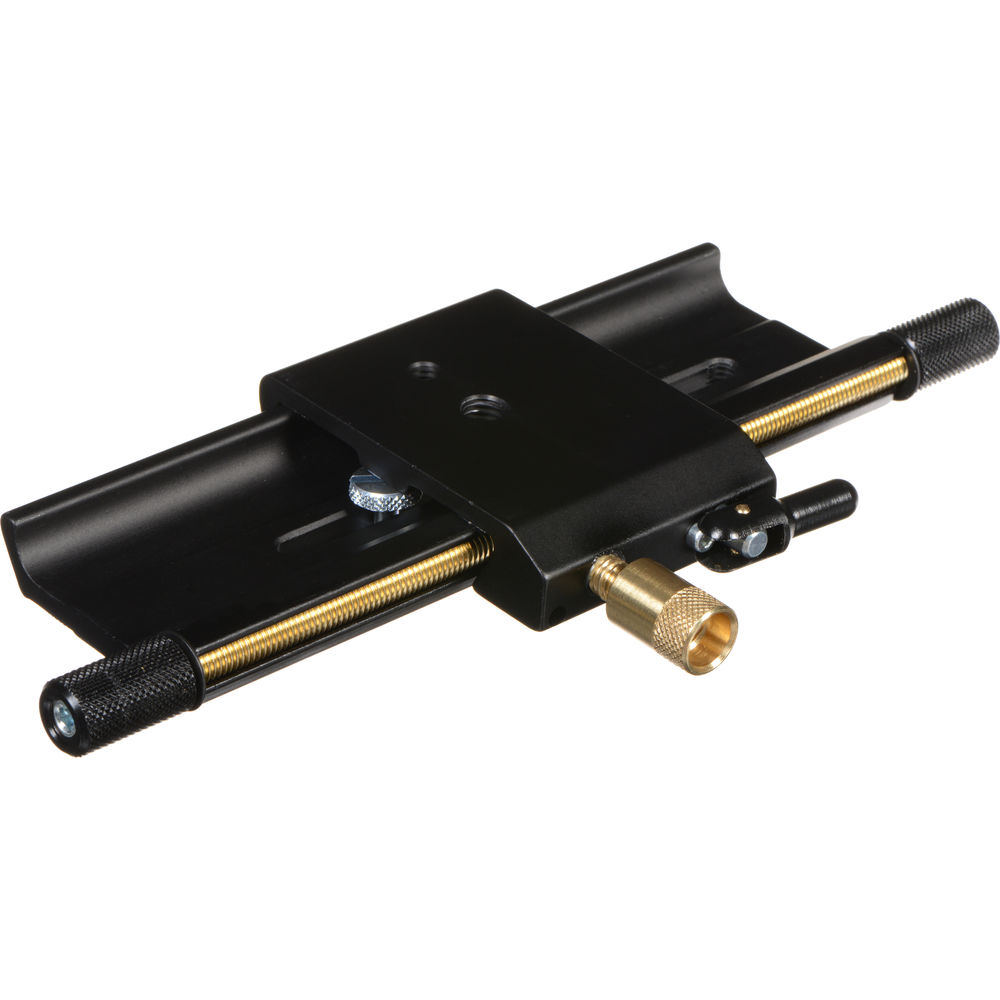

The Manfrotto 454 Micrometric Positioning Sliding Plate is a quick release system that allows for some positioning within the clamp for fore-aft macro adjustments.
It is the ideal tool to make precise positioning movements to achieve the perfect framed shot, for macro photography, for QTVR, and other precise copy/repro work. This plate has finger-tip control for ultra-fine positioning, but has a simple lock-release lever for fast set-up.
Two plates can be interlocked at 90° for full lateral/forward/back movement (over 4.7"). Made of extruded aluminum, the plate has 1/4"-20 and 3/8" holes and screws for tripod and camera mounting.
Replaces old part number 3419.
| Maximum Movement | 4.7" (120 mm) |
| Quick Release | No |
| Tripod Mount Thread Size | 1/4"-20 & 3/8"-16 |
| Dimensions | 5.2 x 4.2 x 0.8" (131 x 107 x 20 mm) |
| Weight | 1 lb (450 g) |
Packaging Info
| Package Weight | 1.28 lb |
| Box Dimensions (LxWxH) | 10 x 4.9 x 0.6" |
