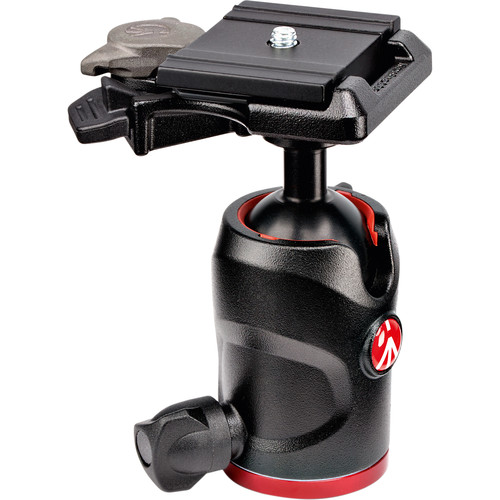

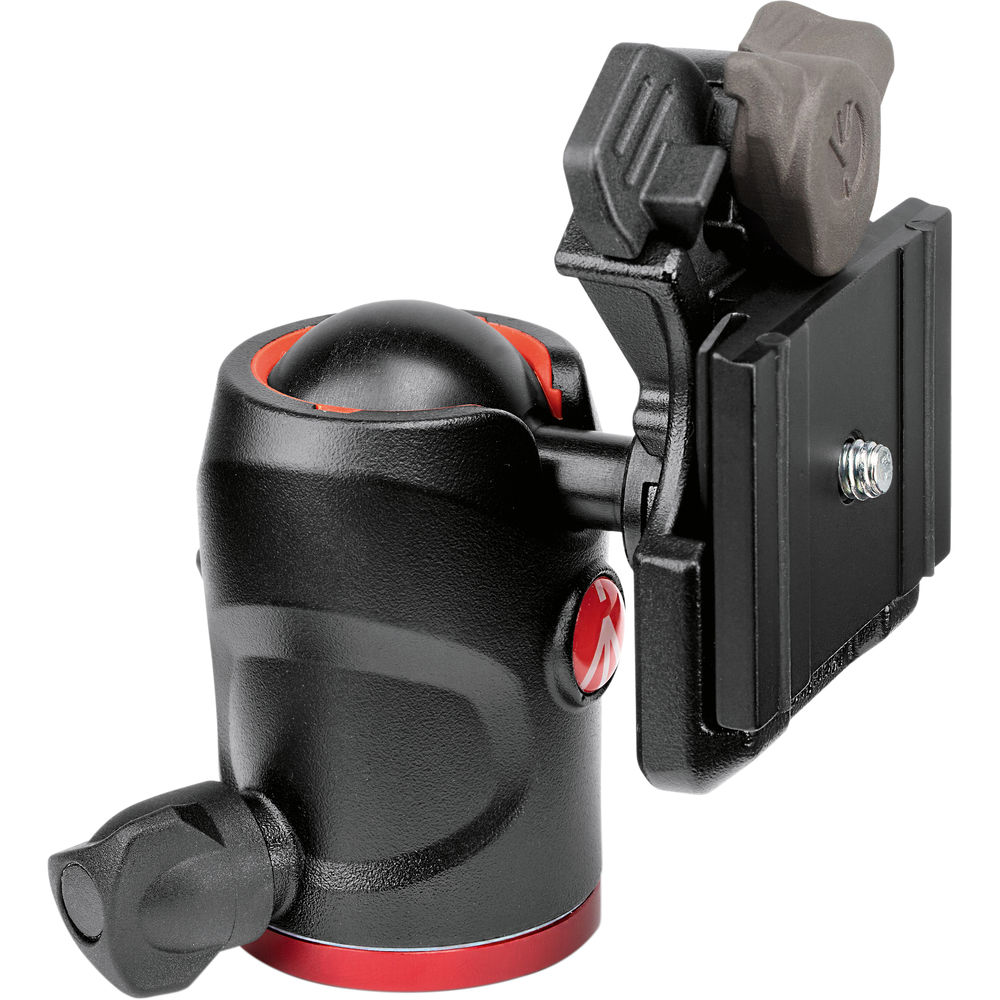

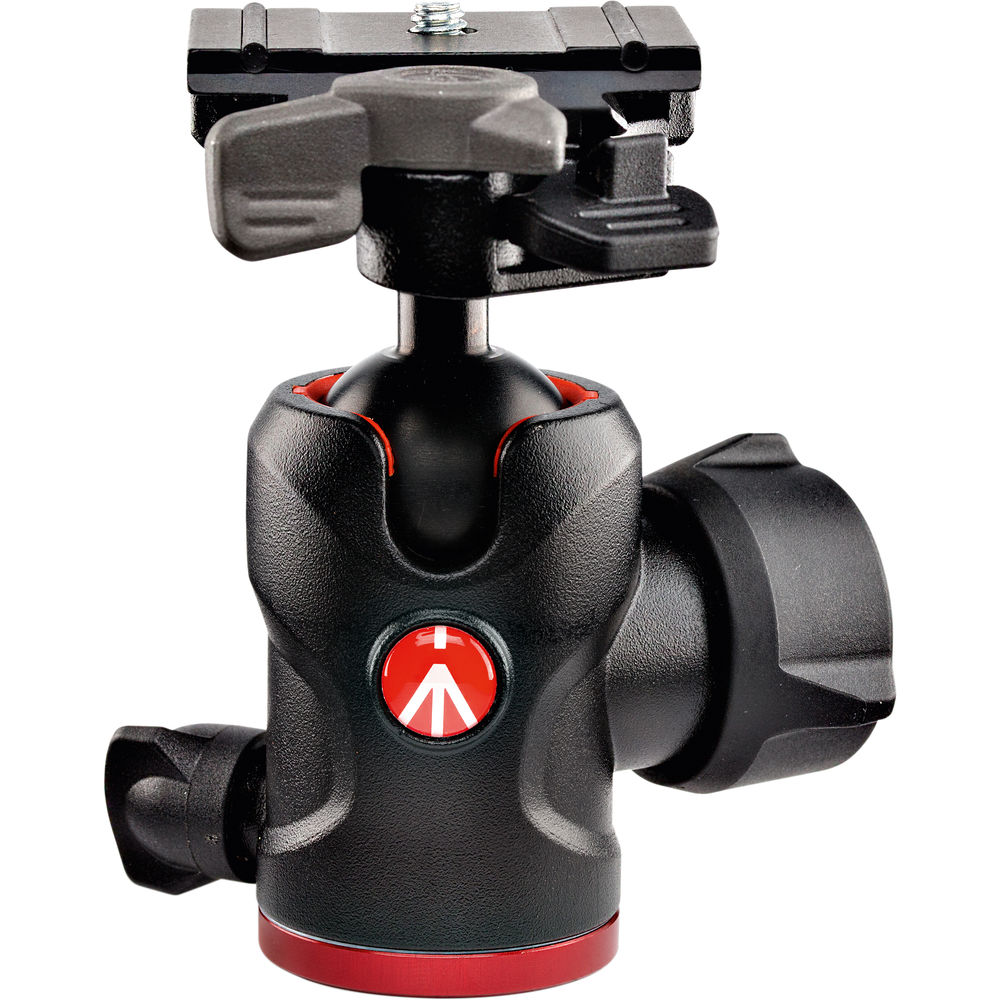

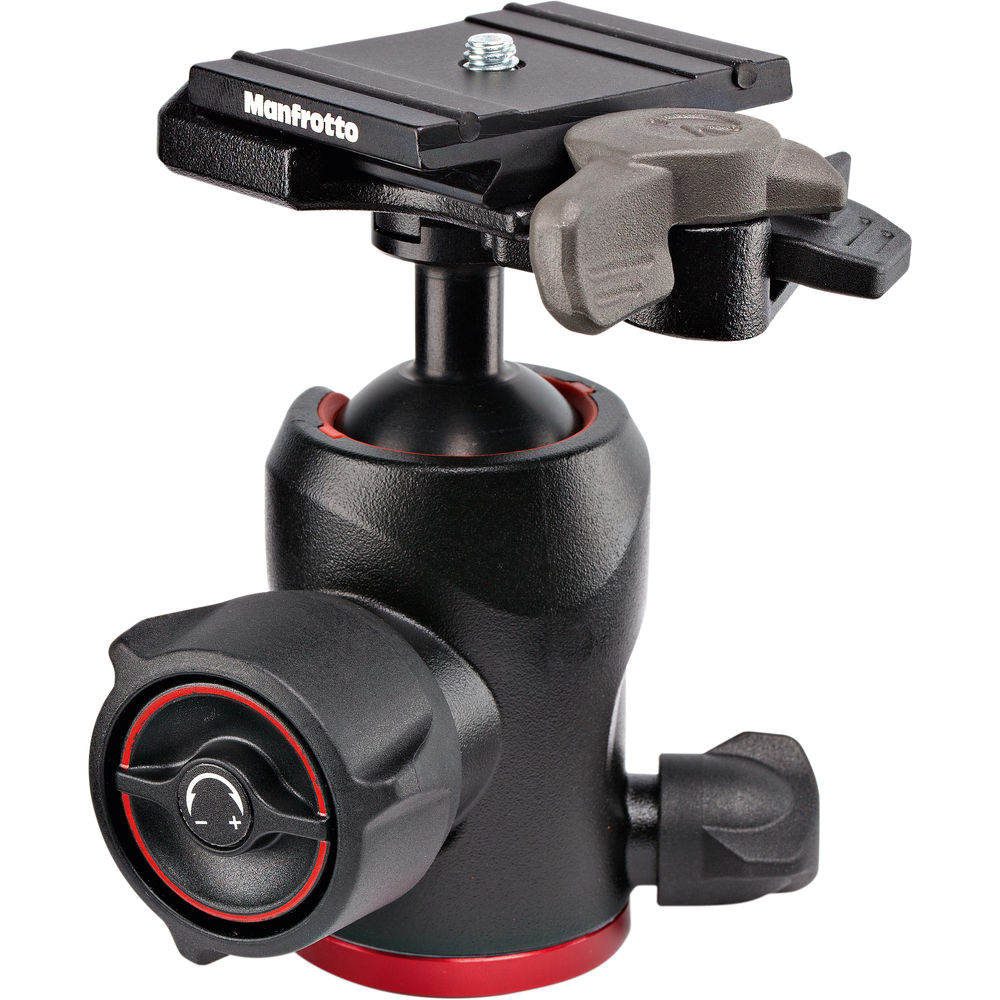

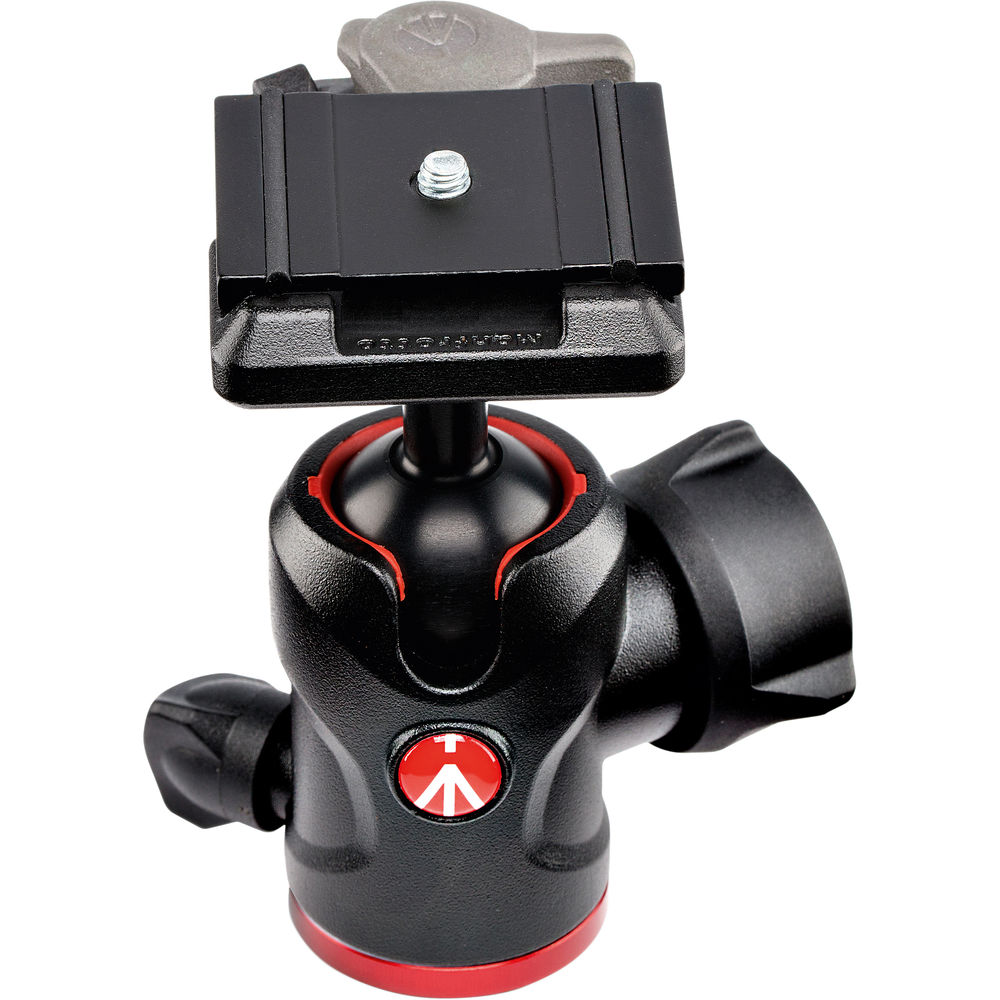

This 494 Center Ball Head with 200PL-PRO Quick Release Plate from Manfrotto features an integrated RC2 quick release cam lock and a 200PL-PRO quick release plate. It features a load capacity of 19.8 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening the head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A recessed dial set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.
494 Center Ball Head
200PL-PRO Quick Release Plate
Compatible with Manfrotto RC2 quick release cam lock and select Arca-type quick release clamps
Head
| Head Type | Ball Head |
| Base Mount | 3/8"-16 Female |
| Camera Mounting Screw | 1/4"-20 Male & 3/8"-16 with Bushing |
| Quick Release Plate Type | Arca-Type, RC2 |
| Friction Control | Yes |
| Independent Pan Lock | Yes |
| Ball Sphere Diameter | 1.26" / 32.0 mm |
| Lateral Tilt | -90° to +40° |
| Vertical Tilt | +40° to -40° |
| Panning Range | 360° |
General
| Load Capacity | 19.8 lb / 9 kg |
| Weight | 10.58 oz / 300 g |
Packaging Info
| Package Weight | 1 lb |
| Box Dimensions (LxWxH) | 5.25 x 4.9 x 3.7" |
