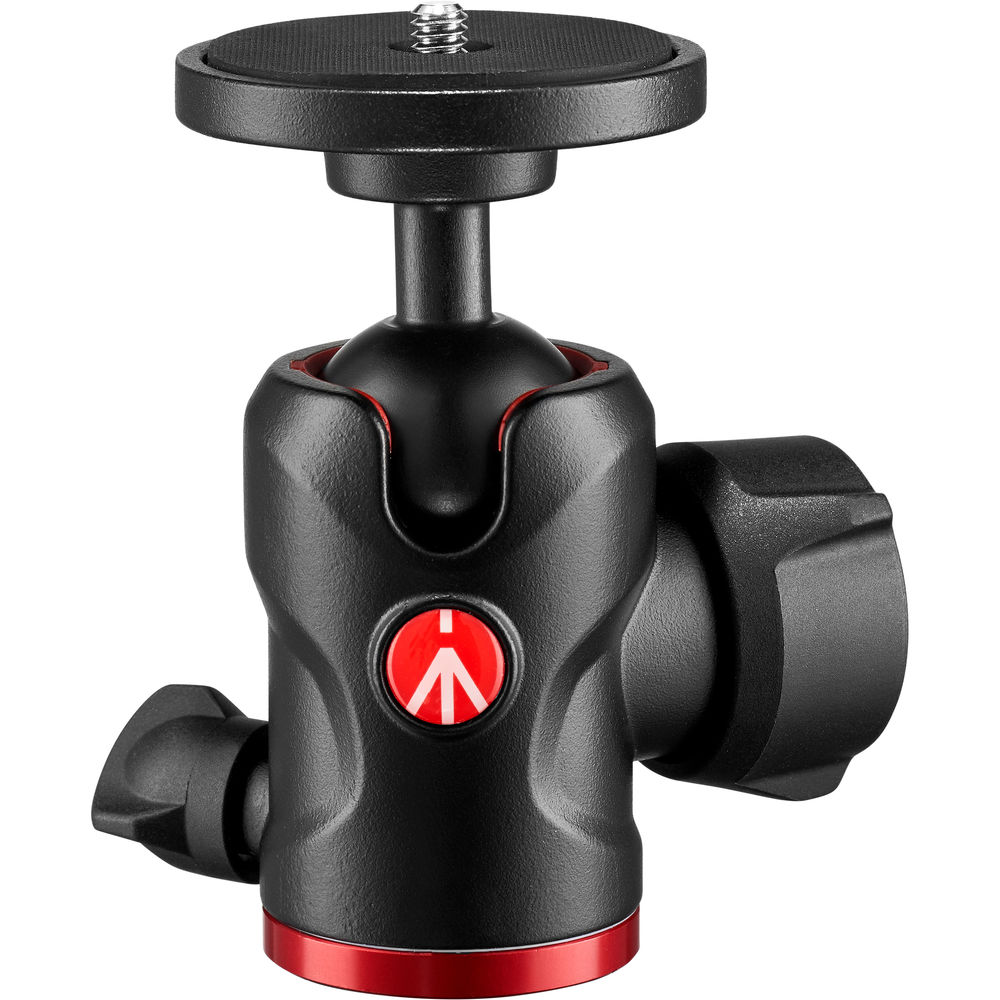

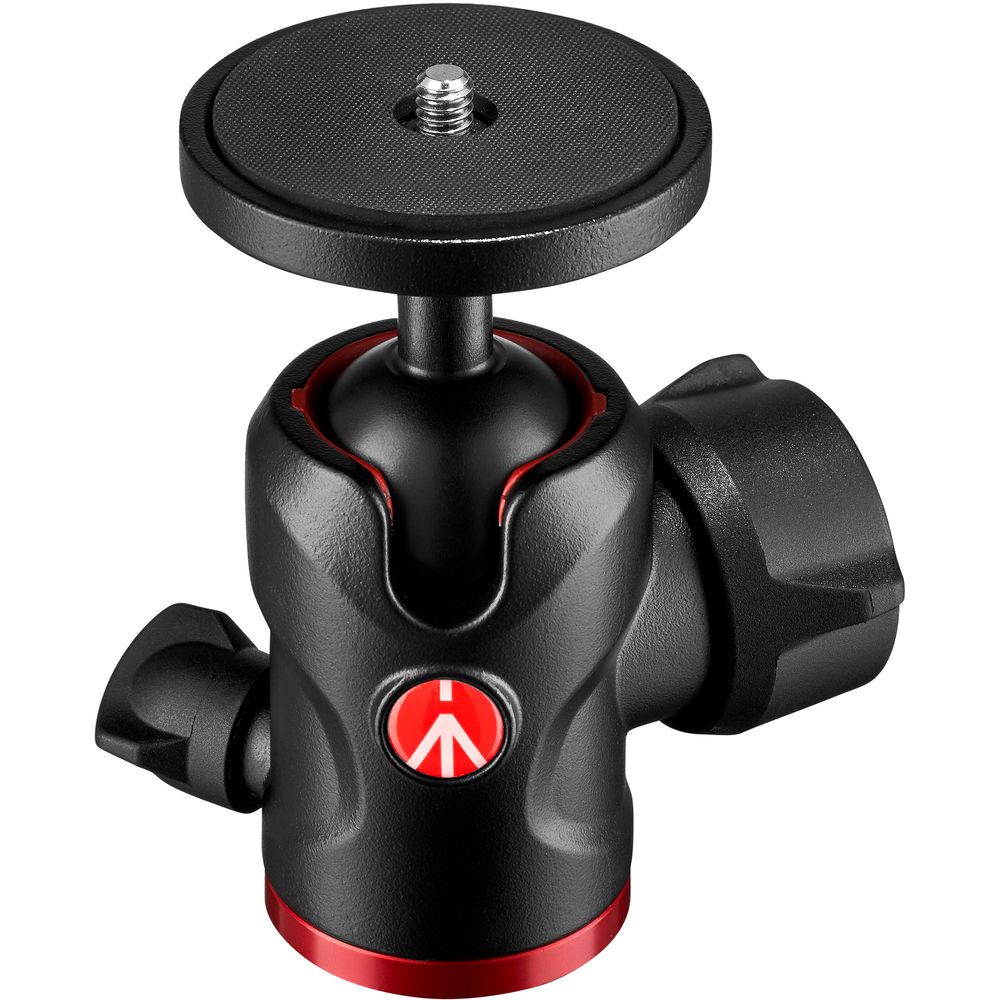

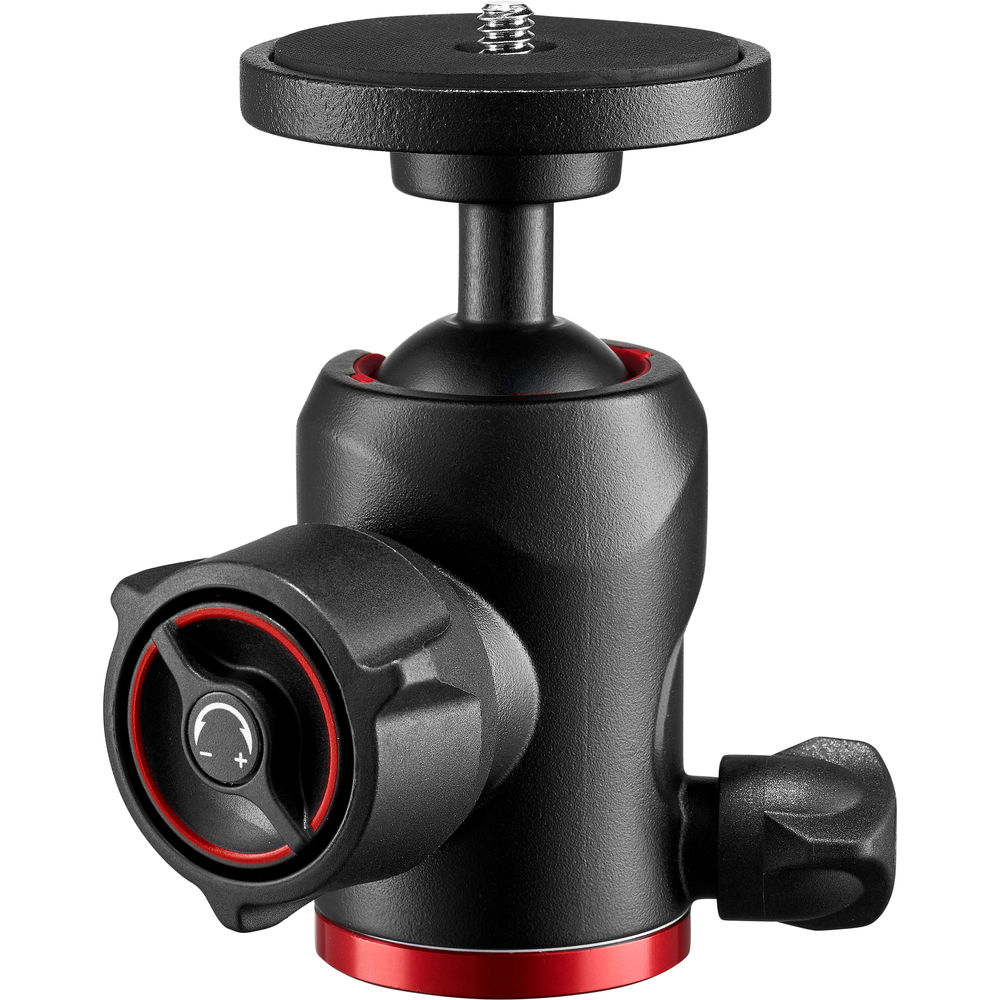

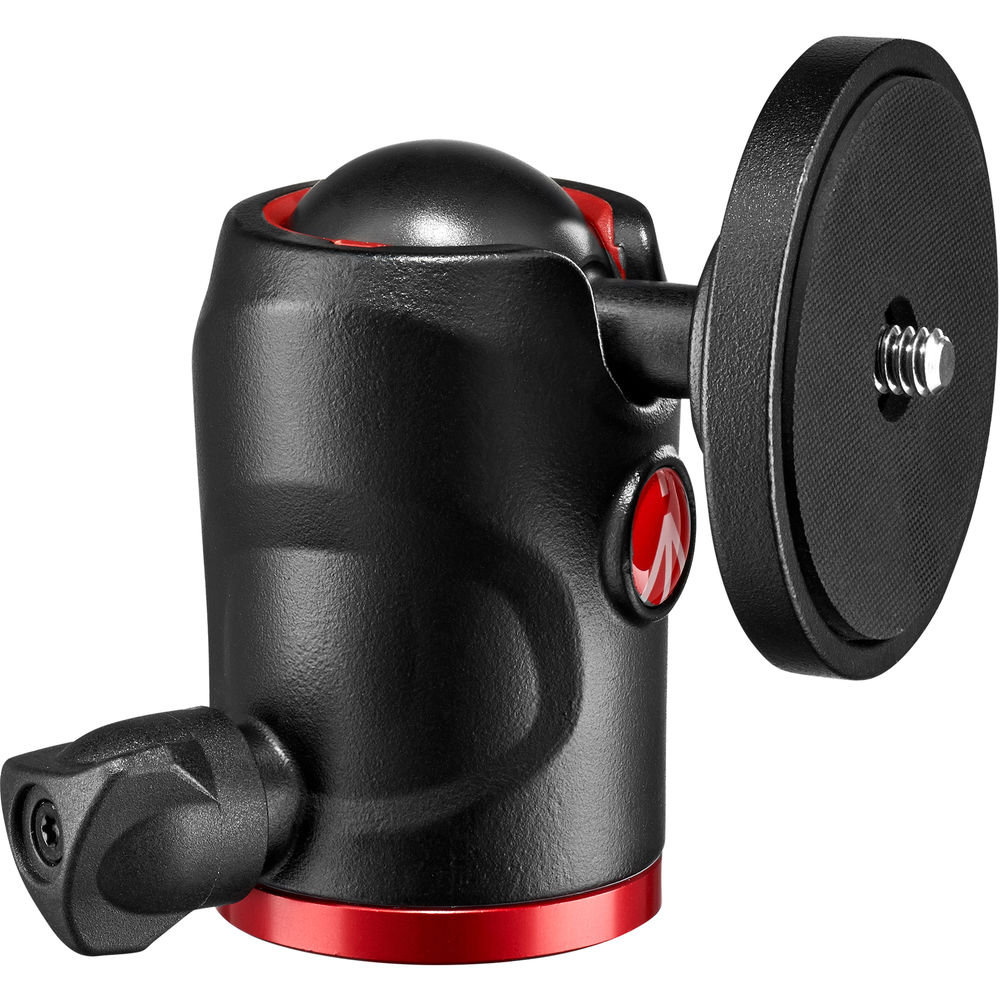

This 494 Center Ball Head with Universal Round Disc Mount from Manfrotto features an integrated universal round disc with 1/4"-20 threaded camera mount. It features a load capacity of 19.8 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening the head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A recessed dial set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.
494 Center Ball Head
Integrated Universal Round Disc Mounting Plate
The integrated round disc mounting plate features a rubberized pad for traction and to prevent marring the camera body finish
Head
| Head Type | Ball Head |
| Base Mount | 3/8"-16 Female |
| Camera Mounting Screw | 1/4"-20 Male |
| Quick Release Plate Type | No Quick Release |
| Friction Control | Yes |
| Independent Pan Lock | Yes |
| Lateral Tilt | -90° to +40° |
| Vertical Tilt | +90° to 0° |
| Panning Range | 360° |
General
| Load Capacity | 19.8 lb / 9 kg |
| Weight | 10.9 oz / 310 g |
Packaging Info
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 5.25 x 4.9 x 3.6" |
