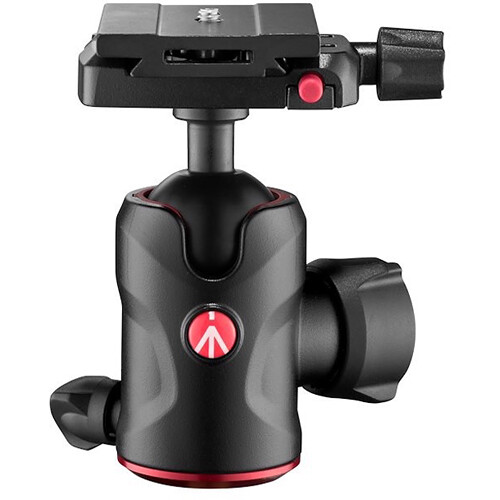

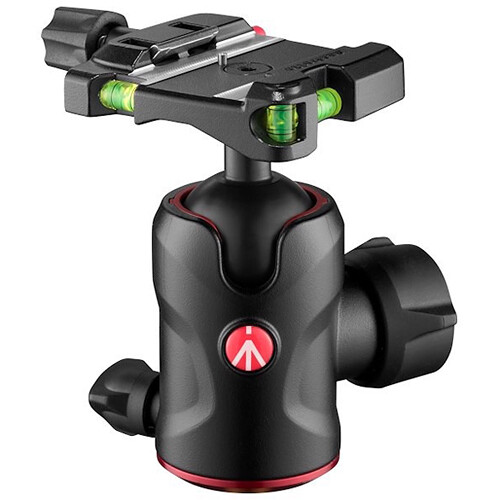

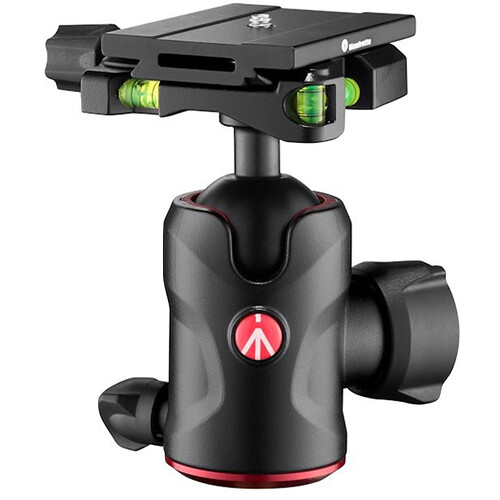

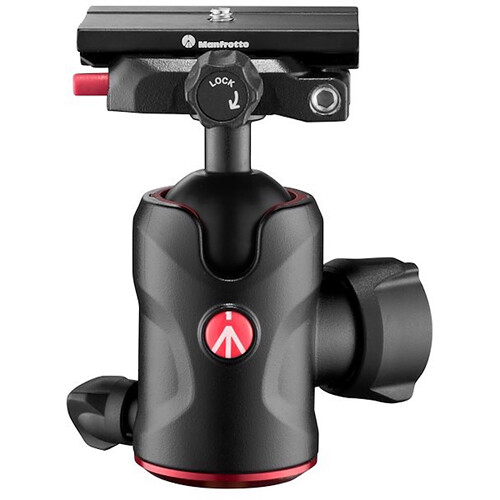

This 496 Center Ball Head with Q6 Arca-Type Quick Release Plate from Manfrotto features an integrated Q6 Arca-type quick release receiver and plate. It features a load capacity of 26.5 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening the head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A recessed dial set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.
496 Center Ball Head
Q6 Arca-Type Quick Release Plate
The Q6 top lock quick system provides a sliding for perfectly balancing a camera on the ball head, and incorporates a with a double-locking system that engages the safety during the balance procedure and to lock it when the right position is achieved.
Head
| Head Type | Ball Head |
| Base Mount | 3/8"-16 Female |
| Camera Mounting Screw | 1/4"-20 Male |
| Quick Release Plate Type | Arca-Type |
| Number of Bubble Levels | 3 |
| Friction Control | Yes |
| Independent Pan Lock | Yes |
| Lateral Tilt | -90° to +40° |
| Vertical Tilt | +90° to 0° |
| Panning Range | 360° |
General
| Load Capacity | 26.5 lb / 12 kg |
| Weight | 1.1 lb / 500 g |
Packaging Info
| Package Weight | 1.38 lb |
| Box Dimensions (LxWxH) | 5.3 x 5.3 x 3.6" |
