The Manfrotto 526, 536K-1 Tripod System pairs the 526-1 Fluid Head with the lightweight 536 Carbon Fiber Tripod legs and a soft carrying bag. The 526-1 Fluid Head features the 357PLV-1 Sliding Plate with secure, two-screw mounting and both 1/4"-20 and 3/8"-16 screws.
Manfrotto 526-1 Professional Fluid Video Head
The 526-1 Professional Fluid Video Head from Manfrotto supports camera rigs up to 35 lb and includes the 357PLV-1 sliding plate with secure, two-screw 1/4"-20 or 3/8"-16 mounting. Controls are placed at the operator's left side, and the rosette-mounted pan arm can be easily removed or replaced if necessary.
This head features fluid drag with three levels each of pan and tilt as well as a zero-drag setting for whip-pans and fast tilts. Counterbalance is continuously variable for weights ranging from 17.5 to 33 lb. The 526-1 mounts via its 100mm ball and can be leveled using the bright bubble.
Features

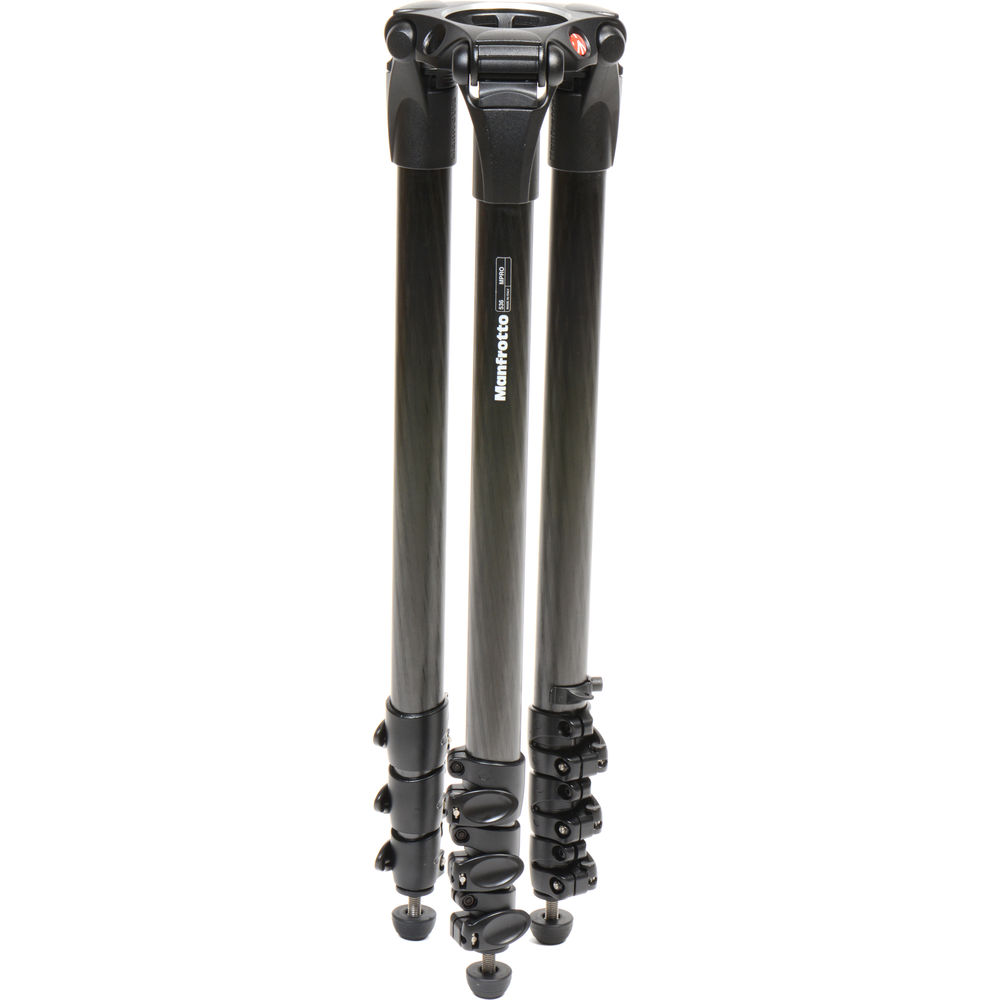

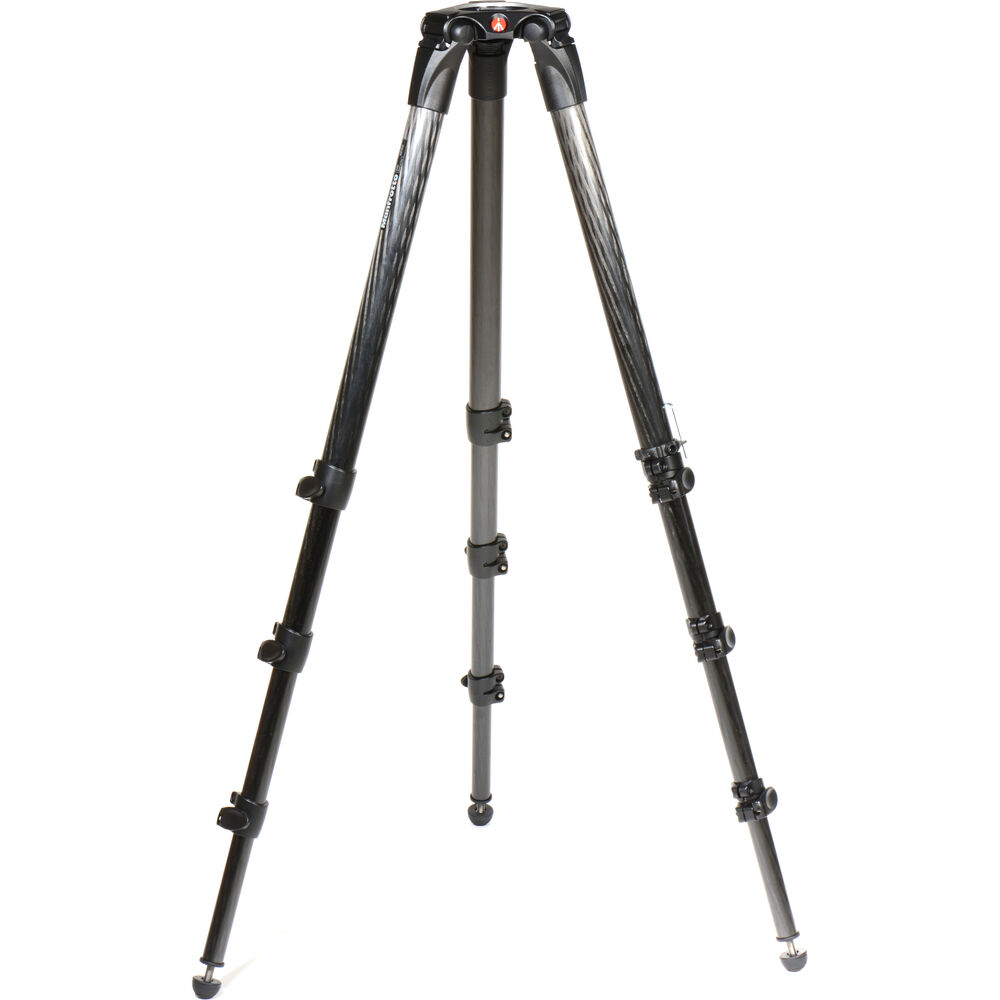

Manfrotto 536 Carbon Fiber Video Tripod
The Manfrotto 536 Carbon Fiber Video Tripod has four sections and a 75/100mm bowl adapter ring for industry standard fluid heads. With carbon fiber tubes and magnesium die castings, the 536 boasts great stability, high load capability, and a light weight.
Materials
Thanks to carbon fiber single tube and magnesium die castings, this tripod provides great stability and load capability in a lightweight, ergonomic, easy-to-use and compact design

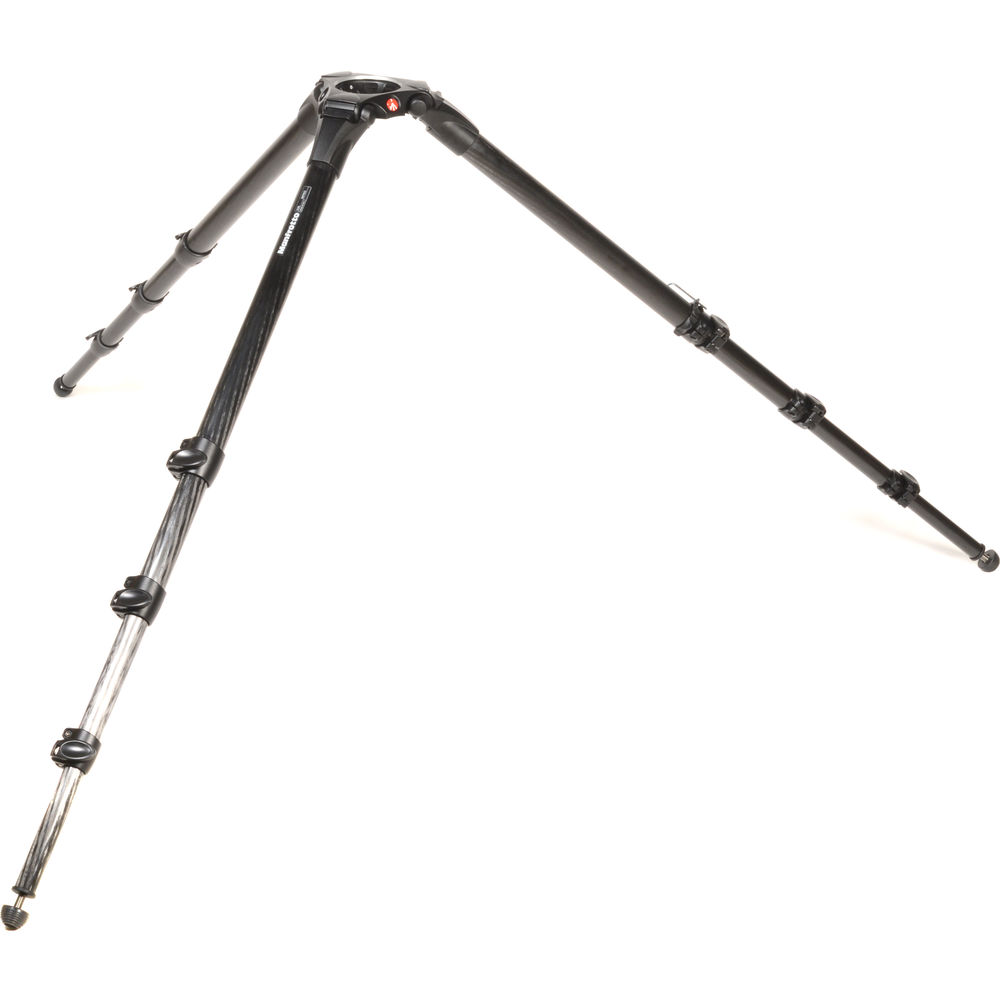

Angle Selector
An angle selector is offered for adjusting the leg angle in an easy and precise way

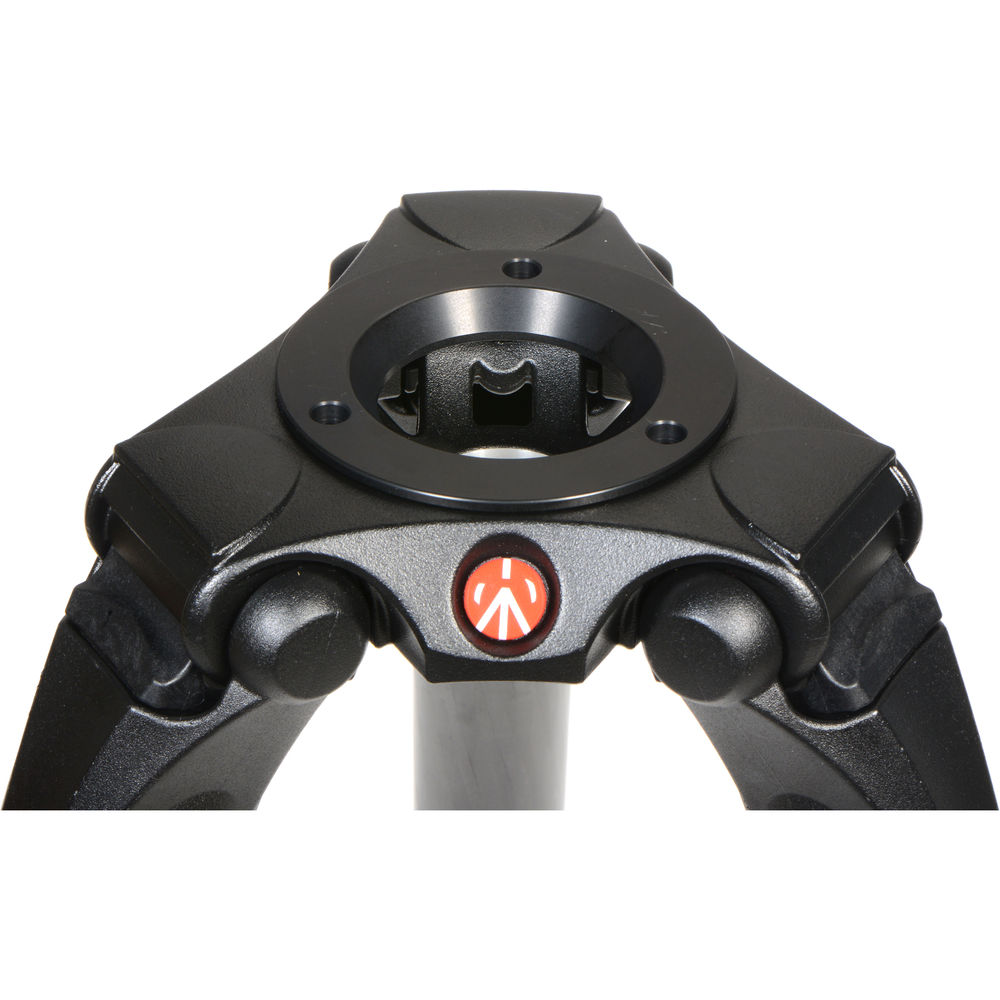

Bowl Adapter Ring
A screw-in bowl adapter ring offers the user the ability to work with 75 or 100mm half ball heads
Key Specs
| Camera Plate Features | Sliding Balance Plate |
| Camera Mounting Screw | 2 x 1/4"-20 Male 2 x 3/8"-16 Male |
| Base Mount | 100 mm Half Ball 3/8"-16 Female |
| Load Capacity | 35 lb / 16 kg |
Camera Plate
| Camera Plate Features | Sliding Balance Plate |
| Camera Mounting Screw | 2 x 1/4"-20 Male 2 x 3/8"-16 Male |
| Safety Lock | Yes |
Head
| Base Mount | 100 mm Half Ball 3/8"-16 Female |
| Counter Balance | Continuous (17.64 to 33.07 lb / 8 to 15 kg) |
| Center of Gravity | 4.92" / 124.97 mm |
| Pan Handle Fittings | 1 x Rosette |
| Bubble Level | 1 |
Pan & Tilt
| Drag Control | Pan: 3-Step Plus 0 Tilt: 3-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +75° to -70° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
General
| Load Capacity | 35 lb / 16 kg |
Packaging Info
| Package Weight | 9.77 lb |
| Box Dimensions (LxWxH) | 15.5 x 10.6 x 9.2" |
Key Specs
| Head Mount Type | 100 mm Bowl 75/100 mm Bowl 75 mm Bowl |
| Maximum Working Height | 80" / 203 cm |
| Minimum Working Height | 10" / 26 cm |
| Closed Length | 28" / 71 cm |
| Materials | Carbon Fiber, Magnesium |

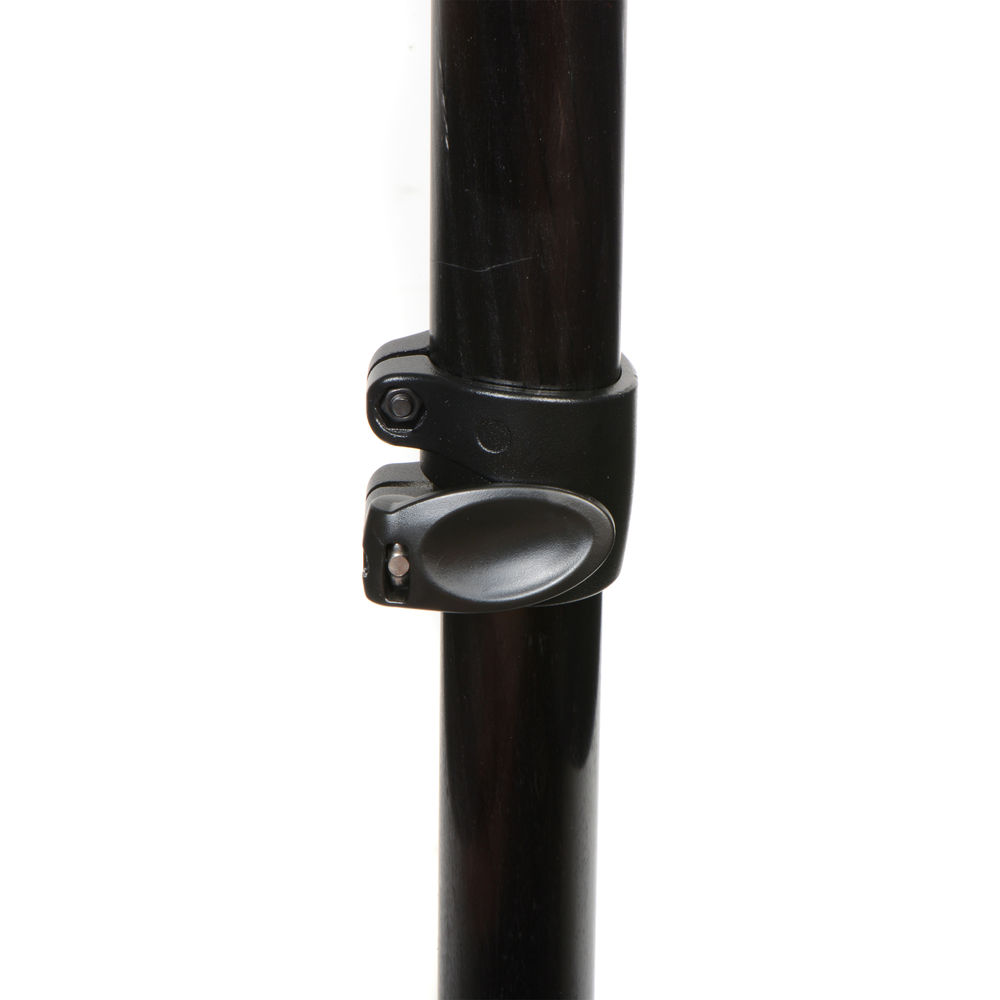

| Leg Lock Type | Flip Lock |
| Leg Sections | 4 |
| Feet Features | Rubber |
General
| Head Mount Type | 100 mm Bowl 75/100 mm Bowl 75 mm Bowl |
| Maximum Working Height | 80" / 203 cm |
| Minimum Working Height | 10" / 26 cm |
| Closed Length | 28" / 71 cm |
| Materials | Carbon Fiber, Magnesium |
| Weight | 7 lb / 3.25 kg |
Legs
| Leg Lock Type | Flip Lock |
| Leg Positions | 3 Positions |
| Independent Leg Spread | Yes |
| Leg Sections | 4 |
| Leg Diameter | 1.5" / 39.2 mm |
| Bubble Level | No |
| Feet Features | Rubber |
Packaging Info
| Package Weight | 9.8 lb |
| Box Dimensions (LxWxH) | 31 x 8.8 x 8" |
