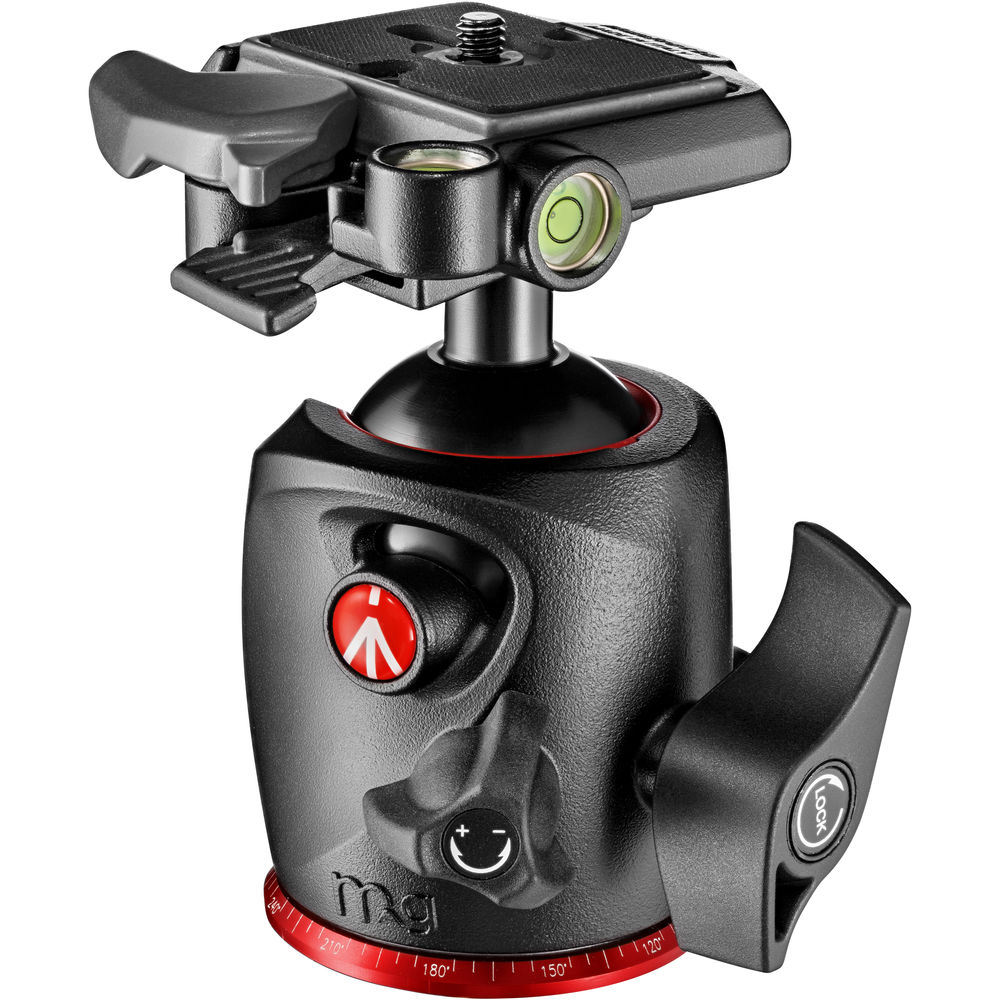

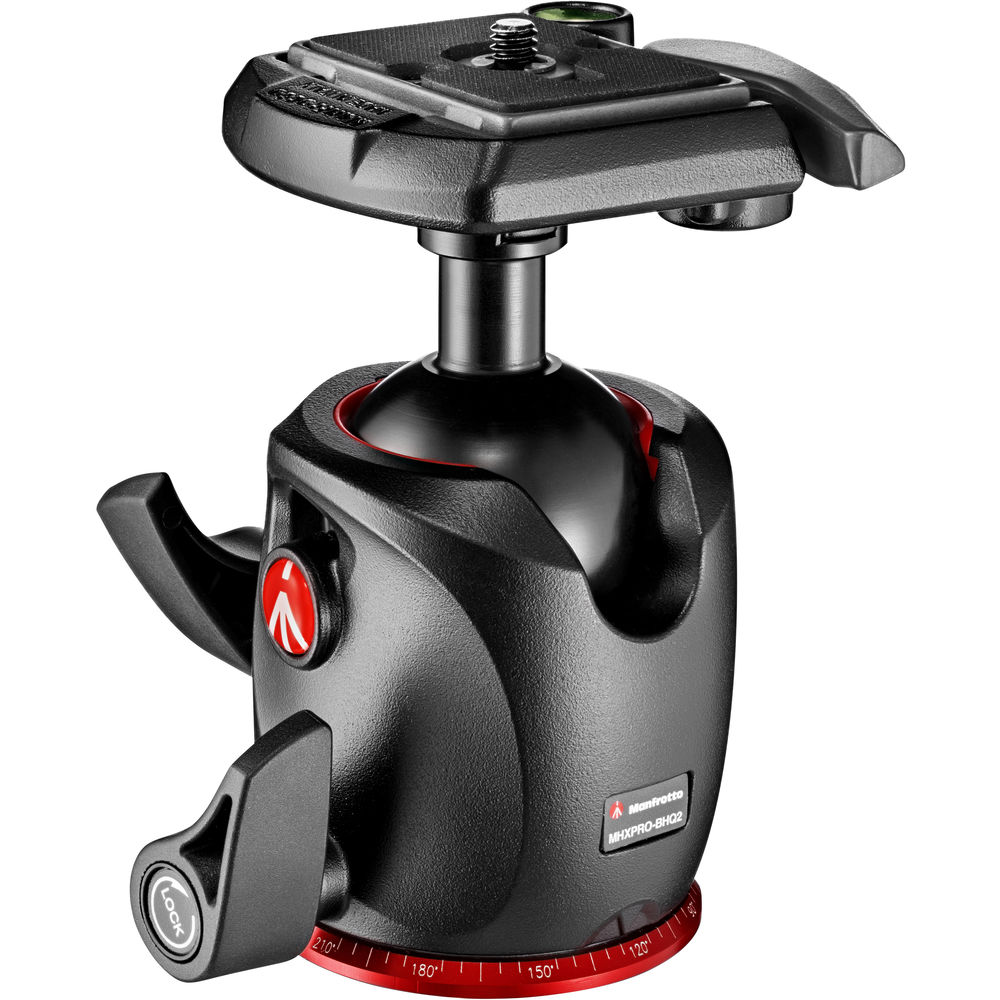

This XPRO Magnesium Ball Head from Manfrotto features an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent the 200PL-14, or another compatible quick release plate from accidentally disconnecting.

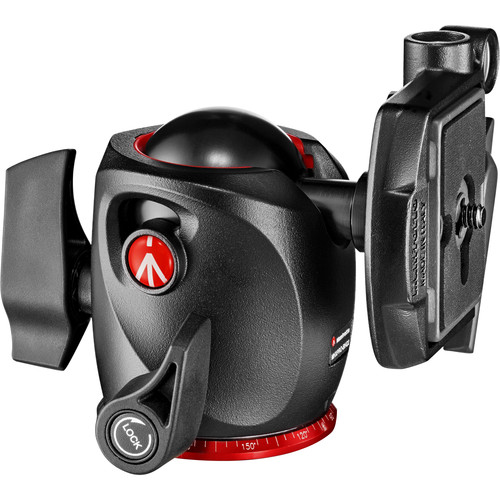

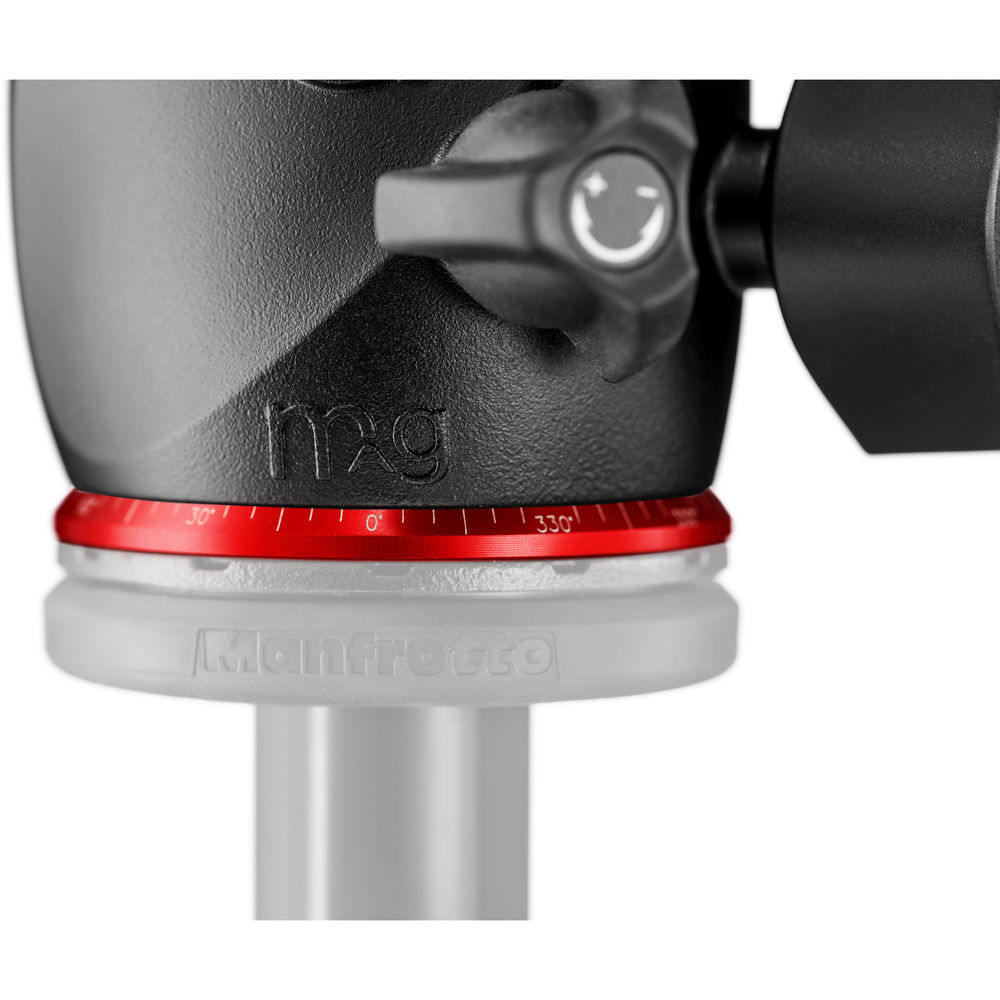

The XPRO Magnesium Ball Head with 200PL-14 Quick Release Plate has a load capacity of 33.1 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening this XPRO Magnesium Ball Head's primary locking knob, its ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Toward the ball head's base is a secondary locking knob that controls the ability to rotate the head 360°. An additional knob opposite the secondary locking knob can be rotated to apply tension control to the ball-and-socket joint's movements.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-14 quick release plate which measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface.
XPRO Magnesium Ball Head
200PL-14 Quick Release Plate
Head
| Head Type | Ball Head |
| Base Mount | 3/8"-16 Female |
| Camera Mounting Screw | 1/4"-20 Male |
| Quick Release Plate Type | RC2 |
| Number of Bubble Levels | 2 |
| Friction Control | Yes |
| Independent Pan Lock | Yes |
| Ball Sphere Diameter | 1.77" / 45.0 mm |
| Lateral Tilt | -90° to +40° |
| Vertical Tilt | +40° to -40° |
| Panning Range | 360° |
General
| Load Capacity | 33.1 lb / 15 kg |
| Weight | 17.6 oz / 0.5 kg |
Packaging Info
| Package Weight | 1.4 lb |
| Box Dimensions (LxWxH) | 5.3 x 4.9 x 3.65" |
