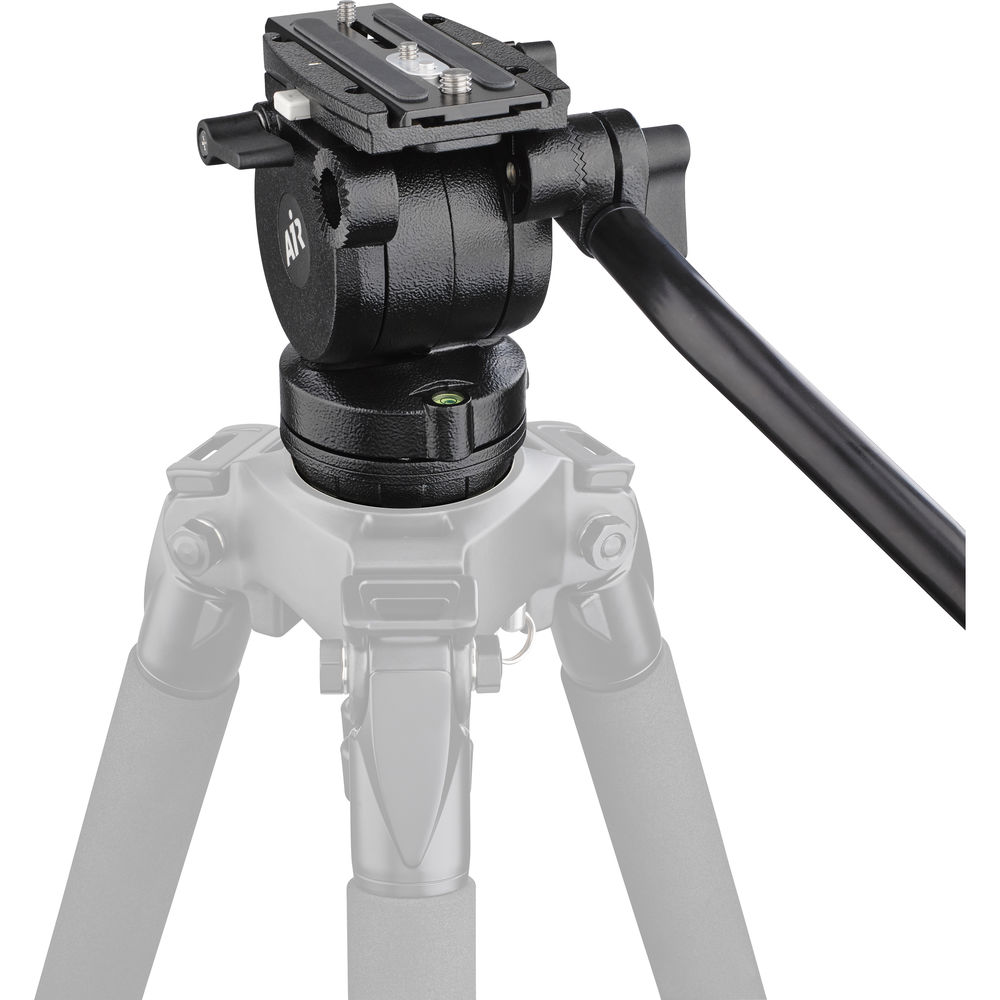

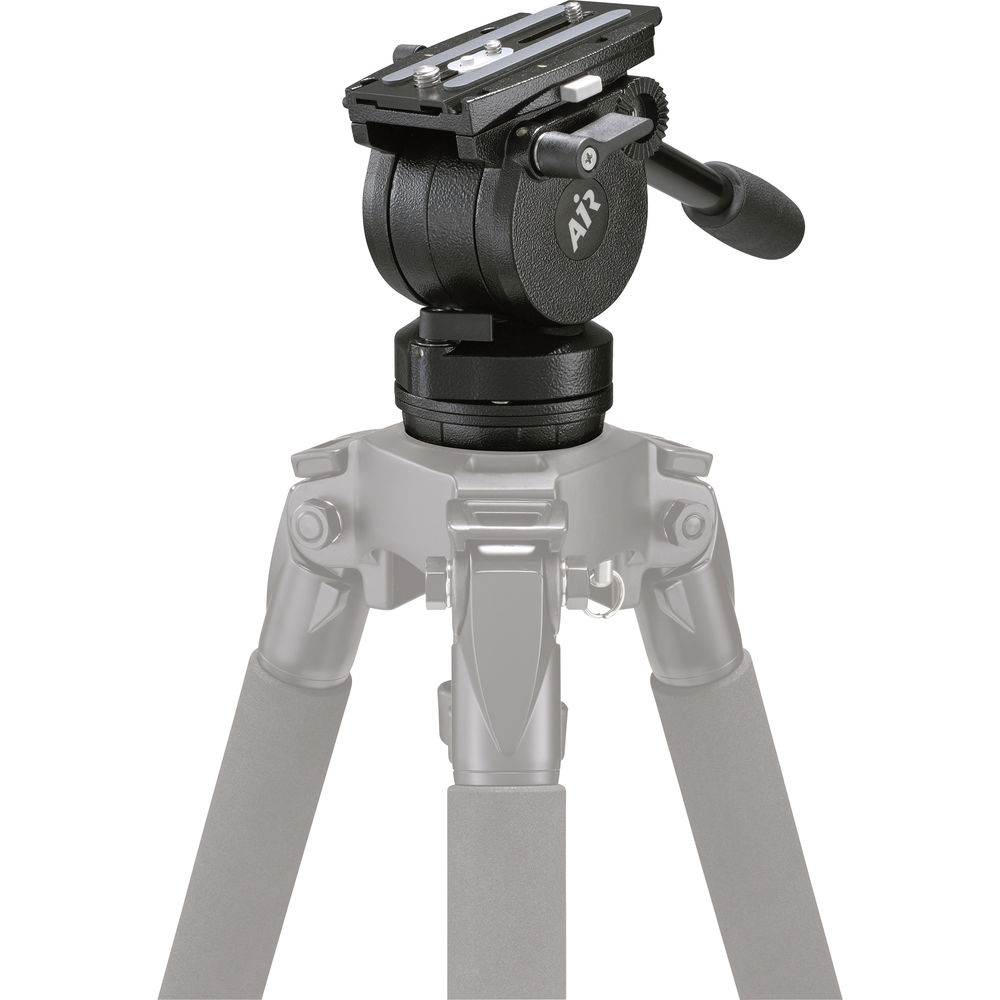

The Miller AIR Fluid Head is a lightweight fluid head for the videographer on the go. Designed for cameras between 4.4 and 11 pounds, this die-cast aluminum alloy and rigid composite polymers head is dust and moisture sealed for smooth operation in harsh environments. The sliding camera plate allows 2.36" of balance adjustment, has screw slots, and it comes with a 1/4"-20 and 3/8"-16 camera tie-down screw as well as a combination 1/4-20 screw with locating pin.
Two-steps of counterbalance help you tune the AIR Fluid Head to match the needs of the shot. The fixed pan and tilt drag remains consistent throughout the head's operating temperature range of -40 to 149°F, and each axis has its own independent lock. Featuring a 75mm half-ball leveling base you can use this head with 75mm bowl base tripod legs, or remove the ball leveling stud for flat-base mounting.
Camera Plate
| Camera Plate Features | Quick Release, Sliding Balance Plate |
| Camera Plate Type | Miller 1205 |
| Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin 1 x 1/4"-20 Male 1 x 3/8"-16 Male |
| Balance Plate Sliding Range | 23.6" / 60 cm |
| Safety Lock | Yes |
| Plate Dimensions | 4.7 x 1.9 x 0.3" / 120 x 48.5 x 8 mm |
Head
| Base Mount | 3/8"-16 Female 75 mm Half Ball |
| Camera Platform Adjustment | No |
| Counter Balance | Incremental 2-Step |
| Included Pan Handle Length | 15" / 390 mm |
| Bubble Level | 1 |
Pan & Tilt
| Drag Control | Pan: Fixed |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
General
| Load Capacity | 4.4 to 11 lb / 2 to 5 kg |
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Weight | 3.3 lb / 1.5 kg |
Packaging Info
| Package Weight | 5.8 lb |
| Box Dimensions (LxWxH) | 14.3 x 10.4 x 8.7" |
