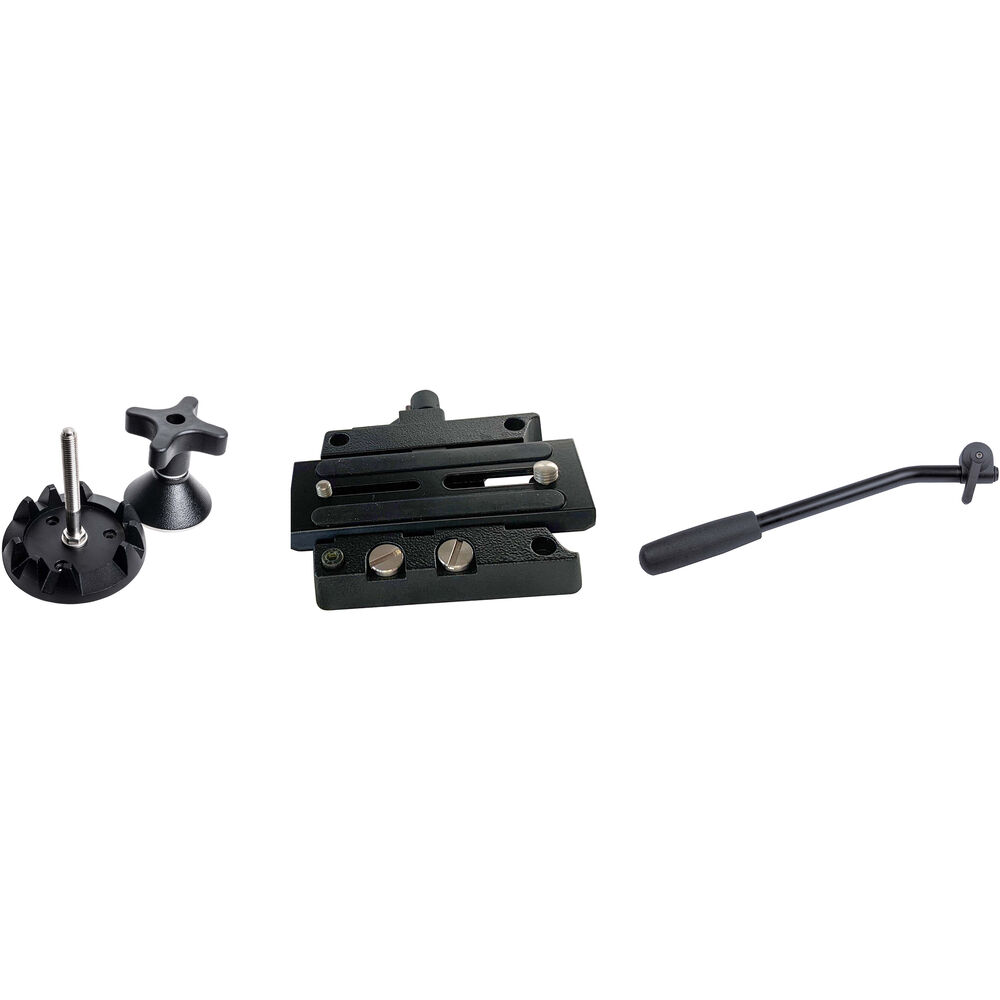

Set up your Miller ArtX Naked video head for use with a 100mm bowl tripod with the components in the ArtX 100 Miller Starter Kit. This set includes a baseplate assembly with a 1205 quick release camera plate, a D100 claw ball adapter, and a 15.4" fixed pan handle. Read more about the individual kit items below.
Miller D100 Claw Ball Level Adapter for ArrowFX Fluid Head and 100mm Bowl
Mount your flat-based ArrowFX fluid head onto a tripod with a 100mm bowl using this D100 Claw Ball Level Adapter from Miller. This durable metal alloy adapter attaches to the flat base of the ArrowFX head or other compatible head via three M5 threads or four 3/8" universal mounting holes. The adapter is secured onto the tripod using the long center screw and a D100 clamp assembly that tightens with a locking nut. The center screw is removable if you require a different screw length for your tripod.
Miller Baseplate Assembly (2.4" Sliding Range)
Outfit your Miller video head with a quick release system using this Baseplate Assembly. The baseplate assembly is compatible with Miller CompassX and ArtX fluid heads and comes with a 1205 camera plate. This side-loading baseplate assembly features 2.4" of sliding range, nonslip pads, and storage for the included spare 1/4"-20 and 3/8"-16 camera screws.
Compatibility
Miller CompassX and ArtX video fluid heads
Miller Pan Handle for Compass15 and Compass20 Fluid Heads
The Miller Pan Handle for Compass15 and Compass20 Fluid Heads is a 16mm fixed-length pan arm. The main tube is black-anodized aluminum alloy and features a comfortable rubber grip.
| Material of Construction | Metal Alloy |
| Mounting | Base: 100 mm Bowl Head: 3 x M5 Threads and 4 x 3/8" Holes |
| Dimensions | 3.9 x 1.1" / 100 x 27 mm |
| Weight | 9.6 oz / 272 g |
Packaging Info
| Package Weight | 1.125 lb |
| Box Dimensions (LxWxH) | 7.2 x 5.5 x 5.4" |
| Travel | 2.4" / 60 mm |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
Legs
| Material | Anodized aluminum alloy and rubber |
| Length | 15.4" (39.0 cm) |
| Weight | 0.6 lbs (285 g) |
Packaging Info
| Package Weight | 1.1 lb |
| Box Dimensions (LxWxH) | 15.75 x 3 x 2.15" |
