Categories: Tripods, Supports & Rigs

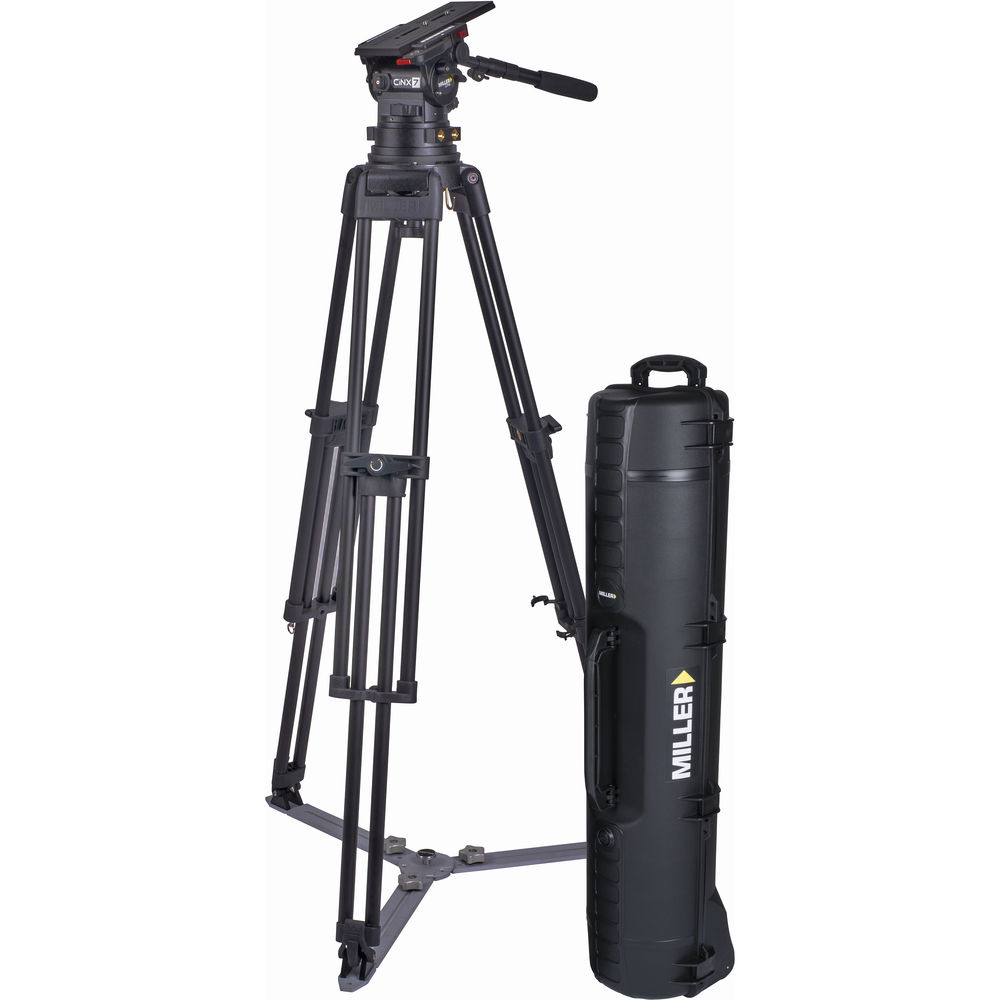

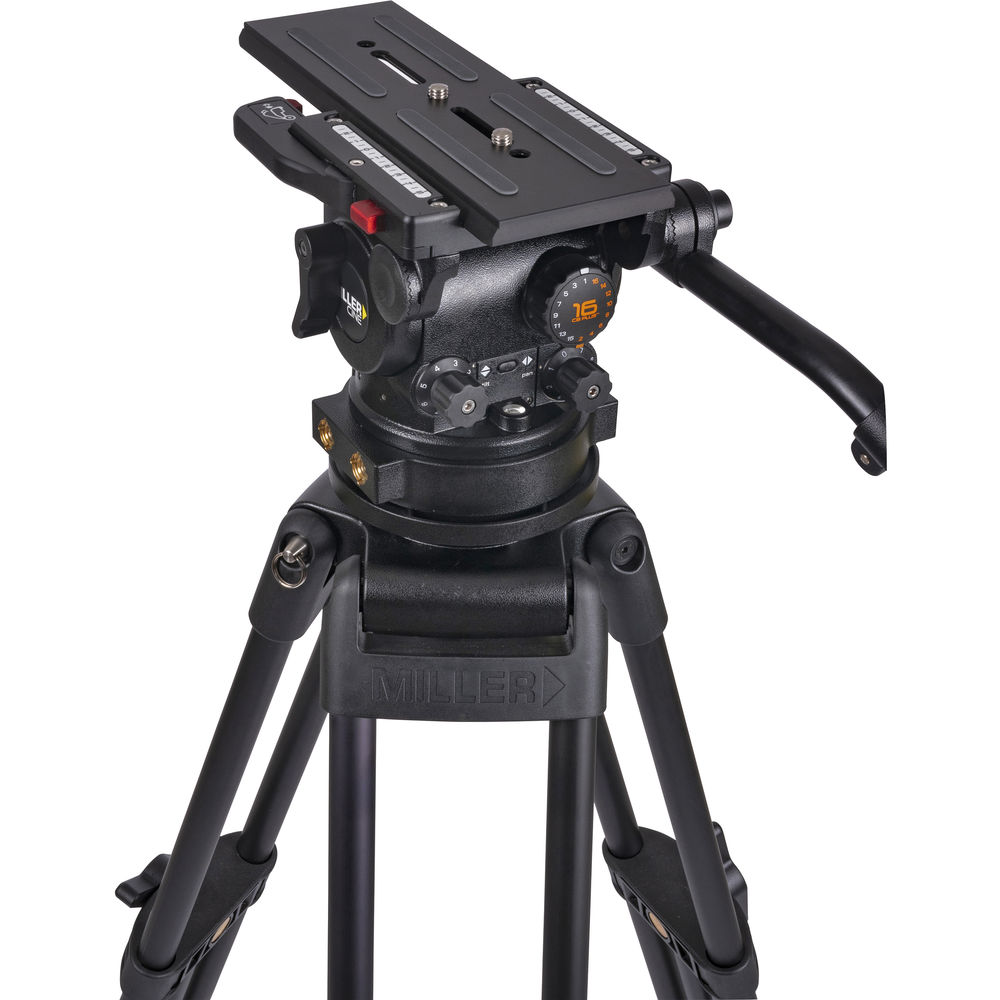

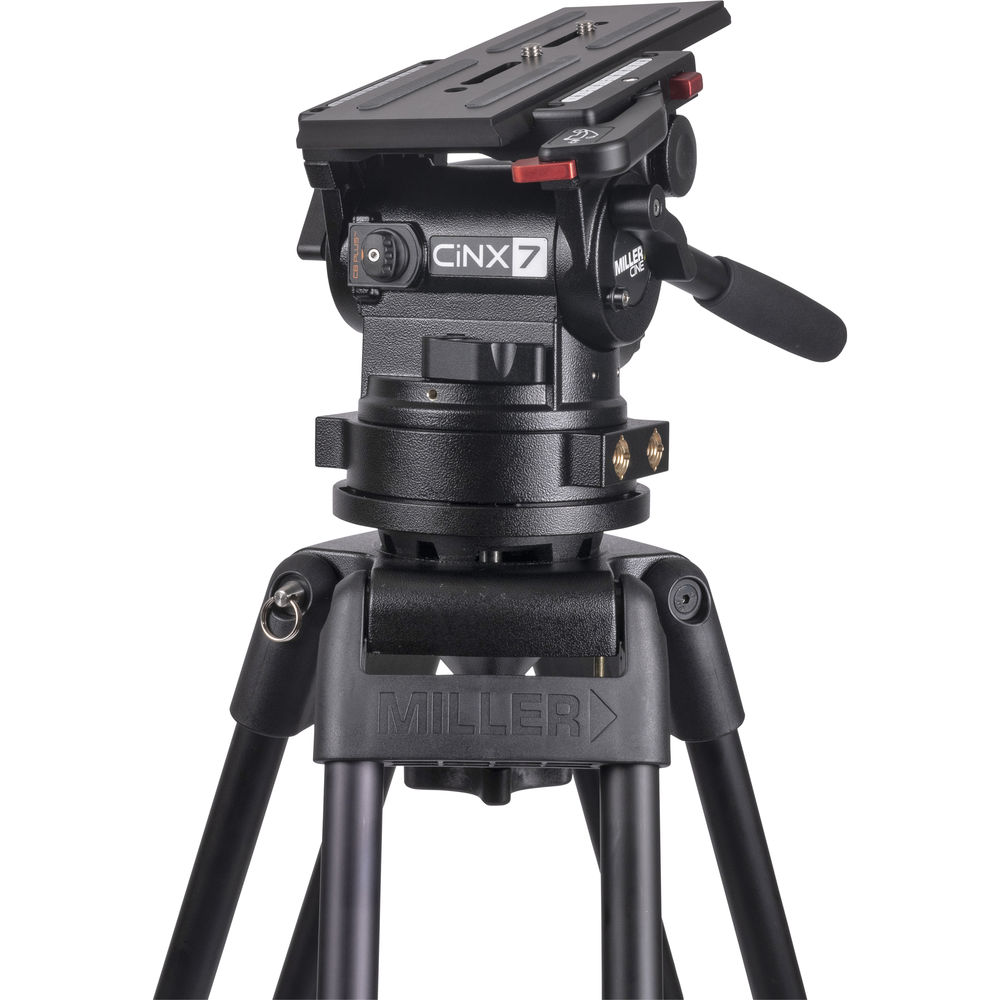

This Miller CiNX 7 and HDC 150 1-Stage Tripod System features the CiNX 7 fluid head, 150mm bowl tripod legs, ground spreader, and a wheeled carry case. The tripod legs have 24mm tubing and integrated spiked feet, and are optimized for a ground spreader.
The CiNX 7 supports 13.2 to 55 lb loads and offers 16 steps of counterbalance and 7 + 0 steps of pan and tilt drag. It natively features a flat base with a 3/8"-16 thread, and this bundle adds a 150mm bowl claw adapter. This head is designed to achieve ultra-soft starts and stops and balanced diagonal transitions. A sideload camera plate system allows you to efficiently mount and remove your camera.
With the head and ground spreader attached, the tripod offers a height range of 36.5 to 68.5" in one stage of adjustment.

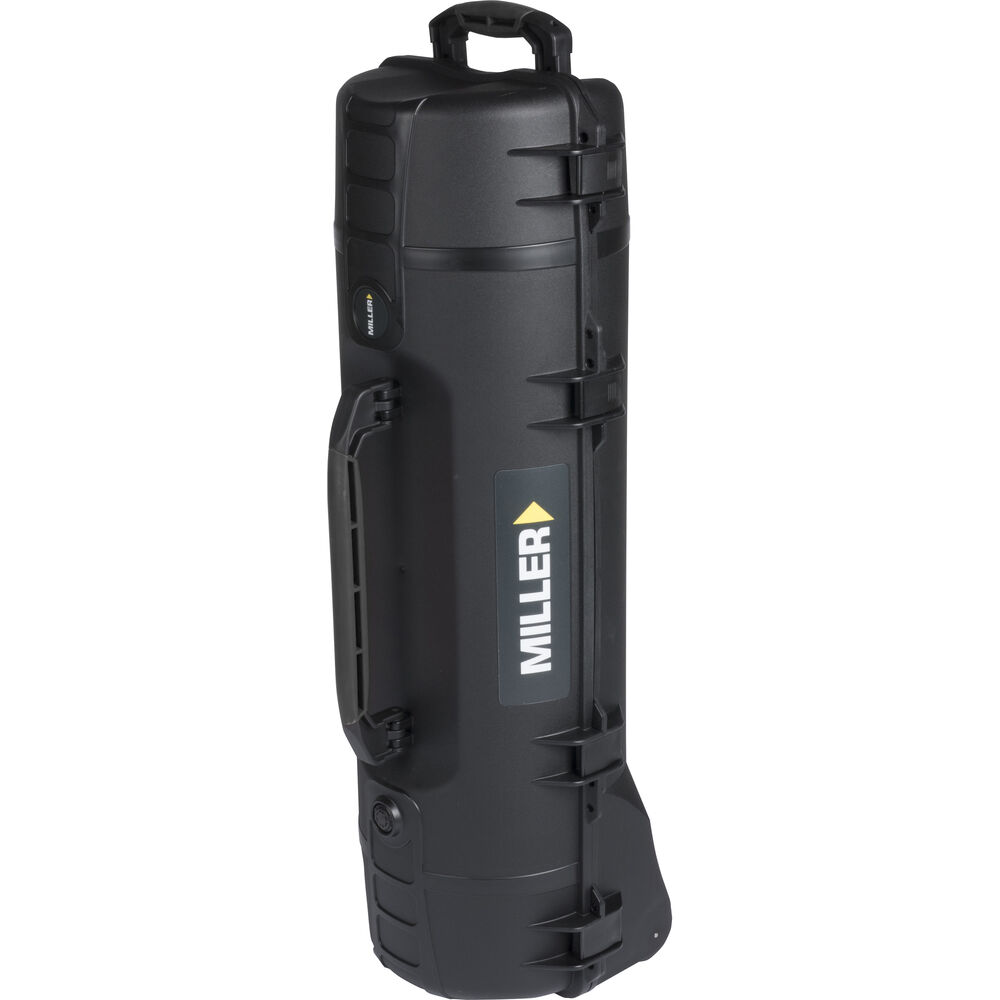

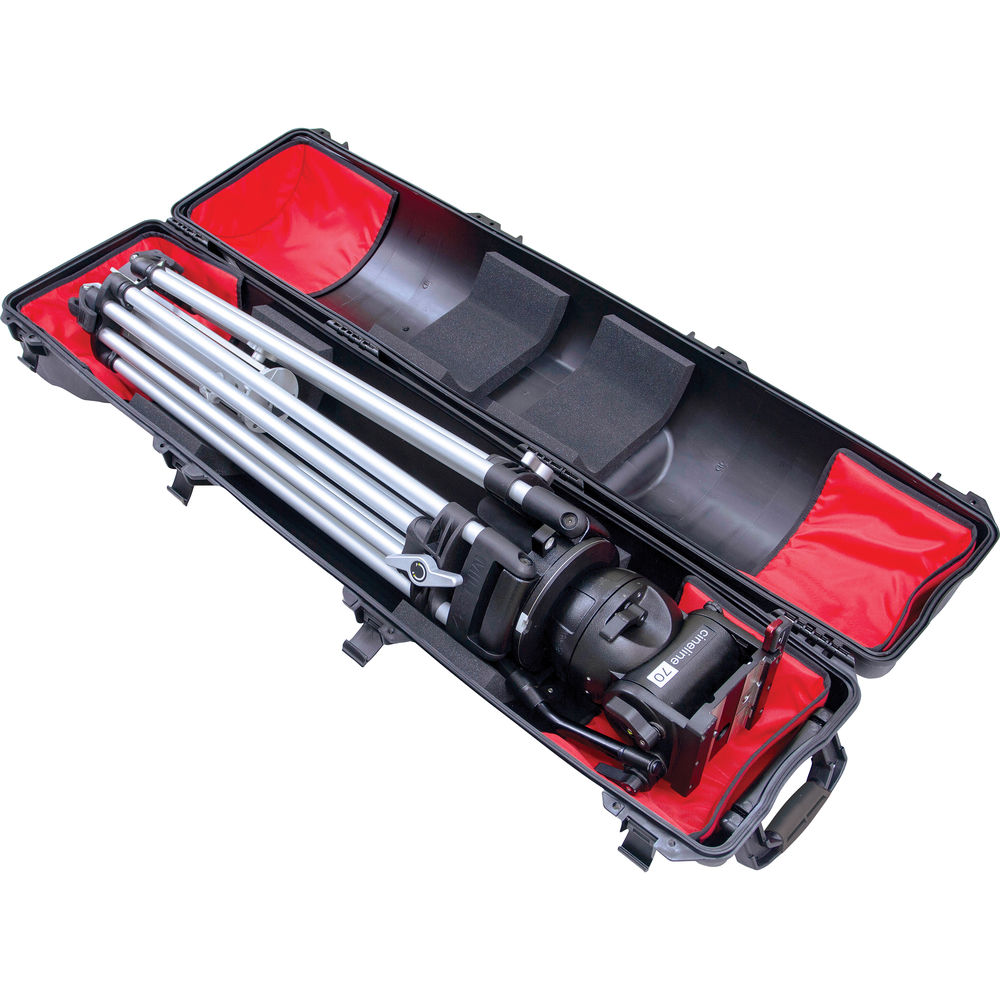

The wheeled case is designed with high-pressure resin, polymer, and aluminum materials and has a top handle, side handle, and bottom wheels. It's IP67 watertight and resistant to dust, moisture, acids, and sand. Other features include an automatic air pressure valve and inner padding

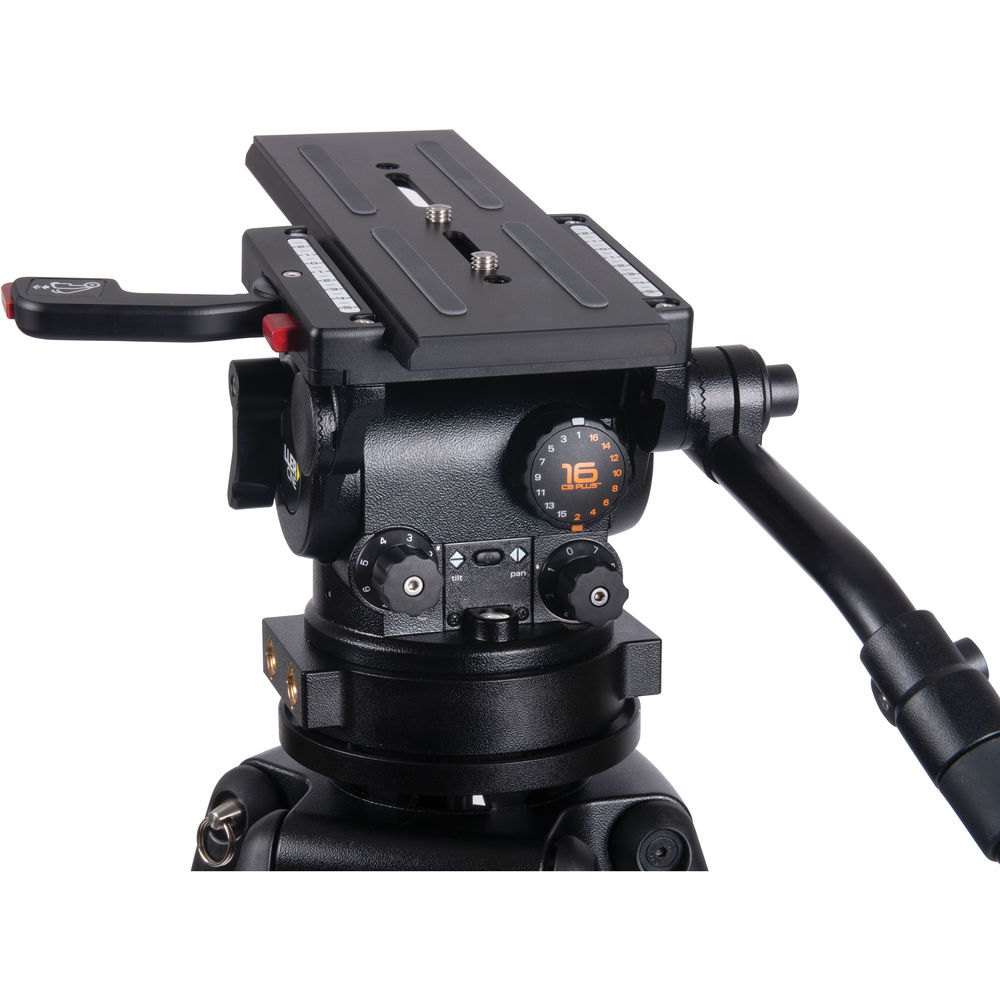

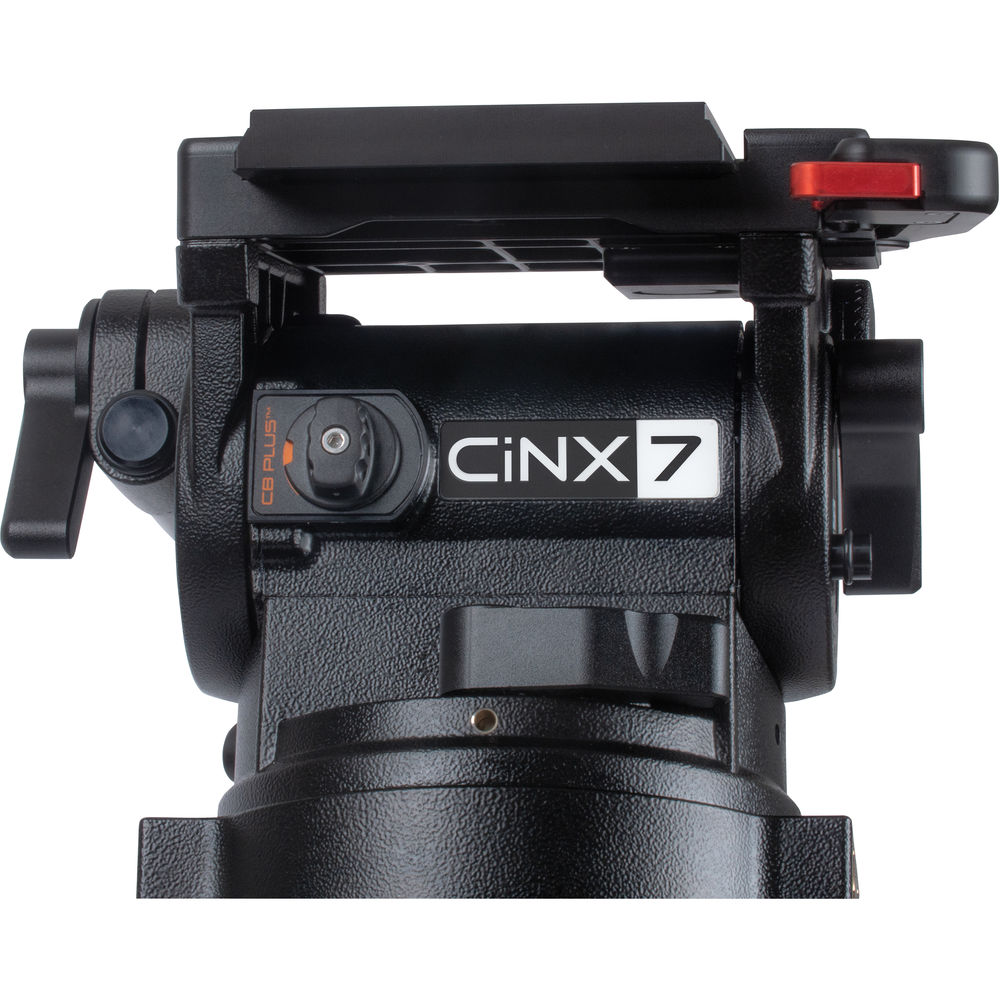

CiNX 7 Fluid Head Features
Camera Plate
| Camera Plate Features | Quick Release |
| Camera Plate Type | Sideload Plate |
| Camera Mounting Screw | 2 x 3/8"-16 Male |
| Balance Plate Sliding Range | 5.91" / 150 mm |
| Safety Lock | Yes |
| Plate Dimensions | 10.24 x 3.76 x 0.46" / 260 x 95.5 x 11.7 mm |
Head
| Base Mount | 150 mm Half Ball 3/8"-16 Female |
| Counter Balance | Incremental 15-Step Plus 0 |
| Pan Handle Fittings | 2 x Rosette |
| Bubble Level | 1 x Illuminated |
| Accessory Mounting | 4 x ARRI Accessory Mount Female |
Pan & Tilt
| Drag Control | Pan: Stepped 7-Step Plus 0 Tilt: Stepped 7-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
General
| Load Capacity | 13.2 to 55 lb / 5.99 to 24.95 kg |
| Maximum Working Height | 68.54" / 174.1 cm |
| Minimum Working Height | 36.57" / 92.9 cm |
| Closed Length | 44.8" / 113.8 cm |
| Materials | Aluminum |
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Weight | 27.8 lb / 12.61 kg |
Legs
| Leg Lock Type | Rotating Locking Lever |
| Leg Sections | 2 |
| Leg Diameter | 0.9" / 24 mm (Maximum) |
| Feet Features | Spiked |

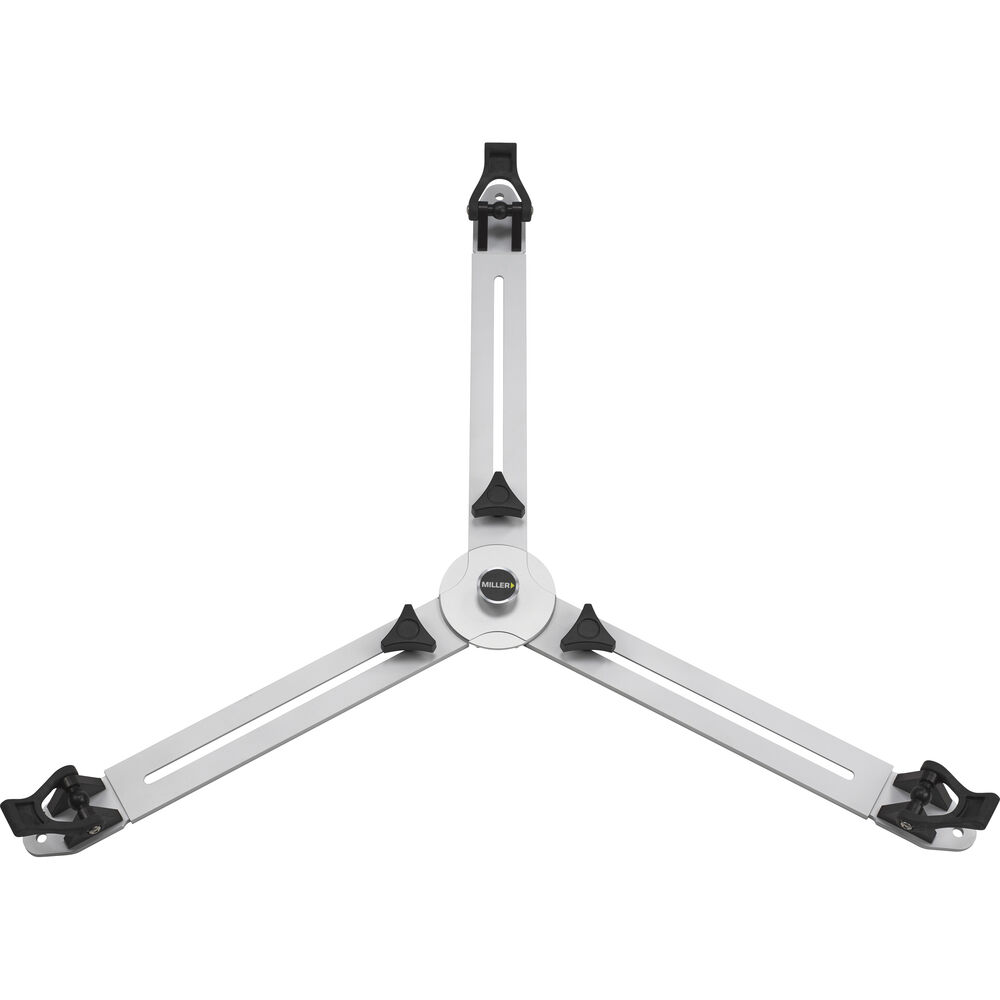

| Spreader | Ground (Included) |
