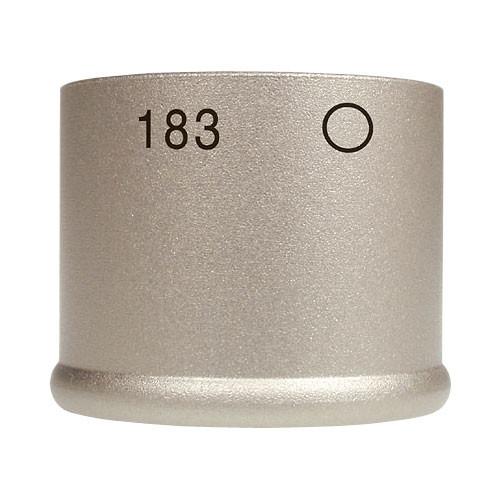

The Neumann KK183 is the omnidirectional capsule for the KM series digital microphone. The omnidirectional polar pattern features a uniform frequency response and pick up area at the frontal and off-axis sections of the capsule. The KK183 is user installable and features a non-reflective finish.
| Transducer | Pressure Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz - 20 kHz |
| Dynamic Range (Typical) | 124 dB |
| Signal-to-Noise Ratio | Signal-to-noise ratio, A-weighted: 81dB, 81dB, 79dB according to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS |
| Maximum Input Sound Level | 137 dB @ 0 dBFS |
| Power Requirements | Power supply (phantom power complying with AES 42)Supply voltage range: +7V to +10.5V |
| Output Impedance | 50 Ohms |
| Output Connectors | Not Applicable |
| Pad | None |
| Low Frequency Roll-Off | None |
| Dimensions | Not Applicable |
| Weight | Not Applicable |
