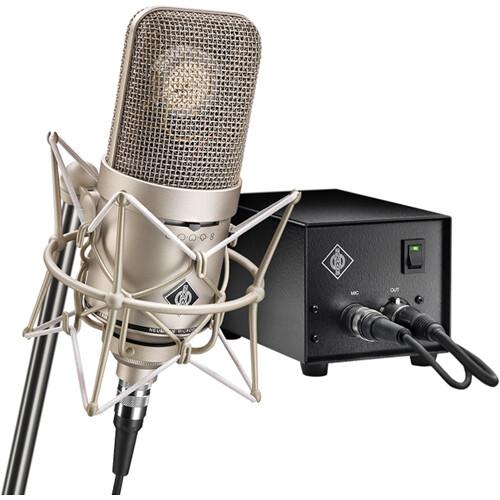

Neumann M 149 Multi-Pattern Large-Diaphragm Tube Condenser Microphone (UK Set, 230V)

Name: Neumann M 149 Multi-Pattern Large-Diaphragm Tube Condenser Microphone (UK Set, 230V)
Brand: NEUMANN
SKU: SF-2443-RYIS
Availability: InStock

Brand: NEUMANN

MFR: 8403

SKU: SF-2443-RYIS

Price Available Upon Request

For General Studio Use
Large-Diaphragm Condenser
9 Polar Patterns
Exceptional Signal Reproduction
Transformerless Tube Output Circuit
7-Step High-Pass Filter
Low-Frequency Roll-Off Switch
Shockmounted Capsule
EA 170 Shockmount
230V UK Power Supply with 8-Pin Cable

Items Included

Neumann M 149 Multi-Pattern Large-Diaphragm Tube Condenser Microphone (UK Set, 230V)
N 149 A Power Supply (UK, 230V)
8-Pin Microphone Connecting Cable

New Item - Coming Soon

Request Now

Categories: Microphones

The M 149 Multi-Pattern Large-Diaphragm Tube Condenser Microphone (UK Set) from Neumann is a variable dual-diaphragm microphone. The K 49 capsule, well known from the legendary U 47 and M 49 microphones, is followed by a tube, functioning as an impedance converter. In contrast to earlier concepts utilizing a transformer, the tube is complemented with a transformerless output circuit design. The M 149 Tube can thus feed long microphone cables without any coloration. This UK Set configuration includes a 230V power supply with an 8-pin connecting cable and a plug designed for use in the United Kingdom. A shockmount is also provided.

Two slide switches are located below the large, acoustically open head grille. The switch at the front allows selection one of nine directional patterns. The slide switch at the rear operates a seven-step high-pass filter, allowing very fine adjustment of the cut-off frequency.

Transformerless Tube Output Circuitry

Transformerless output circuit, triode tube, and integrated amplifier provide a signal output stage featuring very-low self-noise and distortion. The final output stage is an integrated amplifier that provides a very-high output signal and the frequency response curve is unaffected by high, transient signal levels resulting in warm, transparent signal reproduction.

Exceptional Signal Reproduction

Utilizing the legendary K 49 capsule—well known from the legendary U 47 and M 49 microphones—as well as a modern tube and high-quality amplifier output stage, the M 149 Tube delivers exceptional signal character and response. A frequency response of 20 Hz to 20 kHz and SPL rating of 136 dB < 5% THD result in pristine audio reproduction at various dynamic range.

9 Selectable Polar Patterns

Omnidirectional, wide angle cardioid, cardioid, hypercardioid, and figure 8 polar patterns are provided. Intermediate positions of each are located in between the pattern designations.

Low-Frequency Roll-Off Switch

A 7-position, low-frequency roll-off switch is located at the rear of the microphone. It selects a high-pass filter, advancing in half-octave steps between 20 Hz and 160 Hz (-3 dB)

Shock Mounted Capsule

The capsule is mounted elastically inside the head to minimize structure borne noise.

EA 170 Shockmount

The elastic EA 170 microphone shockmount is included and even further minimizes noise caused by handling.

Microphone

Microphone Type	Large Diaphragm
Polar Pattern	Cardioid / Figure-8 / Hypercardioid / Omnidirectional / Open Cardioid
Element Type	Condenser
Sound Field	Mono
Orientation	Side Address
Controls	Low Cut/HPF, Polar Pattern
Circuitry	Tube

Performance

Frequency Response	20 Hz to 20 kHz
Maximum SPL	136 dB (< 5%Distortion)
Sensitivity	34 mV/Pa (Omnidirection) 47 mV/Pa (Cardioid) 62 mV/Pa (Figure 8)
Dynamic Range	101 dB
Equivalent Noise Level	28 dB (Omnidirectional, CCIR) 25 dB (Cardioid, CCIR) 23 dB (Figure 8, CCIR)

Connectivity

Analog Output

1x Proprietary (on Mic)
1x XLR 3-Pin (on Power Supply)

Power

Power Sources	External PSU
Operating Voltage	48 V
AC Input Power (PSU)	230 VAC, 50 / 60 Hz

Physical

Color	Nickel
Mounting Thread Size	5/8"-27 Female (3/8"-16 Female with Included Adapter)
Dimensions	ø: 2.8 x L: 7.9" / ø: 70 x L: 201 mm
Weight	1.6 lb / 730 g
