Aimed at discerning musicians and engineers, concert venues, equipment rental houses, and event-production companies, the Neumann MCM 114 STEREO SET PIANO Cardioid Miniature Clip Mic (MCM) System comes with a pair of pro-grade instrument microphones configured for close miking a grand piano or an upright piano in stereo. Elevating electret technology to Neumann standards, it delivers a staggering 153 dB maximum SPL to capture the details of both loud and very soft instruments without adding distortion or self-noise. The mics securely mount onto your instrument and work for wired and wireless applications with connectivity that supports traditional XLR mic preamps for recording in the studio and wireless transmitters for performing live on stage.

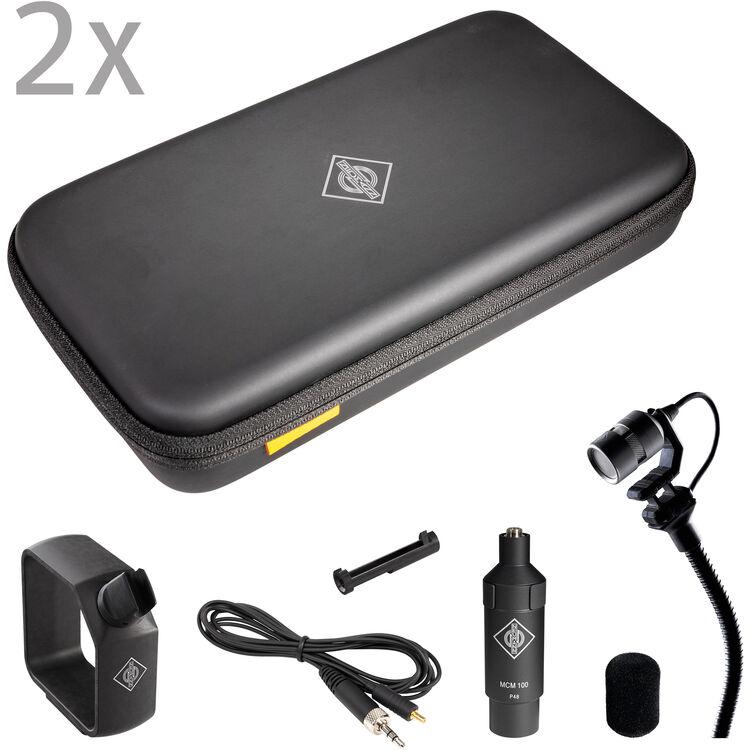

The MCM 114 STEREO SET PIANO system includes two KK 14 cardioid capsule heads, two flexible 6" goosenecks, and two MC 8 magnetic clips for mounting the goosenecks on the instrument. There are also two AC 31 cables with 3.5mm locking connectors for connecting the capsules to either the included two MCM 100 48V phantom-powered XLR output-stage modules or to the locking mini-jack inputs found on many Sennheiser wireless transmitters. The system's modular construction is designed to ensure a long service life that lasts for years. Manually assembled in Germany to align with Neumann's high standards, the MCM delivers first-rate tonal consistency plus that Neumann aesthetics and handling.
The MCM system is based around the KK 14 miniature capsule head, a 12mm diameter (small-diaphragm) electret-condenser element that delivers a truly natural, neutral, and reliable sound—even in challenging technical or acoustic situations.
The capsule features a cardioid polar pattern that helps minimize the pickup of bleed from other instruments or stage noise, while allowing greater gain before feedback. Capable of handling an extremely high 152 dB maximum SPL with an ultrawide 130 dB dynamic range, the KK 14 is ideal for close-miking virtually any instrument from bombastic drums to delicate strings.
The 6" MCM's gooseneck securely hold the detachable KK 14 capsule using a connector that allows for rotation without twisting the cable. Its flexible design enables quick and accurate positioning of the mic for optimal sound capture. The built-in elastic suspension bracket is made of sophisticated plastic for excellent absorption of structure-born noise.
The MCM 114 STEREO SET PIANO comes with two MC 8 magnetic clips to reliably mount the MCM's goosenecks on a grand piano or upright piano. The clips are easy to use and designed to prevent damage to sensitive surfaces on the instrument.
Because it uses electret-condenser technology, the MCM can run on either +48V phantom power from a traditional mic preamp or plug-in power from a compatible wireless transmitter.
With its locking 3.5mm termination, the 6' AC 31 cable can be used to connect the KK 14 to the MCM 100 output stage module for plugging the mic into a mixing board via XLR. The AC 31 cable can also be used to connect the capsule to a wireless transmitter with Sennheiser-compatible mic-input jack.
Neumann offers three more cables to work with other popular wireless transmitters including Lectrosonics, Shure, Zaxcom, Wisycom, and others.
Neumann offers a comprehensive line-up of instrument-specific magnetic, clip-on, clamp, or strap mounting solutions, allowing you to customize your system for use with a wide variety of instruments.
| Microphone Type | |
| Polar Pattern | |
| Element Type | |
| Sound Field | |
| Orientation | |
| Controls | |
| Circuitry |
| Frequency Response | |
| Maximum SPL | |
| Dynamic Range | |
| Equivalent Noise Level |
| Analog Output | |
| Cable Length |
| Power Sources | |
| Operating Voltage |
| Color | |
| Dimensions | |
| Weight |
| Package Weight | |
| Box Dimensions (LxWxH) |
