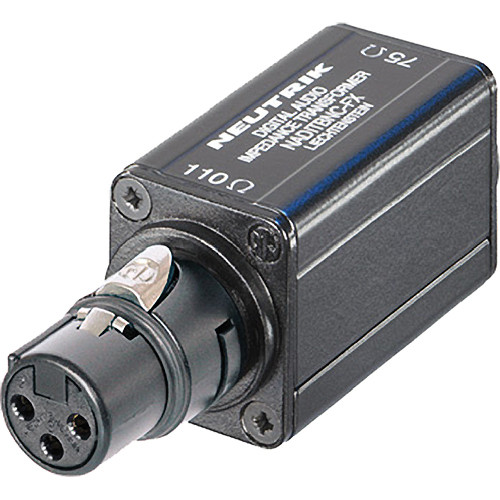

Neutrik AES/EBU Digital Impedance Transformer Adapter (110 Ohm to 75 Ohm)

Name: Neutrik AES/EBU Digital Impedance Transformer Adapter (110 Ohm to 75 Ohm)
Brand: NEUTRIK
SKU: 8126
Availability: InStock

Brand: NEUTRIK

MFR: NADITBNC-FX

Price Available Upon Request

For Long Cable Runs Via Coaxial Lines
For Digital Audio Signals
Matches 110 Ohm Cable to 75 Ohm Line
Input: 3-Pole XLR Female Connector
Output: Female BNC Chassis Connector
Durable Aluminum Construction

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Accessories

The Neutrik AES/EBU Digital Impedance Transformer Adapter (110 Ohm to 75 Ohm) allows for long cable runs for digital audio signals via low-attenuation coaxial lines. It passively matches the characteristic impedance of a balanced 110 Ohm twisted-pair cable to that of a 75 Ohm unbalanced coaxial line. The adapter is equipped with a 3-pole XLR female input connector and a female BNC chassis output connector.

Key Features

Allows long cable runs for AES/EBU digital audio signals via low-attenuation coaxial lines
Matches 110 Ohm balanced twisted-pair cable to a 75 Ohm unbalanced coaxial line
Pre-wired in black anodized aluminum extrusions for increased durability
Input: 3-pole XLR female connector
Output: female BNC chassis connector
Simple to use, passive unit
