Brand: NEUTRIK
MFR: NBB75DFIB-P
Categories: Video Connectors

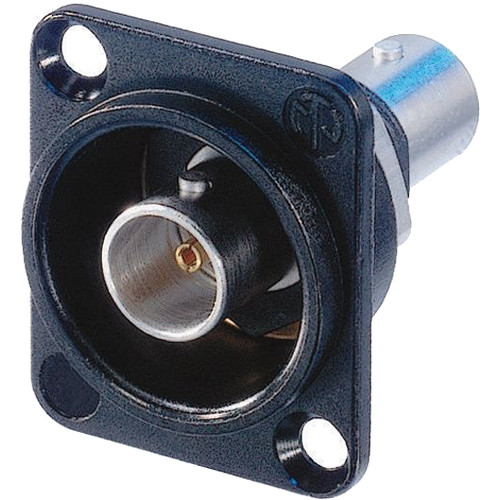

This black Isolated BNC Chassis Connector in D-Shape Housing from Neutrik is a feed-through connector which offers a true 75-ohm design for serial and digital (HD) signals. It features a machined-brass connector body that provides an extremely rugged and non-abrasive connection over long term use. The industry-standard D-shape housing protects the recessed front connector while the protruding bulkhead jack makes it easy to attach and detach a BNC cable. Optional color-coding enables you to quickly differentiate between multiple ports.
Gold-Plated Center Contact
The BNC Chassis Connector features a gold-plated cage-type center contact, which provides the best possible shielding and lowest contact resistance.
Isolated Panel Mount
The BNC Chassis Connector's isolated panel mount feature solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential.
True 75-Ohm Design
It offers a true 75-ohm design that meets stringent HD requirements.
Standard D-Shape
Its standard D-shape housing provides flush mounting and protection from damage.
The protruding bulkhead jack enables you to easily attach and detach a BNC cable.
| Connector 1 | 1 x BNC Female |
| Connector 2 | 1 x BNC Female |
Environmental
| Operating Temperature | 2 to 117°F / -30 to 85°C |
Physical
| Color | Black |
| Material of Construction | Brass, PTFE, Polyacetal (POM), Optalloy, Die-Cast Zinc, Black Chrome Plating |
Packaging Info
| Package Weight | 0.065 lb |
| Box Dimensions (LxWxH) | 2.7 x 1.35 x 1.3" |
