Neutrik NA3FDM XLR Female to Male Feedthrough Adapter for Panel Mount
Categories: Accessories

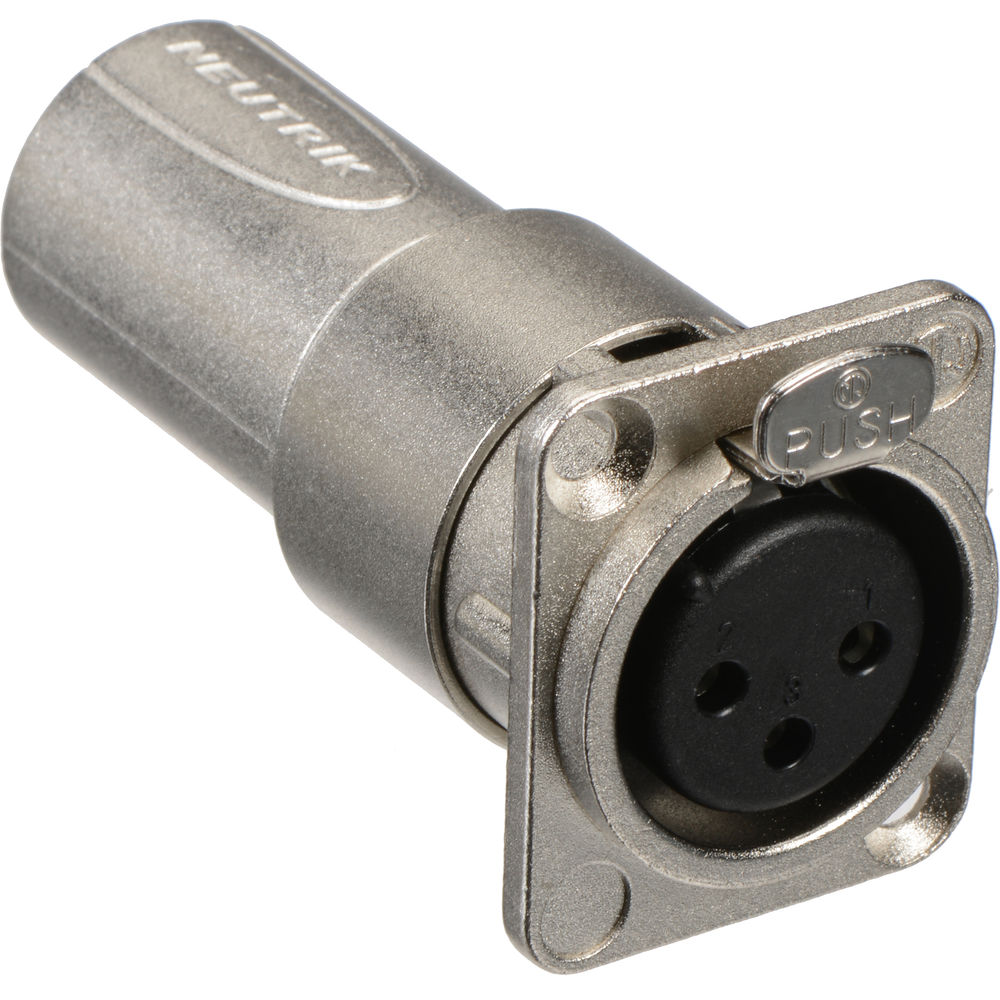

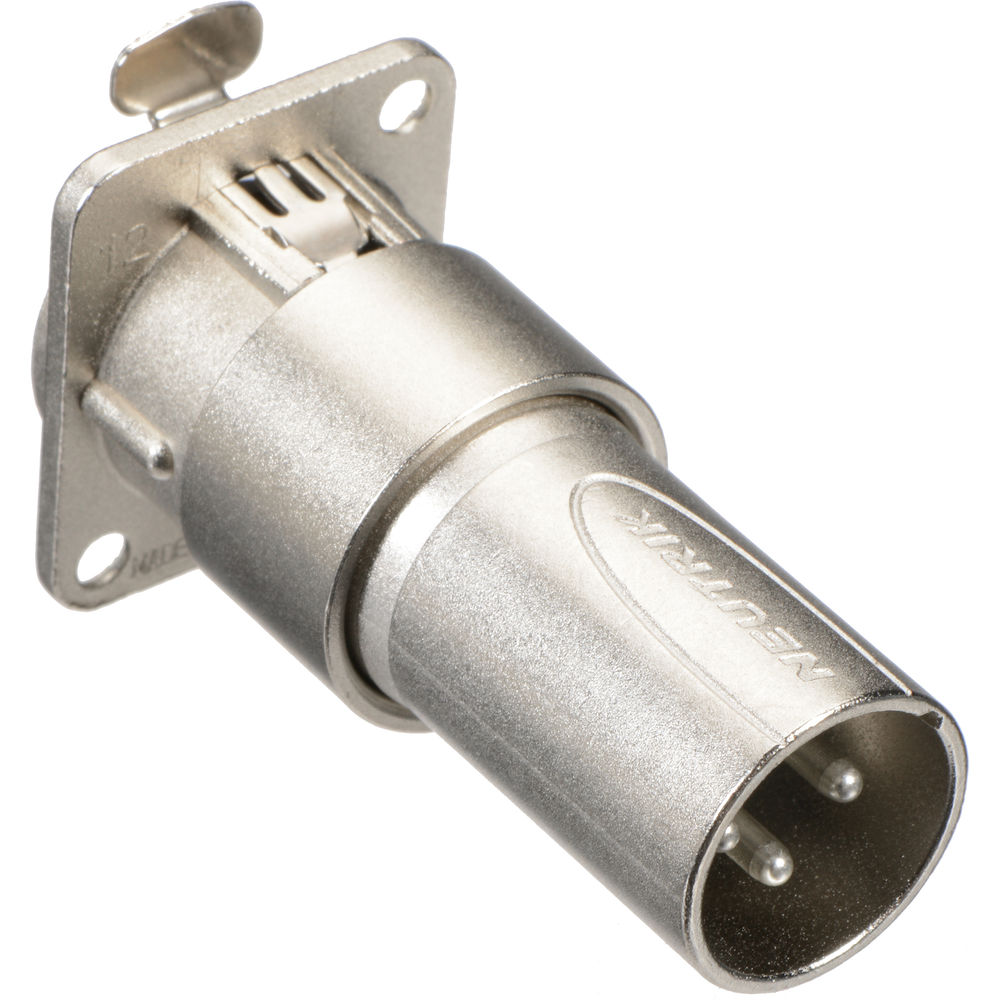

The NA3FDM XLR Female to Male Feedthrough Adapter for Panel Mount from Neutrik is designed specifically for the kinds of wall panels often utilized in studios and on stage. It features a zinc diecast chassis and a steel-element latch-locking device. This adapter offers a 3-pin XLR female on the panel side and a 3-pin XLR male on the back side.
Interface
| Connector 1 | 1 x Lockable XLR 3-Pin Male |
| Connector 2 | 1 x Lockable XLR 3-Pin Female |
Electrical
| Connector Plating | Nickel, Silver |
| Shell Plating | Nickel |
| Wire Gauge | 14 AWG |
| Minimum Contact Resistance | 5 MOhms |
| Minimum Insulation Resistance | 2 GOhms |
| Maximum Current | 16 A |
General
| IP Rating | IP40 |
| Environmental Protection | Advertised as Dust Resistant *Manufacturer Testing: IP40 |
| Insertion/Removal Cycles | 1,000,000 |
Packaging Info
| Package Weight | 0.135 lb |
| Box Dimensions (LxWxH) | 3.45 x 2.15 x 0.95" |
