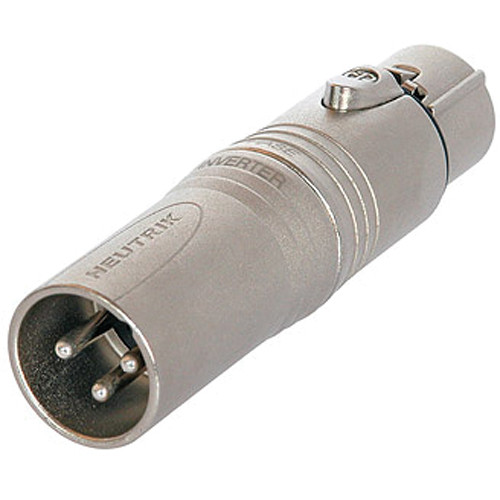

Designed by Neutrik for lighting applications, the NA3M5F is an adapter bridging the gap between 3-pole XLR connections and the 5-pole DMX standard. It does this by sporting a male 3-pole connection at one end 5-pole XLR female termination at the other. With a construction based on the XX series of Neutrik connectors, this adapter features a diecast shell for durability. It provides a useful solution in the interconnection problems between older terminations and the DMX standard.
Interface
| Connector 1 | 1 x Lockable 3-Pin XLR Male |
| Connector 2 | 1 x Lockable 5-Pin XLR Female |
Electrical
| Connector Plating | Brass, Silver |
| Minimum Contact Resistance | 3 MOhms |
| Minimum Insulation Resistance | 2 GOhms |
| Maximum Current | 7.5 A |
General
| Insertion/Removal Cycles | 1,000,000 |
Packaging Info
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 4 x 2.8 x 0.9" |
