Neutrik NA3MDF XLR Male to Female Feedthrough Adapter for Panel Mount
Categories: Accessories

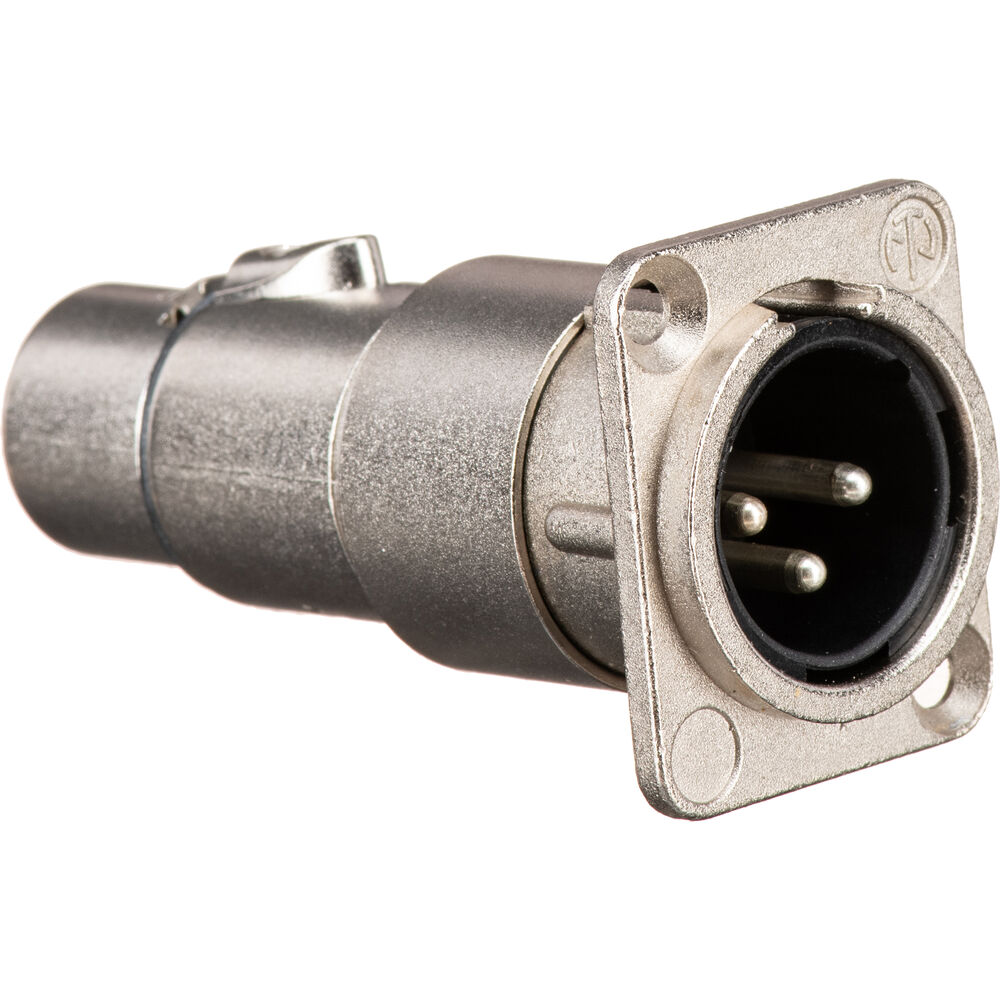

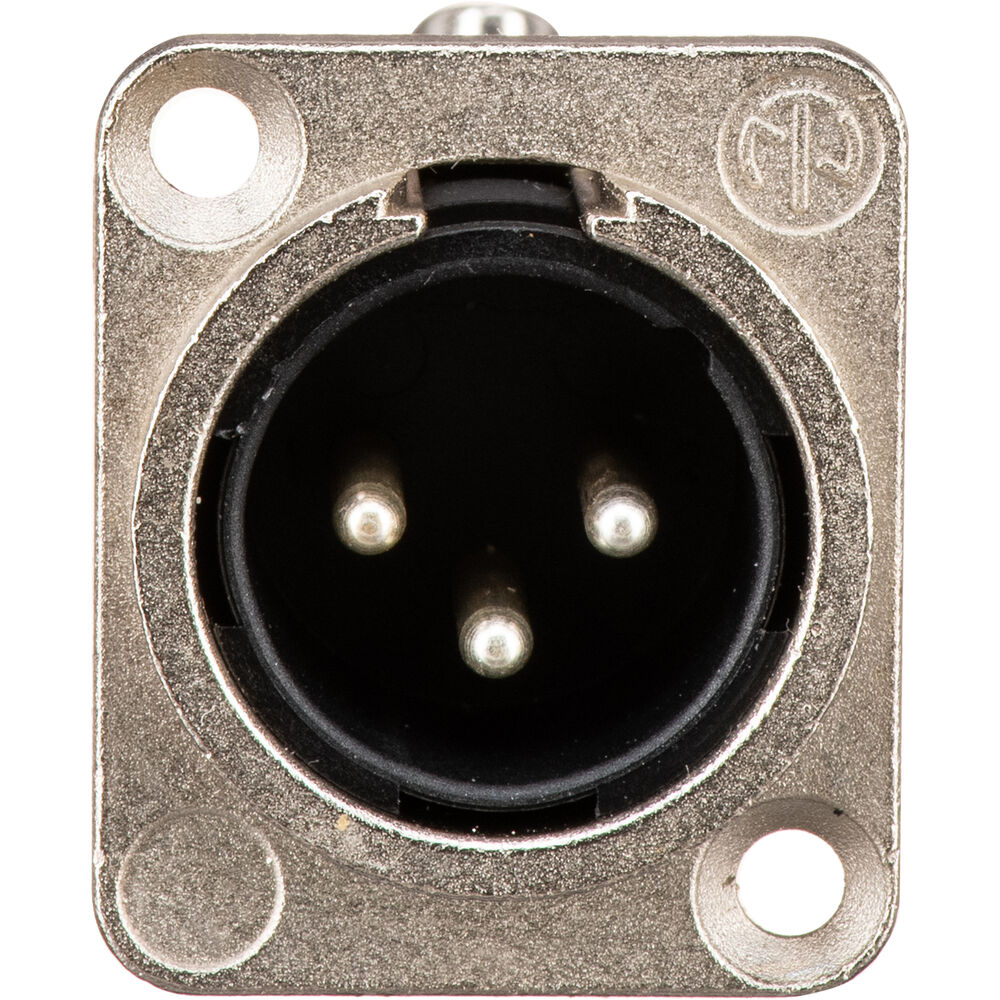

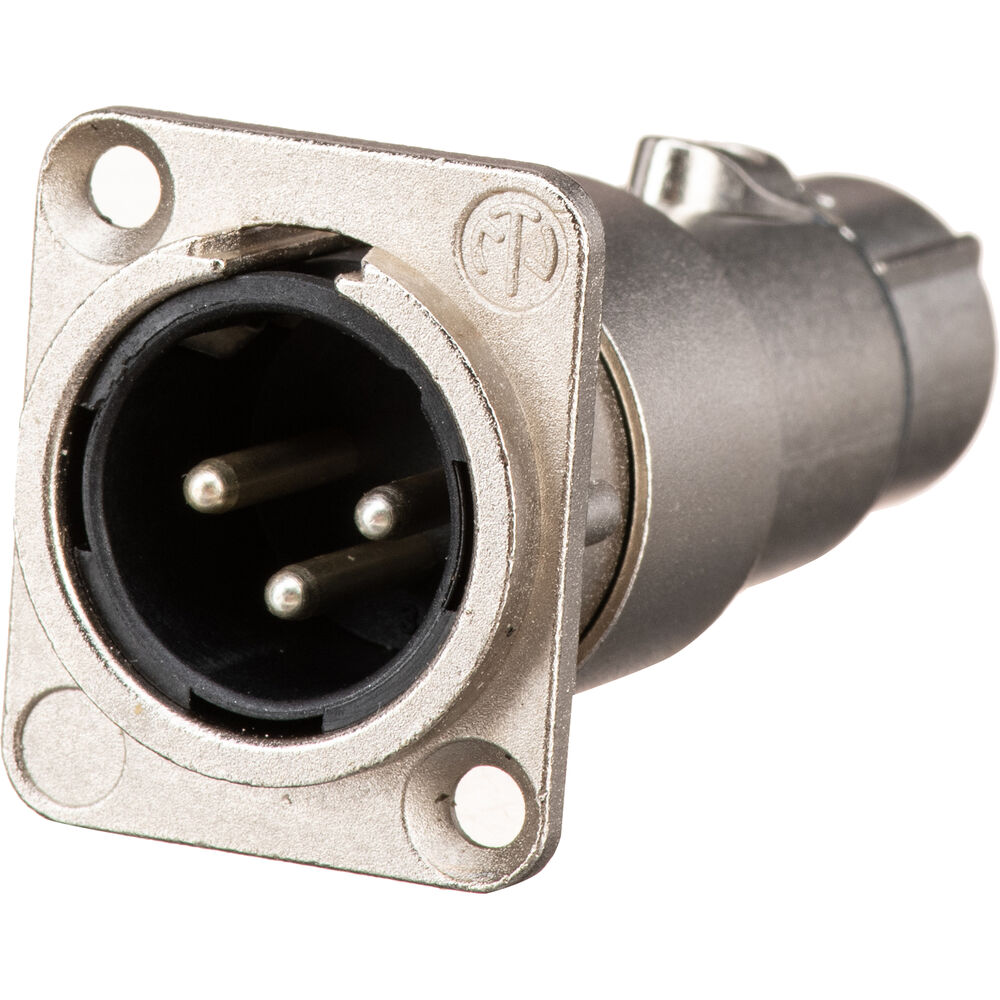

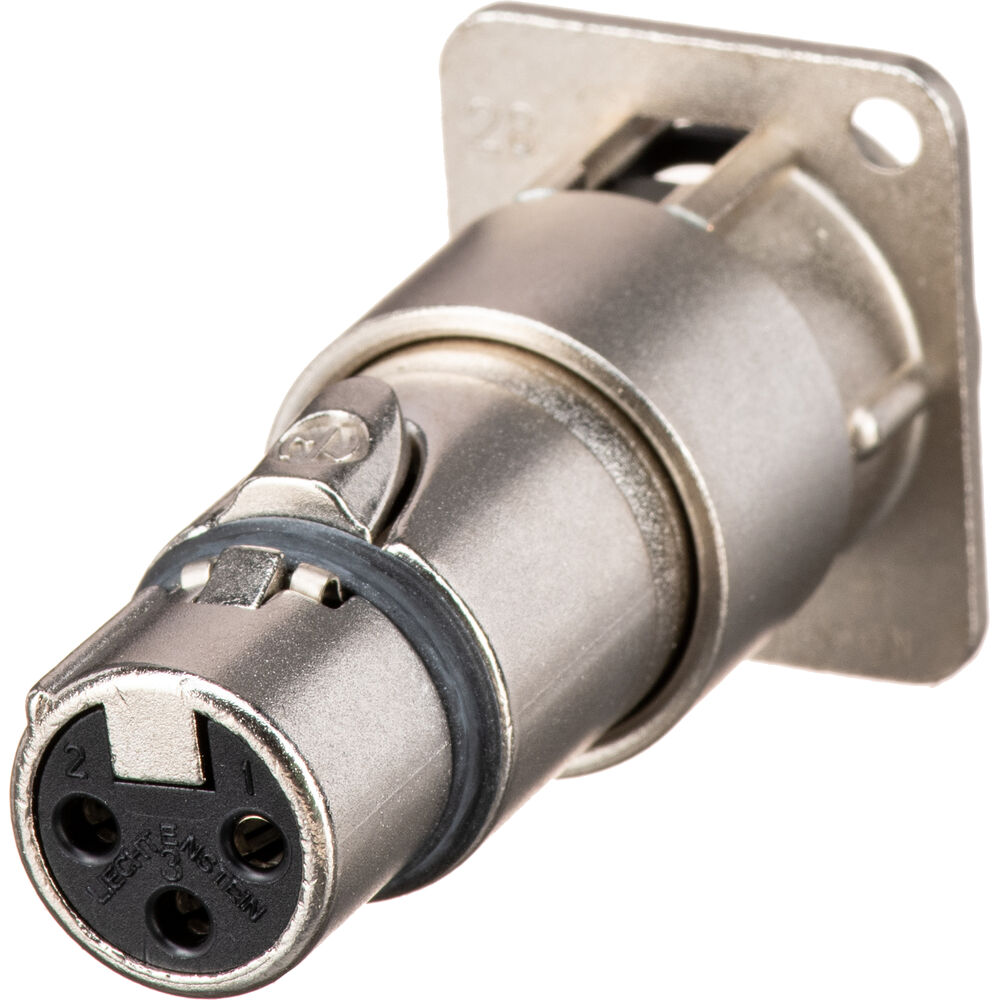

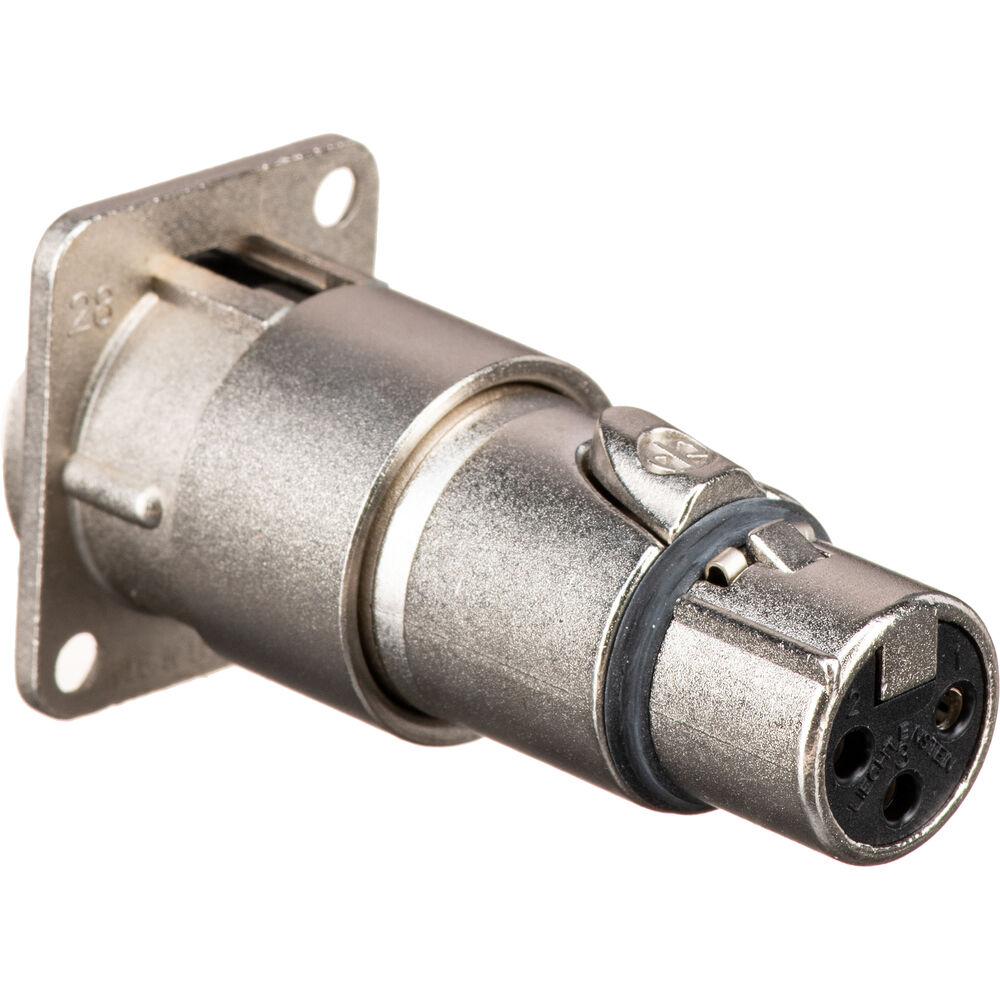

The NA3MDF XLR Male to Female Feedthrough Adapter for Panel Mount from Neutrik is designed specifically for the kinds of wall panels often utilized in studios and on stage. It features a zinc diecast chassis and a steel-element latch-locking device. This adapter offers a 3-pin XLR male on the panel side and a 3-pin XLR female on the back side.
Interface
| Connector 1 | 1 x Lockable XLR 3-Pin Male |
| Connector 2 | 1 x Lockable XLR 3-Pin Female |
Electrical
| Connector Plating | Nickel, Silver |
| Shell Plating | Nickel |
| Wire Gauge | 14 AWG |
| Minimum Contact Resistance | 5 MOhms |
| Minimum Insulation Resistance | 2 GOhms |
| Maximum Current | 16 A |
General
| IP Rating | IP40 |
| Environmental Protection | Advertised as Dust Resistant *Manufacturer Testing: IP40 |
| Insertion/Removal Cycles | 1,000,000 |
Packaging Info
| Package Weight | 0.13 lb |
| Box Dimensions (LxWxH) | 2.1 x 1.7 x 0.9" |
