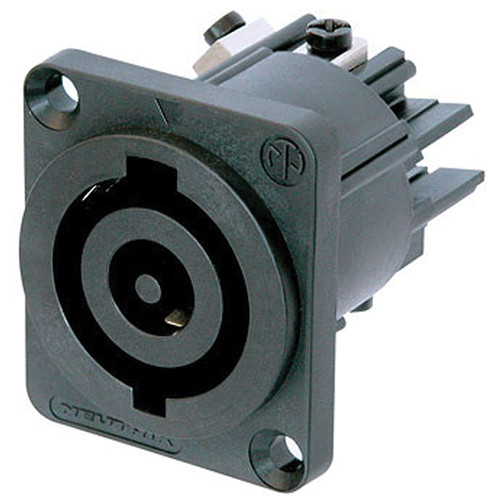

Neutrik NAC3MP-HC powerCON 32 A Male Power-In Chassis Connector

Name: Neutrik NAC3MP-HC powerCON 32 A Male Power-In Chassis Connector
Brand: NEUTRIK
SKU: 8518
Availability: InStock

Brand: NEUTRIK

MFR: NAC3MP-HC

Price Available Upon Request

High Current Cable Connector
For Pro Audio and Lighting Equipment
For Currents up to 32A
For Voltages up to 250V

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Lighting Accessories

The Neutrik NAC3MP-HC powerCON 32 A Male Power-In Chassis Connector is a robust and reliable locking single phase AC appliance cable connector for high current capacity. It is conceived to be a non-standardized 3-pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. It comprises contacts for phase, neutral, and protective earth (ground) conductor, and is rated for currents up to 32A and for voltages up to 250V.

250 VAC, 32A single-phase (for ambient temperatures up to 35°C)
Pre-mating contact for protective earth
Fast and easy locking system to prevent unintentional disengagement
Wiring with screw-type terminals
For 0.1 to 0.24 sq. in (2.5 to 6 sq. mm) wires (14 to 10 AWG)
Very robust and reliable
VDE, UL, cUL, and JET approved

Interface

Connector 1	1 x PowerCON
Connector 2	Bare Ends

Electrical

Maximum Voltage	250 V
Current	32 A
Contact Resistance	3Ohms
Dielectric Strength	4 kVDC / 2.8 kVAC
Contact Plating	4 µ Silver
Contact Material	Bronze
Wire Gauge	14 AWG
Minimum Insulation Resistance	10 GOhms
