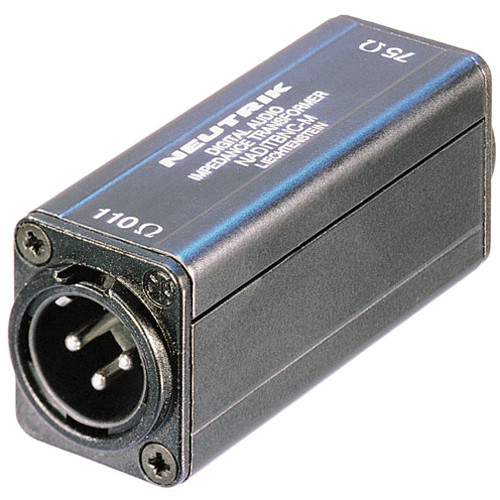

Neutrik NADITBNC-M - AES/EBU Impedance Transformer

Name: Neutrik NADITBNC-M - AES/EBU Impedance Transformer
Brand: NEUTRIK
SKU: 8127
Availability: InStock

Brand: NEUTRIK

MFR: NADITBNC-M

Price Available Upon Request

Inputs 75 Ohm BNC, Outputs 110 Ohm XLR
Matches Balanced to Coaxial Lines
Allows Long Cable Runs for Digital Audio
Simple to Use, Passive Unit
Cost-Effective Impedance Matching

Items Included

Neutrik NADITBNC-M - AES/EBU Impedance Transformer

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Accessories

The Neutrik NADITBNC-M - AES/EBU Impedance Transformer is a cost-effective passive impedance matching adapter, allowing long cable runs for digital audio signals via a low attenuation coaxial line.

This Neutrik Impedance Transformer is pre-wired in a black anodized aluminum extrusion for increased durability. It inputs a female BNC chassis @ 75 Ohms, and outputs to a balanced male XLR @ 110 Ohms.

Neutrik - NADITBNC-M - AES/EBU Impedance Transformer

Simple to use, passive operation
Inputs BNC @ 75 ohms, outputs XLR @ 110 ohms
Interfaces balanced and coaxial lines
Allows long cable runs for digital audio
Pre-wired in anodized aluminum extrusion

Connection Type	Adapter
Connectors	Input: 75 ohm BNC female Output: 110 ohm XLR male
Frequency Range	0.1 - 6 MHz
Rated Voltage	≤ 5 V p-p
Maximum Power	250 mW
VSWR	< 1.1
Return Loss	> 26.4 dB
Insertion Loss	< 0.3 dB @ 0.1 MHz to 10 MHz
