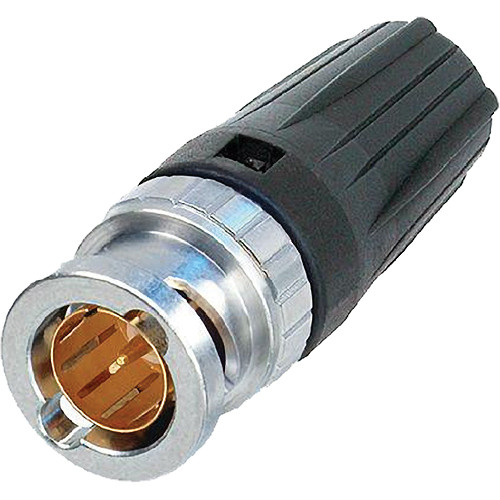

Neutrik NBNC75BZV14 rearTWIST BNC Cable Connector

Brand: NEUTRIK

MFR: NBNC75BZV14

Price Available Upon Request
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Categories: Video Connectors

The Neutrik NBNC75BZV14 rearTWIST BNC Cable Connector offers a true 75 Ω design and is suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

  • rearTWIST Principle locking / unlocking using the easily accessible soft touch boot
  • Ideal for recessed bulkheads where access to the head of the connector might be an issue, and this connector turns from the back and not the front
  • True 75 Ω design meets stringent HDTV / DVD requirements
  • Leading Area: Avoids tilting due to side forces to protect contacts from deformation and guarantees a lifetime of minimum 1,000 mating cycles
  • Snug-fit center pin insert provides tactile feedback
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • Good cable protection and retention
  • Precise Swiss-machined brass parts for outstanding durability

Compatible WithBelden 1794A cable
Crimp SizePin: 0.06" (1.6 mm) (square) or 0.07" (1.75 mm) (hex)
Shield: 0.32" (8.23 mm) (hex)

Packaging Info

Package Weight0.05 lb
Box Dimensions (LxWxH)7 x 4 x 0.2"
