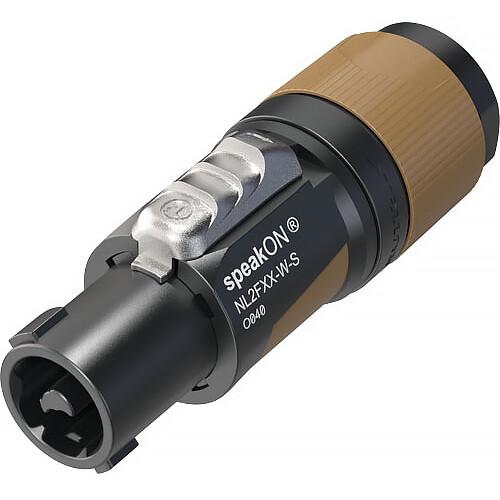

Neutrik NL2FXX-W-S Two-Pole speakON Connector (Brown)
Categories: Audio Connectors
Save money by making your own pro-audio speaker cables with the brown Neutrik NL2FXX-W-S, a two-pole speakON connector for professional audio applications. The connector is extremely robust and features a reliable locking system. Each pole utilizes a screw-type terminal including stranded wire protection. The NL2 connector mates with 2-pole chassis connectors as well as 4-pole chassis connectors (contacts +1/-1).
| Compatibility | Not Specified by Manufacturer |
| Electrical | Contact Resistance: ≤ 2 Megaohms Dielectric Strength: 2.8 kVac Insulation Resistance: > 10 Gigohms (Initially) Electronical Contacts: 2 Rating Europe: IEC 61984: 37 A 250 VAC Rating USA: UL1977: 35 A 250 VAC Rating Canada CSA C22.2 No.182.3: 24 A 250 VAC |
| Specifications | Mechanical Cable Diameter: 0.2 to 0.5" / 6 to 12 mm Lifetime: Typically 5000 Mating Cycles Wire Size (mm):1.5 to 4 mm² Wire Size (AWG): 17 to 11 AWG Locking Device: Twist Lock Termination: Screw Type Terminals |
| Color | Black / Brown |
| Material of Construction | Copper Alloy Contacts, Zinc Diecast Lock, Polyamide Shell and Insert, Polypropylene Bushing, Polyketone Strain Relief |
| Environmental Resistance | No |
| Operating Conditions | -27 to 176°F / -33 to 80°C |
| Package Weight | 0.08 lb |
| Box Dimensions (LxWxH) | 4.55 x 3.7 x 2.3" |
