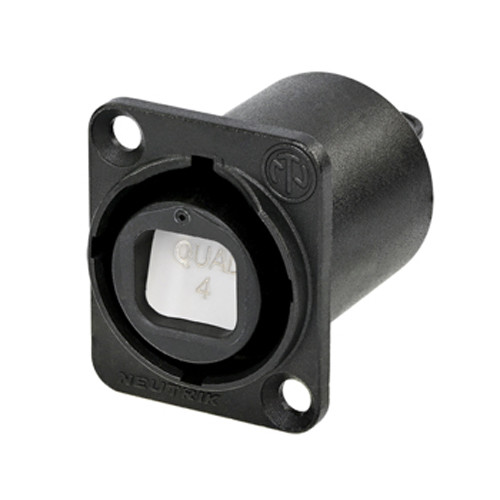

This black NO4FDW-A Multi-Mode opticalCON Female Quad Chassis Connector from Neutrik is installed in the front panel of your networking equipment to secure LC cables. This connector comes with black chromium plating, 4 solder contacts, and an LC feed-through socket, which simplifies LC installations in the rear.
Neutrik has built the connector with a standard D-shape shell with a push-pull locking mechanism. It features an automatic sealing cover for maximum dust and dirt protection as well as a waterproof rating of IP65. In addition, colored sealings are included to identify the fiber mode (this connector is coded black for multi-mode).
Key Features
| Gender | Female |
| Mechanical | Insertion Force: <45 N Withdrawal Force: <45 N Lifetime: >5000 Mating Cycles Locking Force: 1000 N Locking Device: Push-Pull Mounting Direction: Front Chassis Shape: D |
| Material | Insert: Polyamide (PA 6, PBT 30% GR, PBT 50% GR) Shell: Zinc Diecast (ZnAl4Cu1) Shell Plating: Black Chromium |
| Operating Temperature | -40 to 167°F / -40 to 75°C |
| Optical | Multi-Mode Connector: LC Feed-Through Insertion Loss: <0.5 dB per Connection |
Packaging Info
| Package Weight | 0.07 lb |
| Box Dimensions (LxWxH) | 3.65 x 2.45 x 1.15" |
