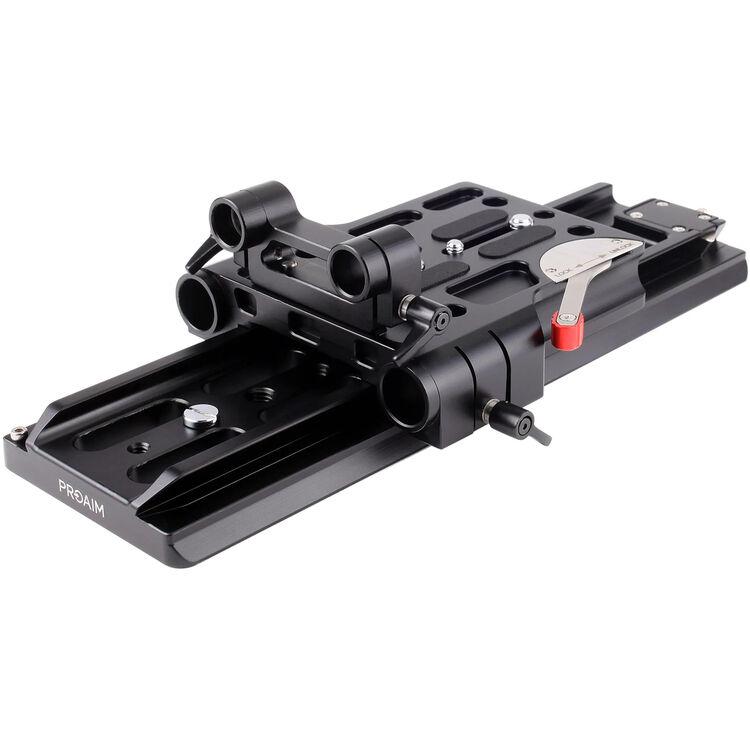

The 19/15mm Baseplate with ARRI-Style Dovetail from Proaim offers both 15mm LWS and 19mm studio rod support for camera accessories. This aluminum baseplate system consists of a bridge plate and an ARRI-standard dovetail plate. The bridge plate features both 1/4"-20 and 3/8"-16 camera screws, and the dovetail incorporates both 1/4"-20 and 3/8"-16 tripod threads.

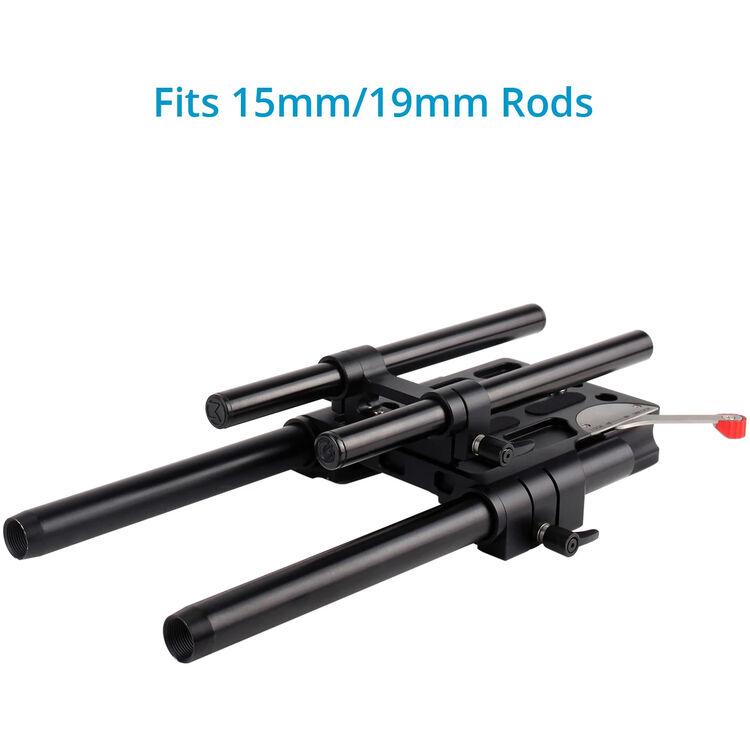

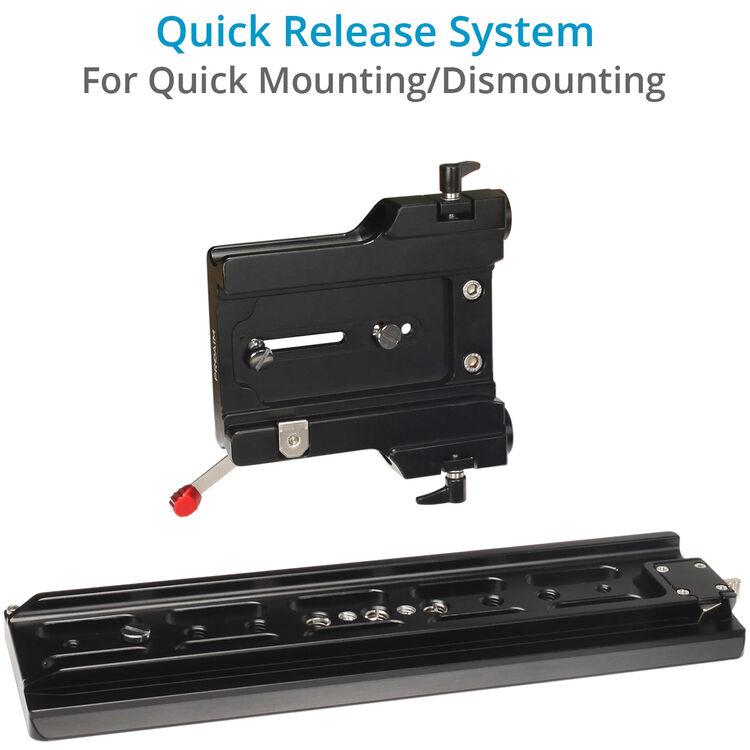

This versatile system can be used with 15mm rods for lighter cameras such as the Sony PMW-F5 and with 19mm rods for heavier camera rigs like the ARRI ALEXA. The bridge plate also features a quick release lever and a safety catch.
| Support Type | Baseplate |
| Grip Type | No |
| Camera Compatibility | Universal |
| Rod Standard | 15 mm LWS / 60 mm Spacing 19 mm Studio / 104 mm Spacing |
| Battery Plate Type | No |
| Accessory Mounting | Not Specified by Manufacturer |
| Camera Mounting | 1/4"-20 Male Screw, 3/8"-16 Male Screw |
| Tripod Mounting | Dovetail Plate 1/4"-20 Female Thread, 3/8"-16 Female Thread |
| Rod Ports | 2x 15 mm Rod Port 2x 19 mm Rod Port |
| Shoe Mounting | No |
| Rosettes | No |
| Cable Clamp | No |
| Filter Compatibility | No |

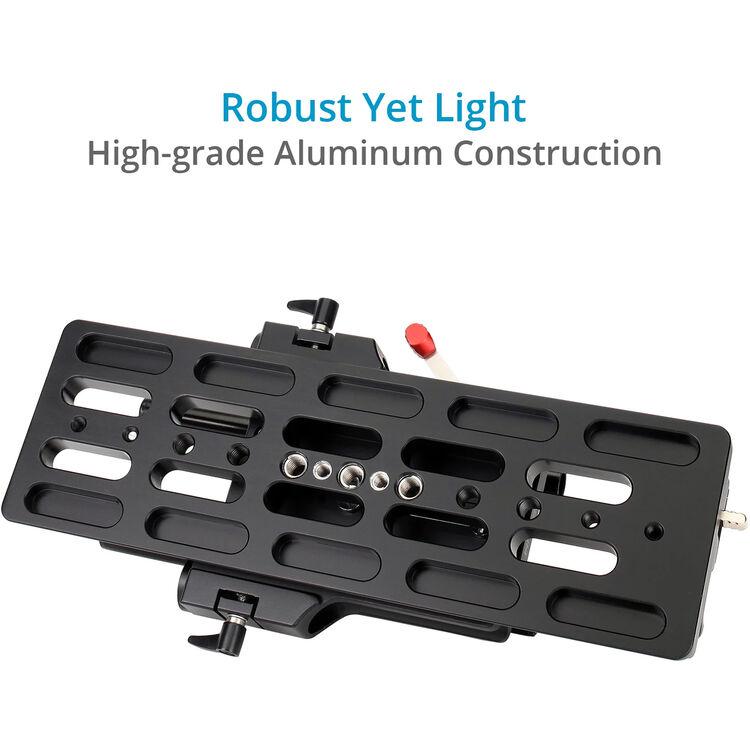

| Materials | Aluminum |
| Dimensions | 11.8 to 3.7" / 300 to 95 mm |
| Weight | 3 lb / 1.36 kg |
| Package Weight | 3.1 lb |
| Box Dimensions (LxWxH) | 14.7 x 7.6 x 4" |
