Proaim Hawk Pro Body Support System for Camera Gimbals

Proaim Hawk Pro Body Support System for Camera Gimbals

Name: Proaim Hawk Pro Body Support System for Camera Gimbals
Brand: Proaim
SKU: SF-2443-4TI6
Availability: InStock

Brand: Proaim

MFR: ST-PHWK-01

SKU: SF-2443-4TI6

Price Available Upon Request

2.2 to 44 lb Load Capacity
Modular Body Support System
Custom-Fit Body Harness
Adjustable Back Support
Telescopic Arms, Three Rig Elastics
Versatile Top Bar, Extension Handles

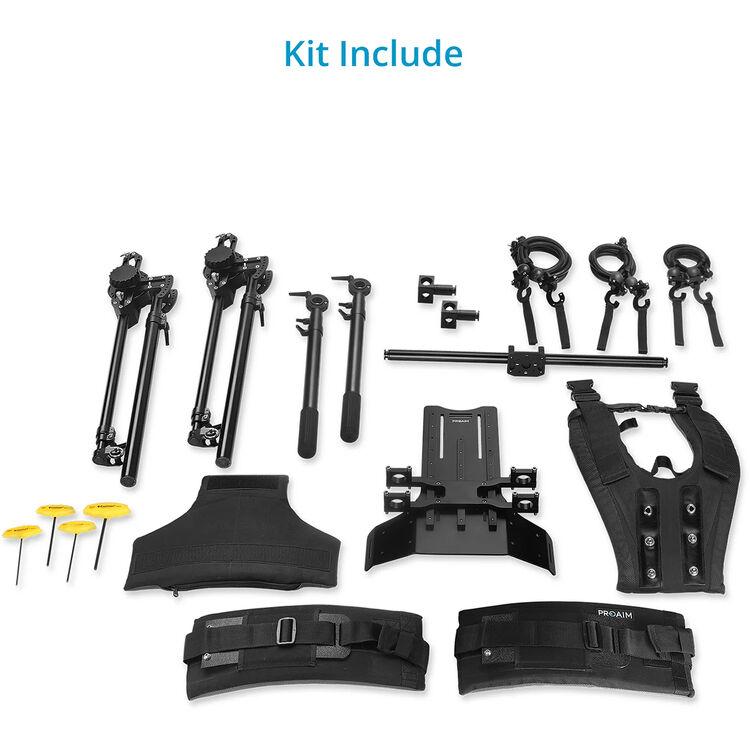

Items Included

Proaim Hawk Pro Body Support System for Camera Gimbals
Metal Base Vest
Shoulder Support
Padded Back Support
Rig Top Bar
2 x Padded Waist Belt
2 x Rig Extension Handle
2 x Back Rig Extension
2 x Rig Extension Arm
2 x Rig Elastic with Hook (0.35")
2 x Rig Elastic with Hook (0.4")
2 x Rig Elastic with Hook (0.5")
2 x Gimbal Adapter
2 x Net Pouch
8 x Small Pouch
L-Type Allen Key
T-Type Allen Key Set

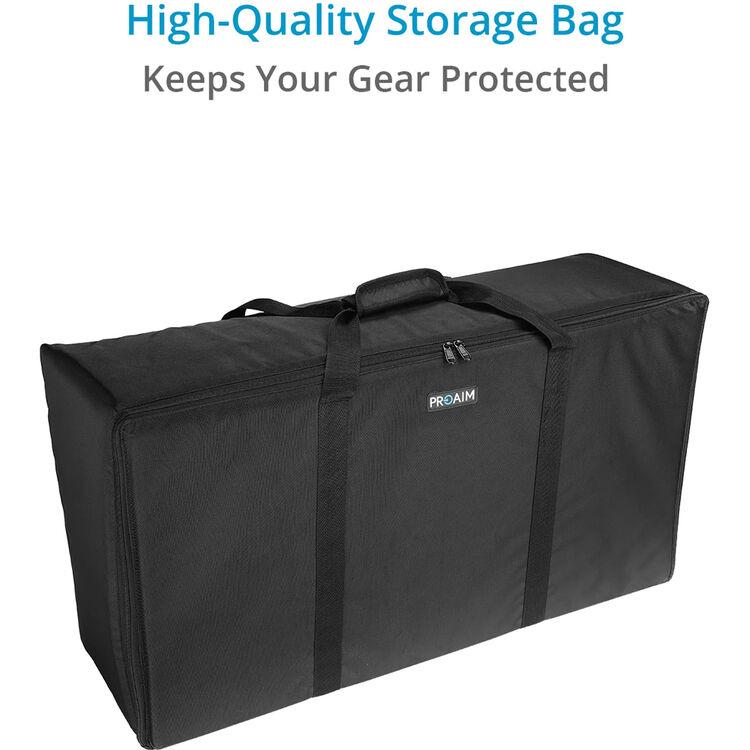

Carrying Case

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Support System

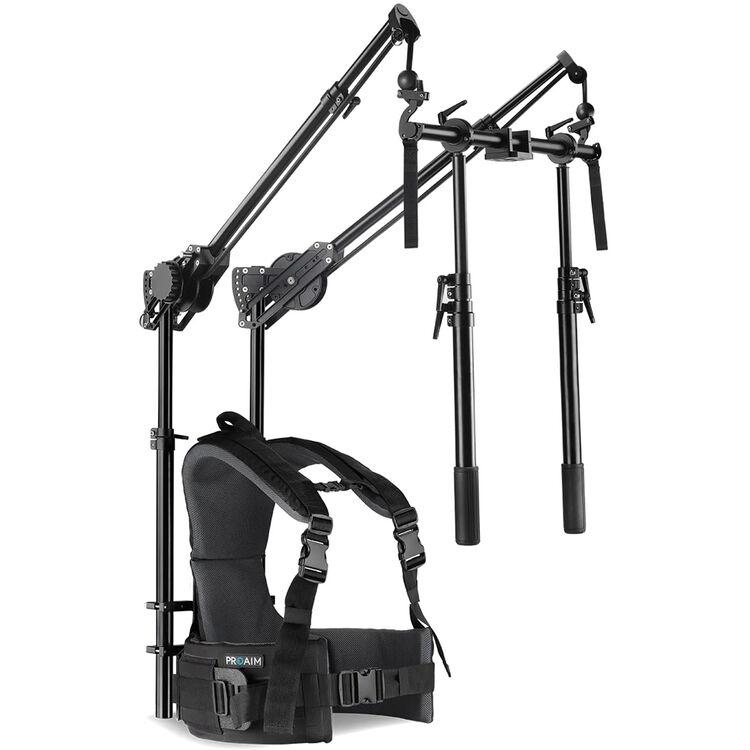

Easily shoot handheld gimbal footage using the Hawk Pro Body Support System from Proaim, thanks to its modular construction for a customizable experience. The system includes all of the components to construct a custom-fit body harness that transfers the total weight of your rig onto your hips for longer shoot days. Telescopic arms, rig elastics, and a versatile top bar accommodate payloads from 2.2 to 44 lb.

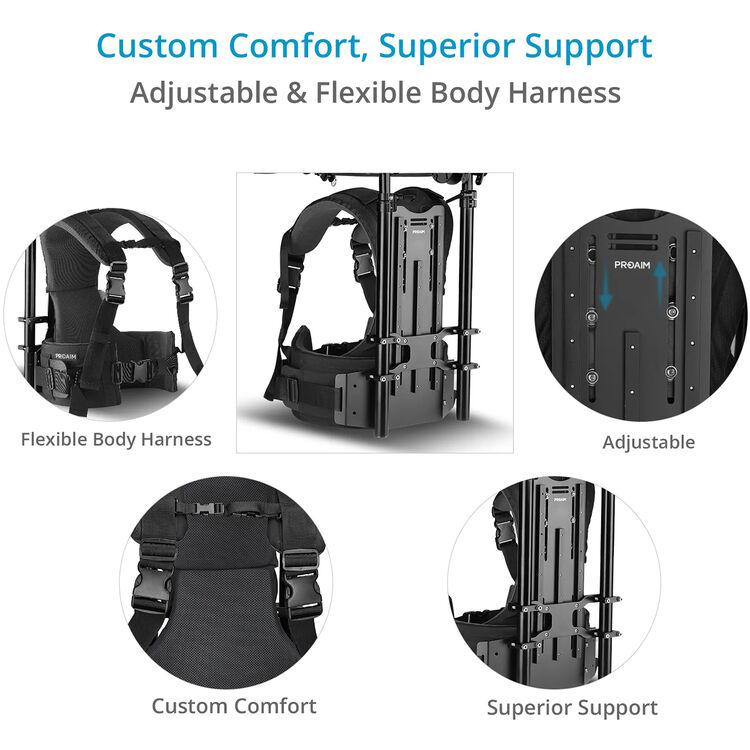

Custom-Fit Harness

A metal base back vest, shoulder support, padded back support, and padded waist belts allow you to create a custom-fit harness that suits your body proportions, effectively redistributing the weight of the rig to your hips. Integrated metal plates and bolts fine-tune the adjustments. Extend or lower the back rig extension depending on the height of your camera operator.

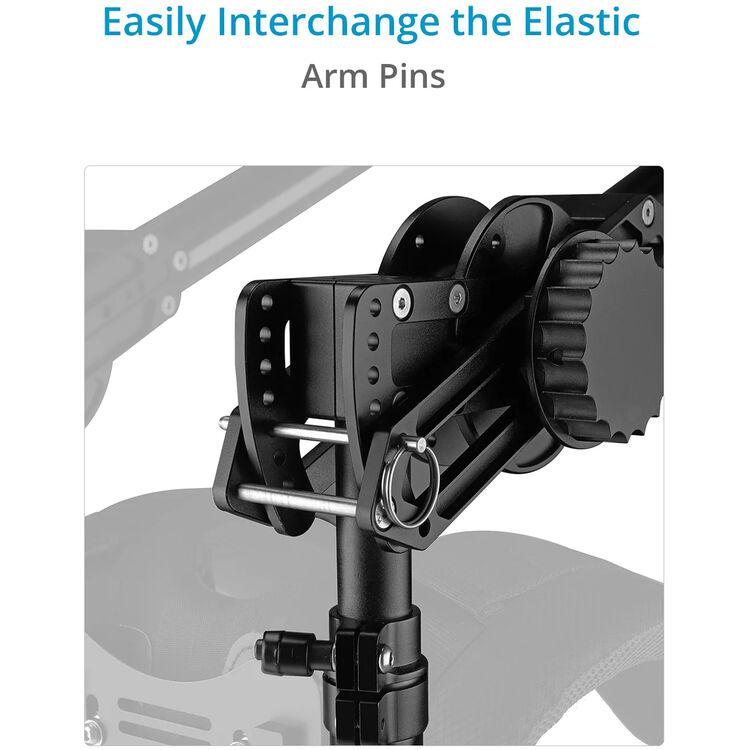

Telescopic Arms, Rig Elastics

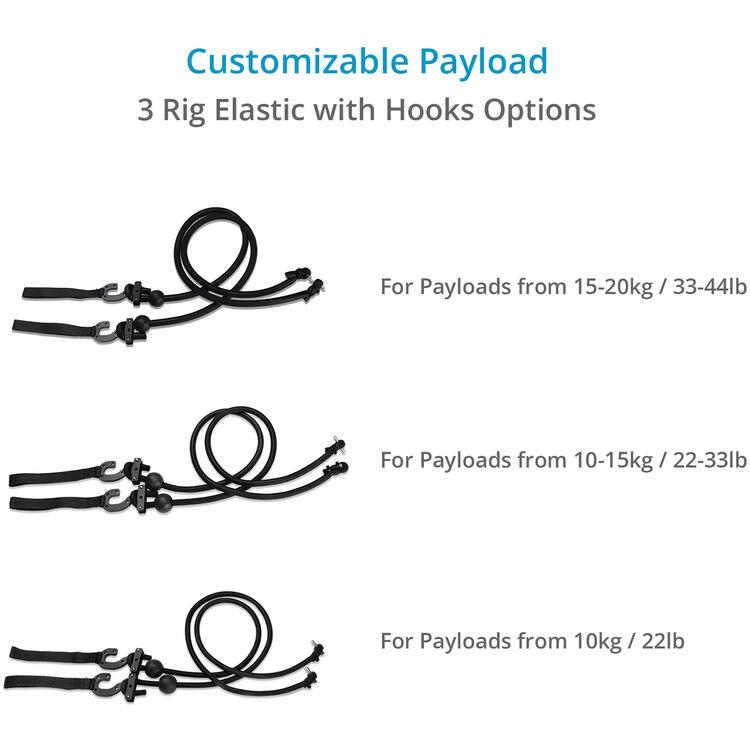

Telescopic arms can extend up to 3.4' to capture high-flying perspectives. The arms adjust without the need for additional tools. Three rig elastics in different diameters give you control over the system's payload. Use the 0.35" thick elastic for loads up to 22 lb, the 0.4" elastic for loads between 22 and 33 lb, or the 0.5" elastic for loads between 33 to 44 lb.

Versatile Top Bar

The included top bar for the Hawk Pro rig is compatible with the FREEFLY MōVI Pro gimbal. Two gimbal adapters with spigot ends secure to the system with the elastic hooks for compatibility with the DJI Ronin 2, FREEFLY MōVI Pro, and the ARRI Maxima M30.

Load Capacity

2.2 to 44.1 lb / 1 to 20 kg

Overhead Arm

Dual Telescoping

General

Material of Construction	Composite
Total Rig Weight	29.1 lb / 13.2 kg
Overall Dimensions	43.3" / 110 cm (Extended Height) 40.9" / 104 cm (Extended Arm Length)
