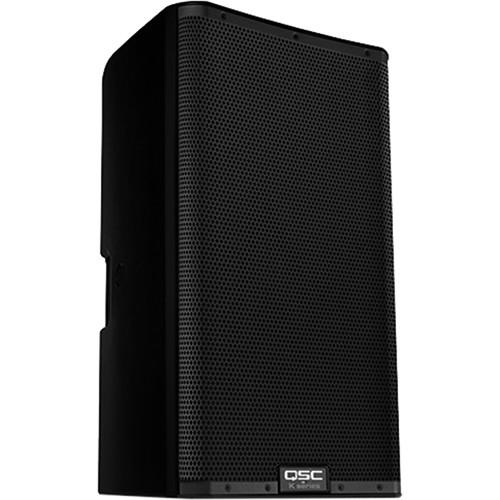

Designed to deliver professional-quality audio, the 12" QSC K12.2 is a highly flexible, easy to use, 2000W powered portable PA speaker for today's working musicians, singer/songwriters, mobile DJs, and other sound providers. The speaker works in a variety of orientations and configurations for use as a main PA or stage monitor. When used as a main speaker, a pair of K12.2s is well equipped to cover an audience of 300+.
Two inputs (A and B) feature combo XLR-1/4" connectors with input A offering a Mic/Line selection and input B offering Mic/Hi-Z selection, which is designed for connecting high-impedance signals such as guitars and other instruments. Additionally, channel 3 provides a 3.5mm TRS auxiliary input for connecting portable audio devices. With independent mic and line inputs, the K12.2 is a great choice for any singer/songwriter or solo performer with an instrument. You have independent control over mic and instrument levels, while the aux input provides backing tracks or incidental music between sets.
The highly efficient 2000W Class-D amplifier powers the 12" woofer and 1.4" titanium compression driver, which provide full-range audio (50 Hz to 20 kHz) with a sound pressure level powerful enough to ensure the entire audience can hear your performance. QSC's Directivity Matched Transition (DMT) matches the coverage angle of the woofer at the crossover frequency with the horn pattern to ensure a uniform response across the coverage area (75° axisymetric). The Intrinsic Correction techniques ensure a smooth power response resulting in accurate performance in a wide range of acoustic spaces with little or no EQ. The K12.2 includes a power cord.
Presets: The user may select from an extensive list of factory preset EQ contours
SUB Menu: Select a setting to match the top-box with a subwoofer
Scenes: Savable and recallable Scenes can store information like user EQ, Delay, and input configuration settings
Floor Monitor
Main PA
| Speaker Type | Active Loudspeaker/Stage Monitor |
| Configuration | 2-Way |
| Enclosure Type | Bass-Reflex |
| Total Output Power | 2000 W |
| Amplifier Power Rating | Low Frequency (LF) 1800 W Peak Mid Frequency (MF) 225 W Peak |
| Amplifier Class | Class-D |
| LF Driver | 1x 12" / 30.48 cm Woofer |
| HF Driver | 1x 1.4" / 35.6 mm Titanium Compression Driver |
| Frequency Range/Response | 45 Hz to 20 kHz (-10 dB) 50 Hz to 20 kHz (-6 dB) |
| Maximum SPL | 132 dB (Peak) 126 dB (Continuous) |
| Coverage Angle | 75° Conical |
| Crossover Frequency | 80 / 100 / 125 Hz |
| EQ & Filters | 4-Band Parametric EQ |
| Alignment Delay | Up to 100 ms (113' / 34.44 m) |
| Digital Signal Processing | No |
| Audio I/O | 1x Combo XLR-1/4" TRS Line/Mic Input 1x Combo XLR-1/4" TRS Hi-Z/Line Input 1x 1/8" / 3.5 mm TRS Aux Input 2x XLR 3-Pin Thru/Output 1x XLR 3-Pin Mix Output |
| Network I/O | No |
| USB I/O | No |
| Wireless | No |
| Mobile App Compatible | No |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| AC Power I/O | 1x IEC Input (Locking) |
| Current Consumption | 100 VAC: 2.1 A (1/8 Power) 120 VAC: 1.9 A (1/8 Power) 240 VAC: 1.1 A (1/8 Power) |
| Color | Black |

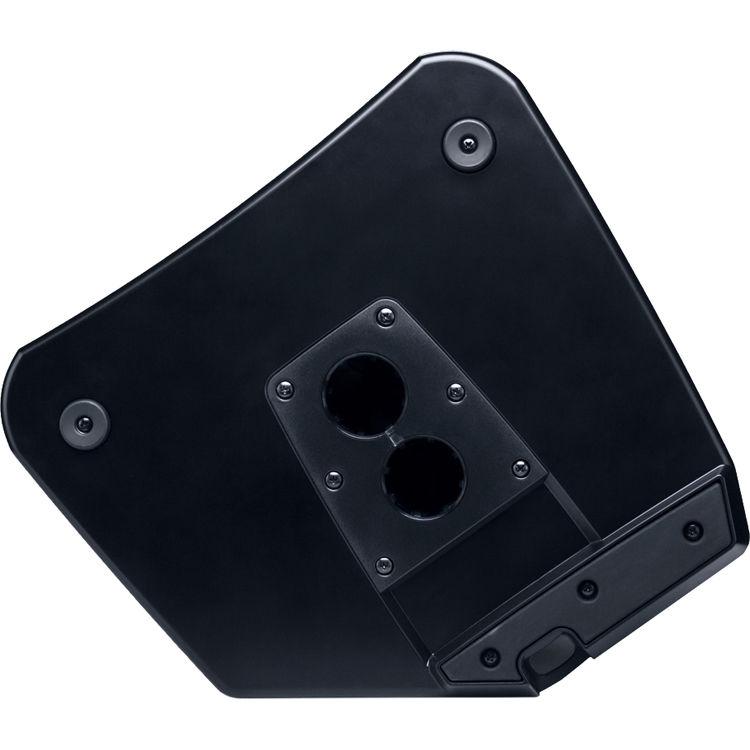

| Mounting | Stand Mount 2 x 1.38" / 35 mm Dual-Angle Pole Socket (Bottom) Suspension Points 2 x M10 Fly Point |
| Handles | 1x Top 1x Side |
| Construction Material | ABS, Metal Grille |
| Environmental Resistance | No |
| Dimensions | 23.7 x 14 x 13.8" / 602 x 355.6 x 350.5 mm |
| Weight | 39 lb / 17.7 kg |
| Package Weight | 49 lb |
| Box Dimensions (LxWxH) | 25.7 x 18.5 x 18.3" |
