Brand: SENNHEISER
MFR: A 3700
Categories: Antennas & Accessories

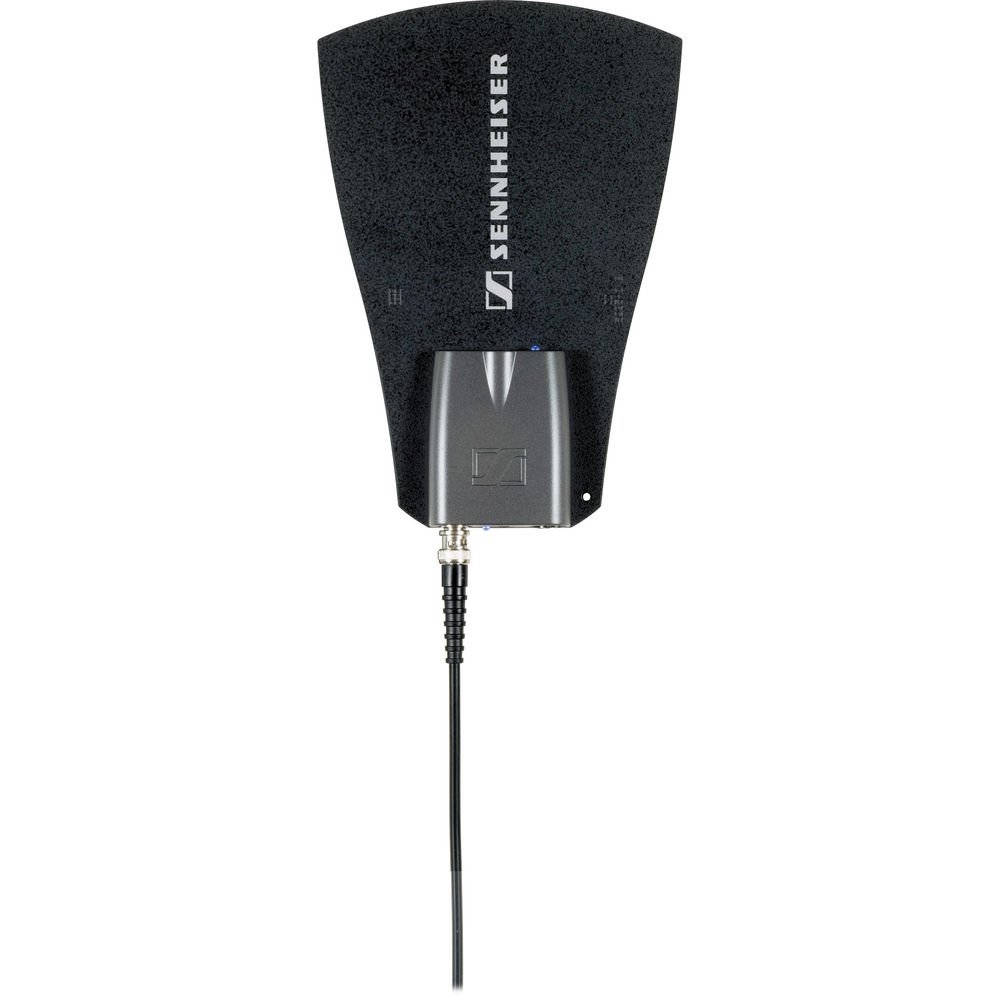

The SennheiserA 3700 Omnidirectional Antenna with Booster is an RF antenna for the Sennheiser EM3731, EM3732 and EM3732 Command receivers. The antenna significantly boosts RF strength and gain during long BNC cable runs. The A 3700 features up to 15dB of amplification.
| Frequency Range | 470-866 MHz |
| Polar Pattern | Omnidirectional |
| Gain | typ: bypass (-3 dB), 5dB, 10dB, 15dB adjustable Without remote power suply: -6dB |
| Impedance | 50 Ohms OIP3: > = 32dBm |
| Connections | 1 x BNC |
| Power Supply | 9-15 V DC / 160-100 mA |
| Thread | 3/8" or 5/8" |
| Dimensions | 9.84 x 6.49 x 0.90" (250 x 165 x 23mm) |
| Weight | 13.75 oz (390 g) |
