Sennheiser AB 3700 Broadband Antenna Booster

Name: Sennheiser AB 3700 Broadband Antenna Booster
Brand: SENNHEISER
SKU: 6596
Availability: InStock

Brand: SENNHEISER

MFR: AB 3700

Price Available Upon Request

For EM3731 & EM3732 Receivers
Up to 15dB Amplification
Bypass Switch
Standard 3/8" or 5/8" Mount

Items Included

Sennheiser AB 3700 Broadband Antenna Booster
Adjustment Tool
Instructions

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Antennas & Accessories

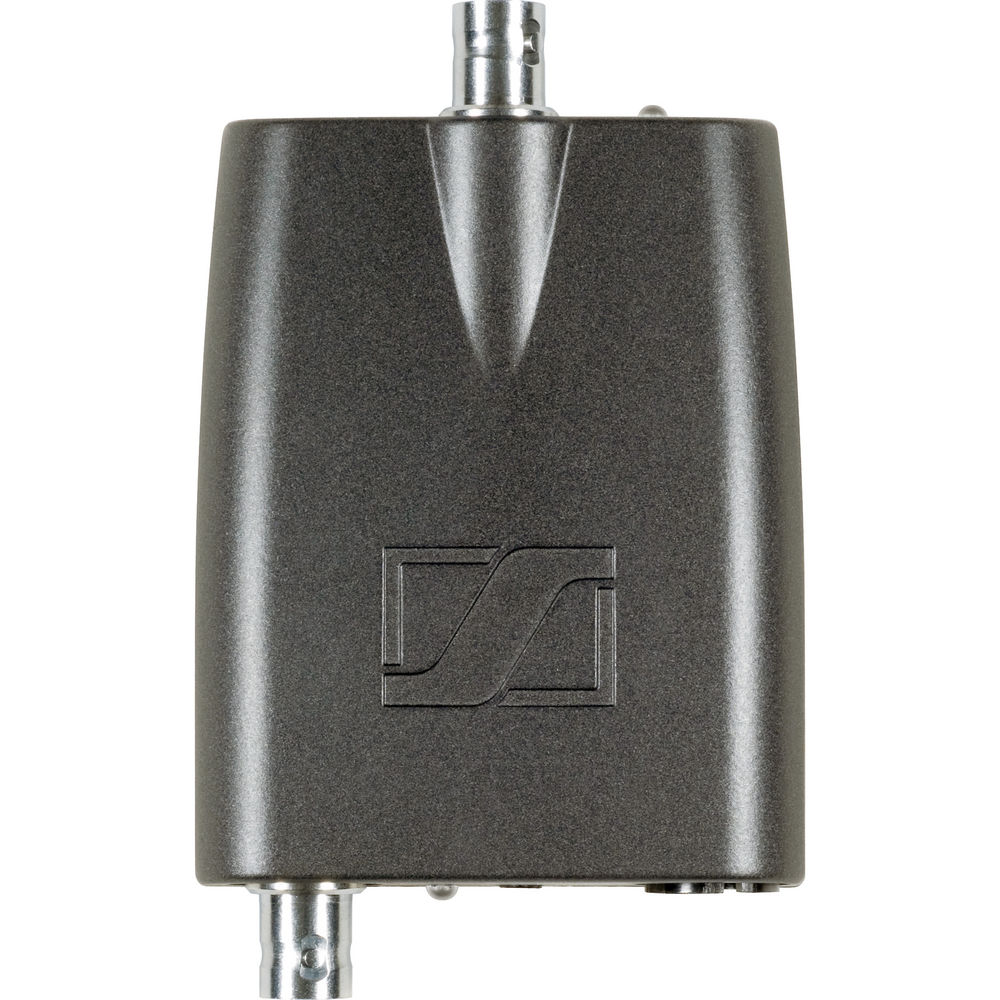

The Sennheiser AB 3700 Broadband Antenna Booster is an inline RF signal booster for the Sennheiser EM3731, EM3732 and EM3732 Command receivers. The antenna significantly boosts RF strength and gain during long BNC cable runs. The AB 3700 features up to 15dB of amplification and mounts to a standard 3/8" or 5/8" stud.

Amplification adjustable in 4 steps (up to 15 dB) to compensate for cable losses
DC powered from the receiver via the antenna cable
Bypass switch in case of power failure
LED operation indicator
Antenna booster housed in a rugged, splash-proof all-metal housing
Standard 3/8" or 5/8" mounting thread

Frequency Range	470-866MHz
Amplification	Bypass (-3dB), 5dB, 10dB, 15dB adjustable, without DC feed: -6 dB
Impedance	50 Ohms OIP3: > = 32dBm
Connection	2x BNC Sockets
Power Supply	9-15 V DC / 160-100 mA, DC feed via antenna cable (RF OUT socket)
Mount	3/8" or 5/8" thread
Dimensions	3.14 x 2.51 x 0.94" (80 x 64 x 24mm)
Weight	9.4 oz (265g)
