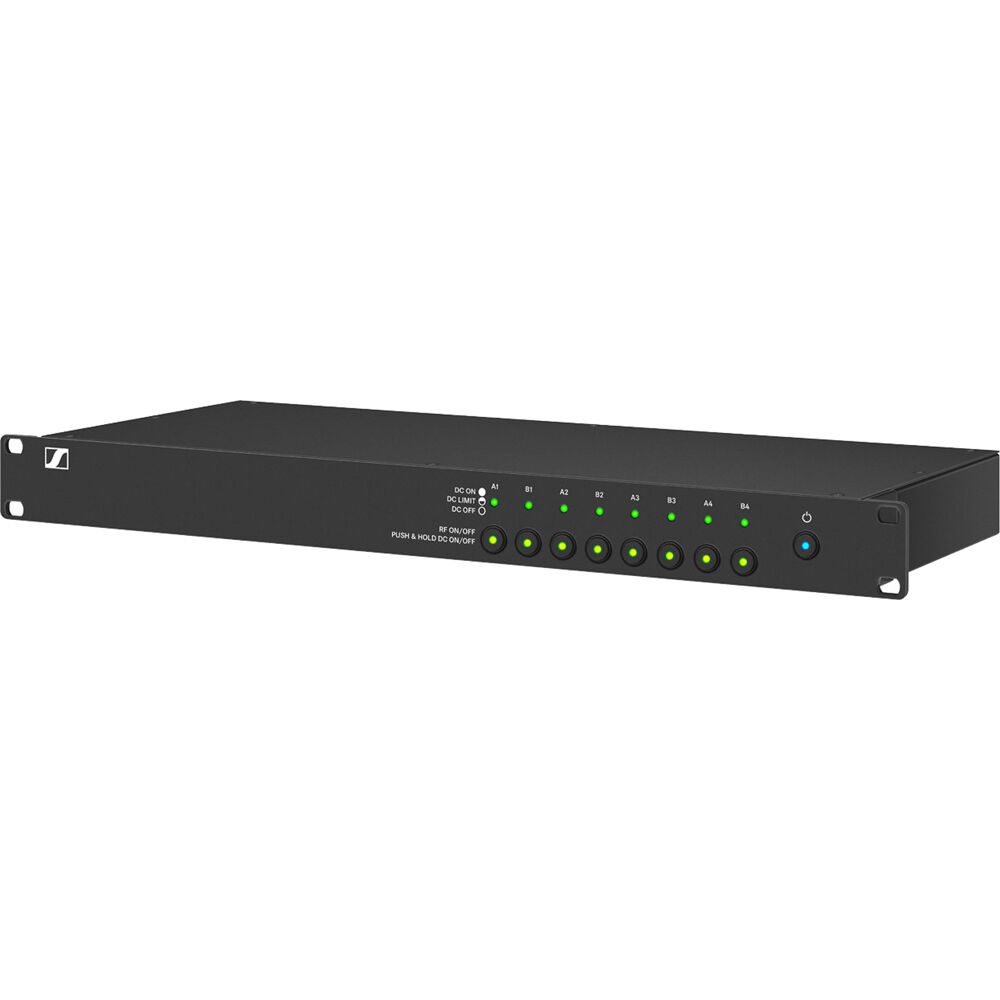

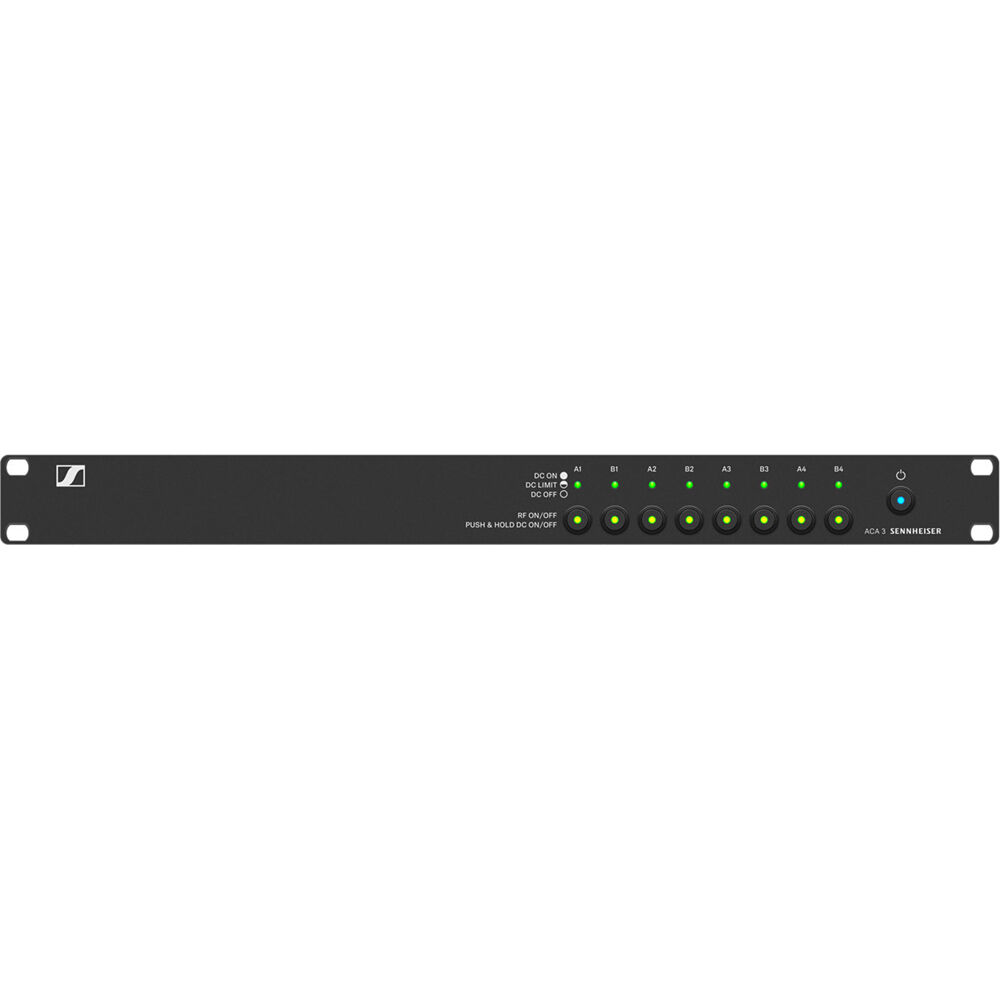

Expand your wireless coverage with the Sennheiser ACA 3, a dual-channel 4:1 antenna combiner compatible with all stationary Sennheiser analog and digital receivers. Well suited for use in larger venues, houses of worship, and broadcast installations with distributed antenna systems, each channel of the unit allows you to combine and distribute the RF signal from up to four connected antennas to a receiver. The front panel offers switchable DC power controls for the eight BNC inputs (four for each receiver) for active antennas or head amps. The RF signal from each antenna input can also be switched off independently, allowing you easily isolate unused antennas.
At a Glance
General
| Compatibility | Sennheiser Stationary Analog Receivers / Stationary Digital Receivers |
Display
| Panel Type | Single-Color LED |
| Size | Not Specified by Manufacturer |
| Touchscreen | No |
Inputs / Outputs
| Audio I/O | 8 x BNC Coaxial Input (Antenna) 2 x BNC Coaxial Output |
Power
| Power Source | AC Input (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Environmental
| Operating Temperature | 22 to 72°F / -10 to 40°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
Physical
| Mounting | Side: 2 x Rack Ears |
| Color | Black |
| Dimensions | 19 x 8.1 x 1.7" / 483 x 205 x 43 mm |
| Weight | 6.06 lb / 2.75 kg |
