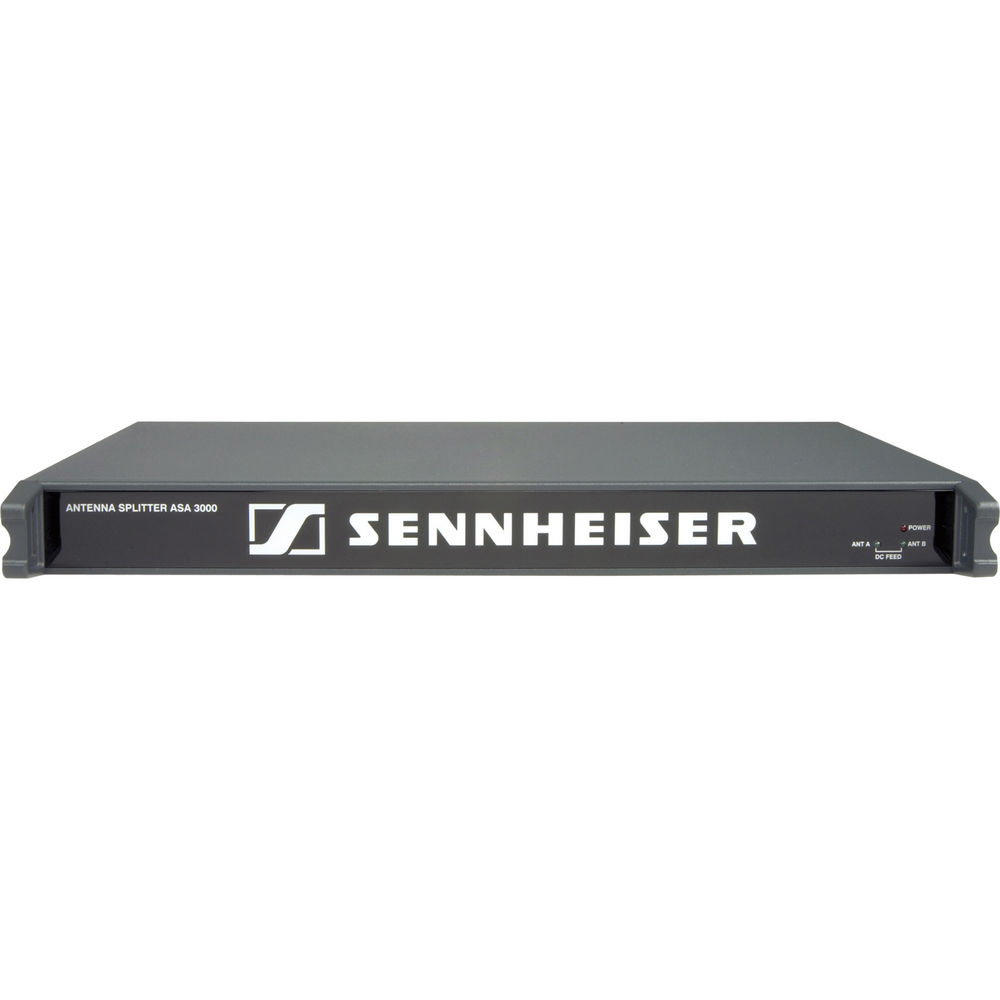

With the ASA 3000 2 x 1:8 Active Antenna Splitter from Sennheiser, up to 8 receivers (EM 3031) or twin receivers (EM 3032, EM 3532) can be operated with only 1 pair of diversity antennas. Each diversity section is fitted with a wideband input module, which can be exchanged for a selective input module.
Because of the built-in antenna boosters, the signals are routed without loss to the connected receivers. The active antenna splitter allows you to make receiver systems with up to 16 channels. The splitter is suited for use in multi-channel RF installations (fixed or mobile) or in permanent installations in small conference centers and venues.
RF Specification
| Antenna Signal | 2 x 1:8, active |
| Frequency Range | 470 to 870 MHz |
| Attenuation | +3 / -1 dB |
| Nominal Impedance | Inputs/Outputs: 50 Ω |
| Input Connections | A/B: BNC sockets |
| Output Connections | A1-A8/B1-B8: BNC sockets |
| Booster | At the Inputs A and B: 12 V, 70 mA maximum each, short circuit-proof |
Overall System
| Supply Voltage | 100 to 240 VAC, 50/60 Hz, nominal |
| Power Consumption | Maximum 8 VA |
| Temperature Range | 14 to 131°F (-10 to +55°C) |
| Dimensions | 19.0" (482.6 mm), 1U |
| Weight | Approximately 6.6 lb (3.0 kg) |
Packaging Info
| Package Weight | 11.552 lb |
| Box Dimensions (LxWxH) | 21 x 13.1 x 6.2" |
