Categories: Microphones

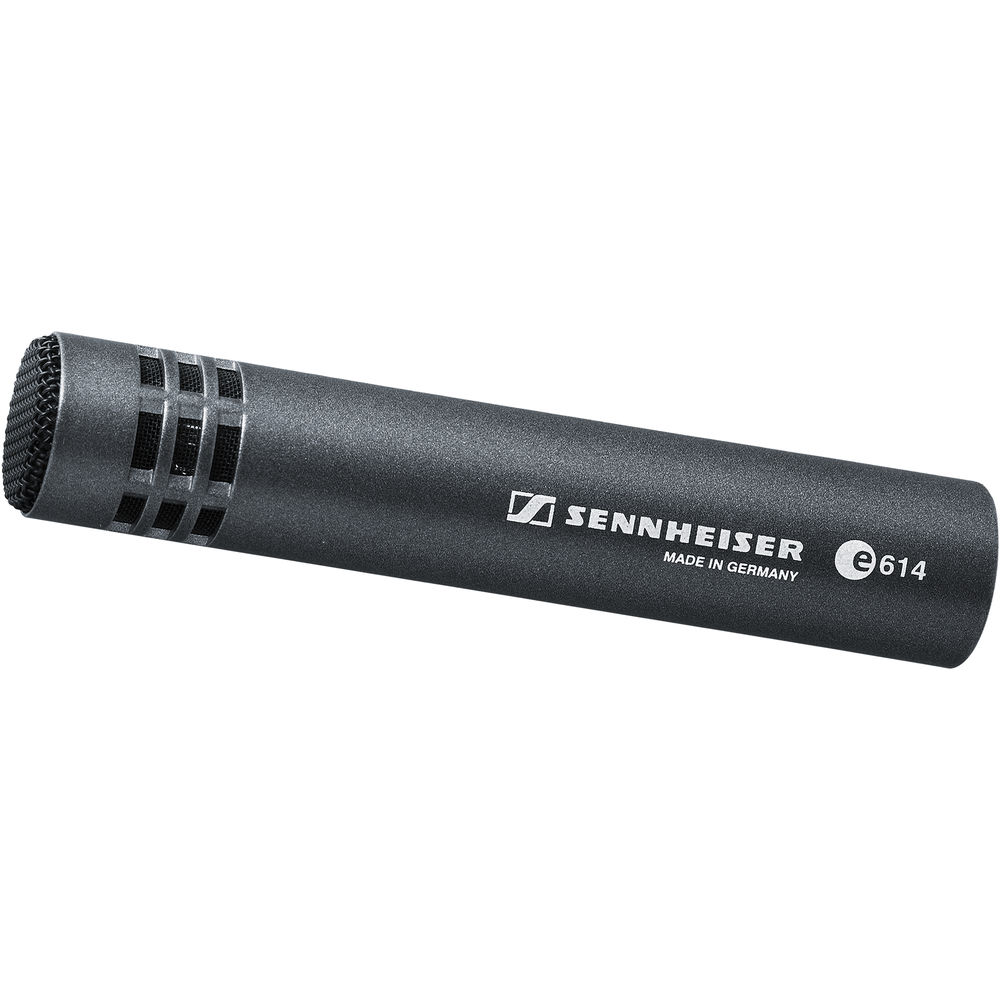

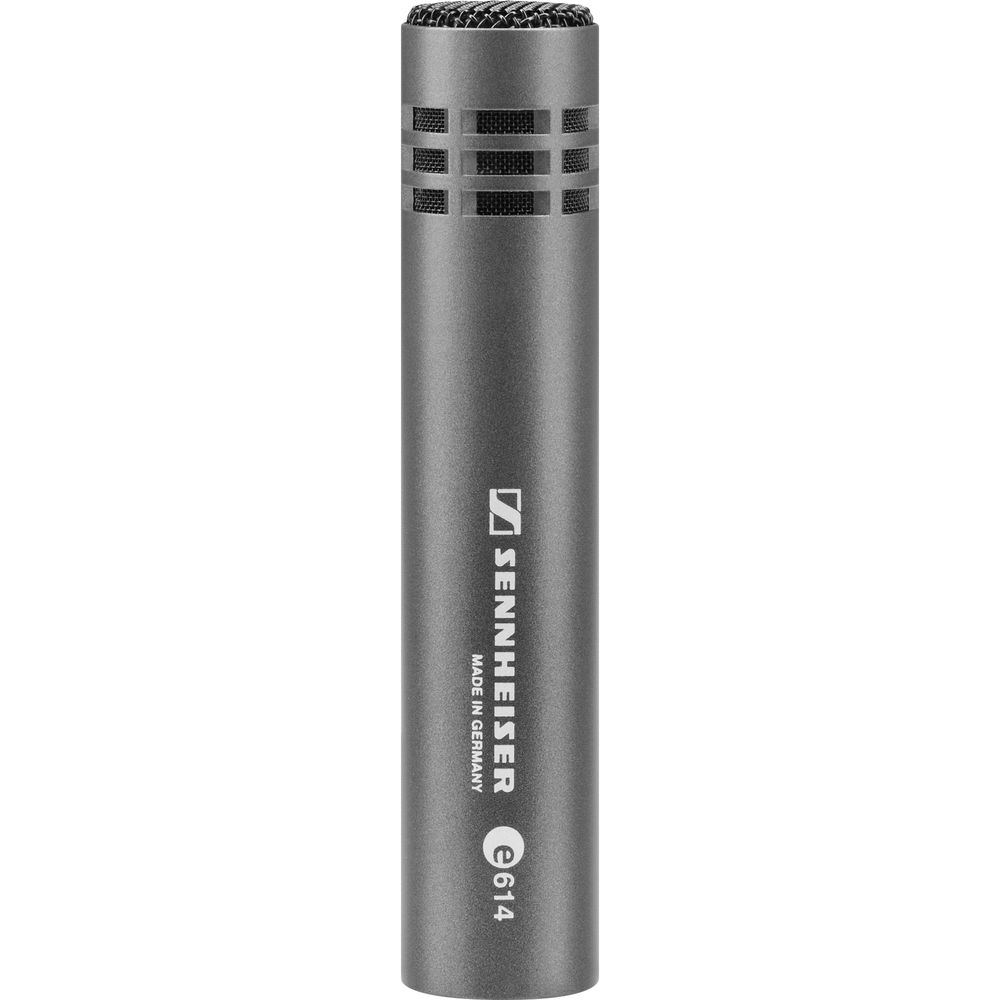

The e 614 from Sennheiser is a supercardioid electret condenser microphone designed for general recording and sound-reinforcement applications. The e 614 features high SPL handling and fast transient response making it ideal for drums, percussion, bass, guitar, brass and other instruments rich in transient response. The supercardioid polar pattern is effective in minimizing noise and ambiance at the off-axis sections of the microphone capsule. The wide, flat frequency response of 40 Hz to 20 kHz lends itself for use on vocals as well as instruments.
Excellent Transient Response
The fast transient response enables the e 614 to reproduce transient peaks without distortion and noise.
Supercardioid Pattern
The supercardioid polar pattern is effective in minimizing off-axis noise and ambiance.
Wide Frequency Response
The wide frequency response of 20 Hz to 40 kHz lends itself for use on vocals as well as instruments.
Microphone
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Polar Pattern | Supercardioid |
Performance
| Frequency Range | 40 Hz to 20 kHz |
| Maximum SPL | 139 dB SPL |
| Impedance | 50 Ohms |
| Load Impedance | 1000 Ohms |
| Sensitivity | Supercardioid: 3 mV/Pa at 1 kHz |
| Equivalent Noise Level | 24 dB A-Weighted 35 dB CCIR |
Power
| Operating Voltage | 12 to 52 V |
| Operating Current Consumption | 3 mA |
Physical
| Dimensions | ø: 0.79 x L: 3.94" / ø: 20 x L: 100 mm |
| Weight | 3.28 oz / 93 g |
Packaging Info
| Package Weight | 0.765 lb |
| Box Dimensions (LxWxH) | 10 x 10 x 3" |
