Sennheiser EW-DX SK Digital Wireless Bodypack Transmitter with Locking 3.5mm Connector (Q1-9: 470 to 550 MHz)

Sennheiser EW-DX SK Digital Wireless Bodypack Transmitter with Locking 3.5mm Connector (Q1-9: 470 to 550 MHz)

Name: Sennheiser EW-DX SK Digital Wireless Bodypack Transmitter with Locking 3.5mm Connector (Q1-9: 470 to 550 MHz)
Brand: SENNHEISER
SKU: 6302
Availability: InStock

Brand: SENNHEISER

MFR: EWDX SK (Q19)

Price Available Upon Request

For EW-DX Digital Wireless Receivers
Use with Lav/Headset Mic or Instrument
Locking 3.5mm TRS Connector
134 dB of Dynamic Range, 24-Bit Audio
3200 Frequencies on Equidistant Grid
e-Ink Display
Durable Metal Housing
Set Up/Operate from Receiver or Phone
In-Device Charging
8-Hour AA /12-Hour Rechargeable Battery

Items Included

Sennheiser EW-DX SK Digital Wireless Bodypack Transmitter with Locking 3.5mm Connector (Q1-9: 470 to 550 MHz)
Belt Clip
2 x AA Batteries
Pouch

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Wireless Microphone Systems

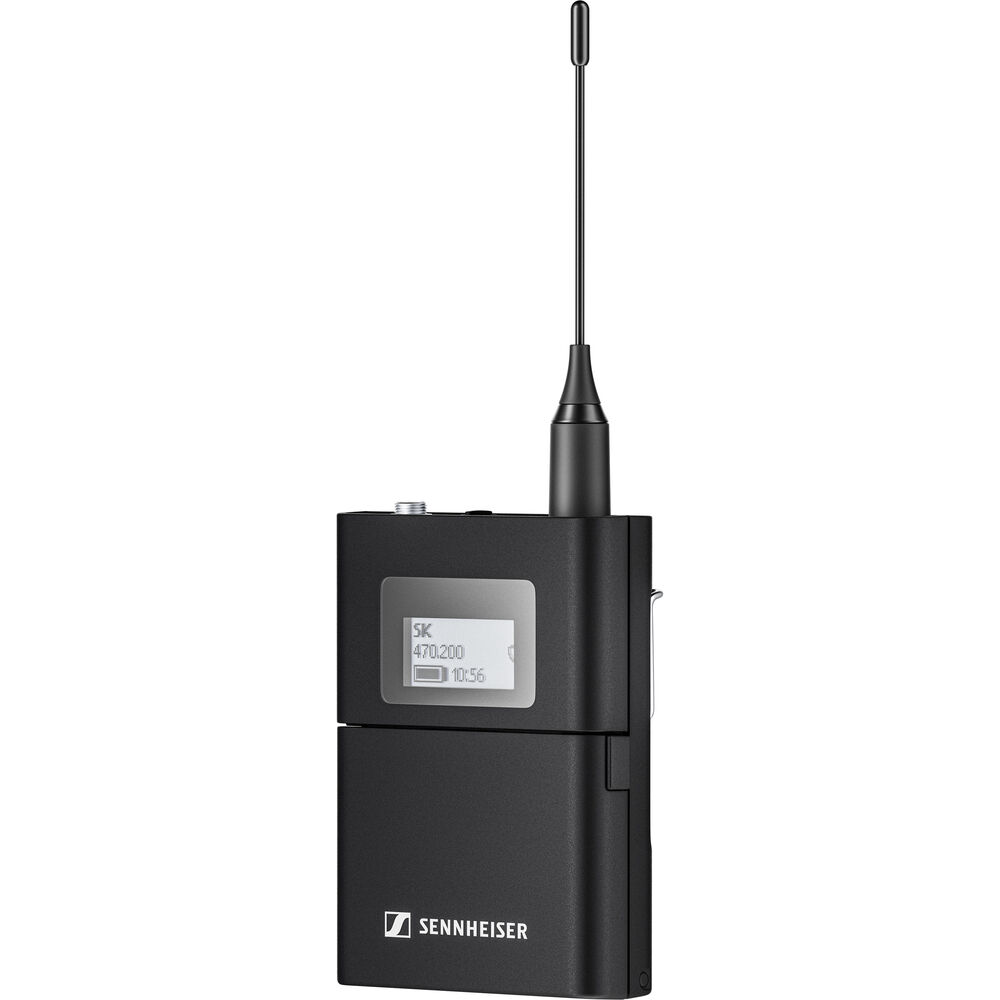

The Sennheiser EW-DX SK is a physical wireless transmitter compatible with the EW-DX wireless receiver. Lightweight and comfortable for actors and actresses, this backpack features a sturdy, all-metal exterior that's perfect for everyday use in the kitchen, church or stage. The

EW-DX SK features a locked 3.5mm TRS connector to accommodate your choice of lavalier or headset microphones, or adapter cables for guitar and bass. The transmitter concept has a very good dynamic range of 134 dB and can handle a variety of places without changing the signal level from popular singers and performers, instrument connections and even lines – mixers.

Features at a Glance

The EW-DX SK features a mute button that can be locked out and overridden from the receiver or a mobile device during a performance. It quickly pairs with the receiver via Bluetooth at a distance up to 120', at the press of a button.
The persistent e-Ink display helps you quickly name and identify the transmitter and allows you to see parameters, even when the unit is powered off.
The transmitter provides up to 8 hours of operation on two AA batteries (included) or 12 hours with a BA 70 lithium-ion rechargeable battery pack (available separately). External charging ports allow for in-transmitter charging using the CHG 70N network charging dock (available separately).
The EW-DX system utilizes an equidistant tuning grid that equally spaces 3200 frequencies across its wide 80 MHz bandwidth to prevent disruptive intermodulation issues that occur when multiple transmitters operate in confined spaces.
The system can be expanded with multiple transmitters and receivers to offer up to 134 channels in equidistant tuning grid mode, and up to 269 channels in Link Density mode.
The EW-DX SK is backward-compatible with EW-D receivers.

Compatible Mics and Instrument Cable with Locking 3.5mm TRS Connector

The sweat-resistant, subminiature MKE 2 omnidirectional lavalier mic offers a pristine, broadcast-quality sound and is easy to conceal.
The unobtrusive ME 2 omnidirectional lavalier mic provides a forgiving pickup pattern that captures sound equally well in every direction.
The ME 4 cardioid lavalier mic offers a narrower, feedback-resistant pickup pattern for louder events.
The ME 3 cardioid headset mic provides enhanced speech clarity for lectures and presentations.
The CI 1 instrument cable lets you connect the bodypack transmitter to a guitar, bass, or keyboard.

Wireless Technology	Digital UHF
RF Frequency Band	Q1-9: 470.2 to 550 MHz
RF Bandwidth	80 MHz
Frequency Step Size	25 kHz
RF Channel Scanning	Auto-Scan
Max Operating Range	328.1' / 100 m (Line of Sight)
Built-In Recorder	No
Mobile App Compatible	Yes: Android & iOS *As of September, 2022: Check with manufacturer for the most up-to-date compatibility
Bluetooth	5.1 LE
Bluetooth Operating Distance	120' / 36.6 m (Transmitter Sync, App Control)
Sample Rate/Resolution	24-Bit
Latency	1.9 ms
Encryption	AES 256

Transmitter

Transmitter Type	Bodypack
RF Output Power	10 mW (ERP) 10 mW (EIRP)
Audio I/O	1 x 1/8" / 3.5 mm TRS Female Input (Lockable)
Included Cable Connector	None
Muting	Mute Switch
Audio Input Level	2 to 4.35 V
Auto-Level Control	No
Frequency Response	20 Hz to 20 kHz -3 dB
Sync Method	Bluetooth
Antenna	1 x Flexible Whip, Fixed (Beltpack)
Power Requirements	Battery
Battery Type	2 x AA (Included) 1 x Sennheiser Battery Pack (Not Included)
Approx. Battery Life	8 Hours (Alkaline) 12 Hours (Sennheiser Battery Pack)
Display & Indicators	1 x Backlit LCD (Battery Status, Mute)
Housing	Metal
Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	5 to 95%
Dimensions	2.5 x 3.3 x 0.8" / 63 x 85 x 20 mm
Weight	4.2 oz / 120 g (without Batteries)
