Sennheiser EW-DX SKM Digital Wireless Handheld Transmitter with No Mic Capsule (R1-9: 520 to 607 MHz)

Sennheiser EW-DX SKM Digital Wireless Handheld Transmitter with No Mic Capsule (R1-9: 520 to 607 MHz)

Name: Sennheiser EW-DX SKM Digital Wireless Handheld Transmitter with No Mic Capsule (R1-9: 520 to 607 MHz)
Brand: SENNHEISER
SKU: 6340
Availability: InStock

Brand: SENNHEISER

MFR: EWDX SKM (R19)

Price Available Upon Request

For EW-DX Digital Wireless Receivers
Interchangeable Mic Capsule Design
134 dB of Dynamic Range, 24-Bit Audio
3480 Frequencies on Equidistant Grid
e-Ink Display
Durable Metal Housing
Set Up/Operate from Receiver or Phone
In-Device Charging
8-Hour AA /12-Hour Rechargeable Battery

Items Included

Sennheiser EW-DX SKM Digital Wireless Handheld Transmitter with No Mic Capsule (R1-9: 520 to 607 MHz)
2 x AA Battery

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Transmitter

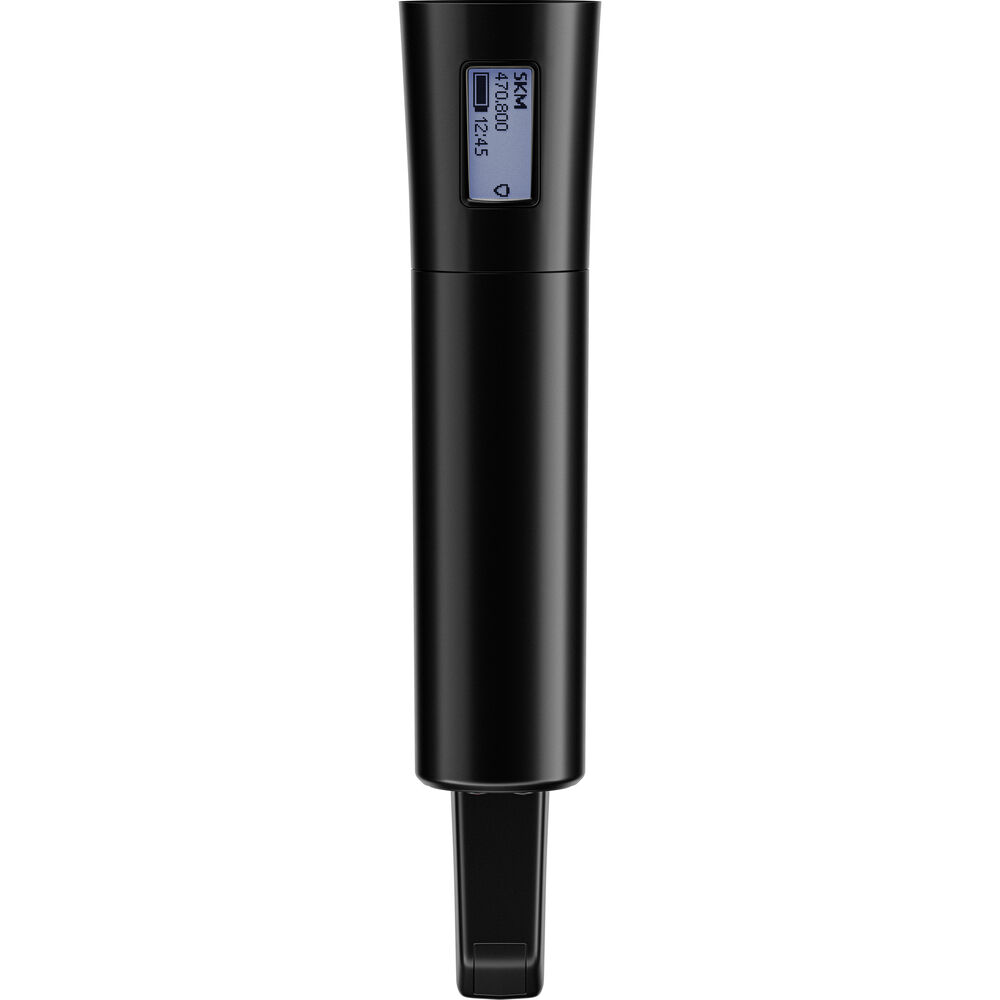

The Sennheiser EW-DX SKM is a mobile wireless transmitter/microphone compatible with the EW-DX wireless receiver. Ideal for a variety of performance and presentation applications, the transmitter is lightweight and comfortable for performers and presenters to hold. Its rugged, all-metal enclosure is designed to withstand daily use on stage. The transmitter does not include a microphone capsule, so you can choose the transmitter that suits your application.

Features at a Glance

With a remarkable 134 dB dynamic range on its input, the EW-DX SKM can handle a wide variety of sound sources, including loud vocalists and performers, all without requiring any gain adjustment. A trim control allows you to adjust the level for group performances.
The e-Ink display helps you quickly name and identify the transmitter and allows you to see parameters, even when the unit is powered off.
The transmitter provides up to 8 hours of operation on two AA batteries (included) or 12 hours with a BA 70 lithium-ion rechargeable battery pack (available separately). External charging ports allow for in-transmitter charging using the CHG 70N network charging dock (available separately).
Bluetooth allows you to quickly pair the transmitter and receiver with the press of a button at a distance up to 120'.
The EW-DX system utilizes an equidistant tuning grid that equally spaces 3480 frequencies across its wide 87 MHz bandwidth to prevent disruptive intermodulation issues that occur when multiple transmitters operate in confined spaces.
The system can be expanded with multiple transmitters and receivers to offer up to 146 channels in equidistant tuning grid mode, and up to 293 channels in Link Density mode.

Compatible Microphone Capsules

The EW-DX SKM offers an interchangeable capsule design that allows you to use a variety of optional dynamic and condenser mic capsules, with pickup patterns ranging from wide omnidirectional to cardioid to narrow supercardioid capsules include the MMD 835, MMD 845, MME 865, MMD 935, MMD 945, MMD 42, MM 435, MM 445, ME 9004, MD 5235, ME 5004, and Neumann KK204 to name a few.

Wireless Technology	Digital UHF
RF Frequency Band	R1-9: 520 to 607 MHz
RF Bandwidth	87 MHz
Frequency Step Size	25 kHz
RF Channel Scanning	Auto-Scan
Max Operating Range	328.1' / 100 m (Line of Sight)
Built-In Recorder	No
Mobile App Compatible	Yes: Android & iOS *As of September, 2022: Check with manufacturer for the most up-to-date compatibility
Bluetooth	5.1 LE
Bluetooth Operating Distance	120' / 36.6 m (Transmitter Sync, App Control)
Sample Rate/Resolution	24-Bit
Latency	1.9 ms
Encryption	AES 256

Transmitter

Transmitter Type	Handheld
RF Output Power	10 mW (ERP) 10 mW (EIRP)
Audio I/O	None
Included Cable Connector	None
Muting	None
Audio Input Level	2 to 4.35 V
Auto-Level Control	No
Frequency Response	20 Hz to 20 kHz -3 dB
Sync Method	Bluetooth
Antenna	1 x Internal (Handheld)
Power Requirements	Battery
Battery Type	1 x Sennheiser Battery Pack (Included) 2 x AA (Not Included)
Approx. Battery Life	12 Hours (Sennheiser Battery Pack) 8 Hours (Alkaline)
Display & Indicators	1 x Backlit LCD (Battery Status, Mute)
Housing	Metal
Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	5 to 95%
Dimensions	2 x 10.6" / 50 x 268 mm
Weight	10.7 oz / 304 g
