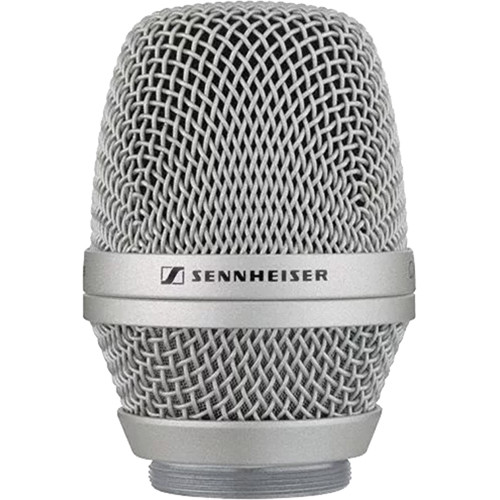

The nickel Sennheiser MD 5235 is a microphone capsule for handheld transmitters in the 3000/5000 Series. It is designed to mount on the SKM 5200 and all variants of the SKM 5000 transmitters.
The MD 5235 features a cardioid dynamic capsule with a design based on the Sennheiser e900 Series vocal microphones. It is acoustically optimized for loud-stage use, with sound characteristics that allow the vocalist to cut through high sound levels on stage.
Floating Directivity
Features
| Compatible Transmitters | Sennheiser: SKM5000, , |
| Operating Principle | Pressure Gradient |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
Performance
| Frequency Range | 40 Hz to 20 kHz |
| Maximum SPL | 163 dB SPL |
| Sensitivity | -54 dBV at 1 kHz |
Connectivity
| Output Connector | 1 x Concentric Ring 3-Pin |
Power
| Operating Voltage | Not Specified by Manufacturer |
Physical
| Color | Nickel |
| Mounting | Mounting Thread (via Integrated Hardware) |
| Mounting Thread Size | 1.25"-28 Male |
| Construction Material | Aluminum |
| Dimensions | ø: 1.97 x L: 2.87" / ø: 50 x L: 73 mm |
| Weight | 4.23 oz / 120 g |
Packaging Info
| Package Weight | 0.34 lb |
| Box Dimensions (LxWxH) | 4.1 x 3.4 x 2.6" |
