Categories: Microphones

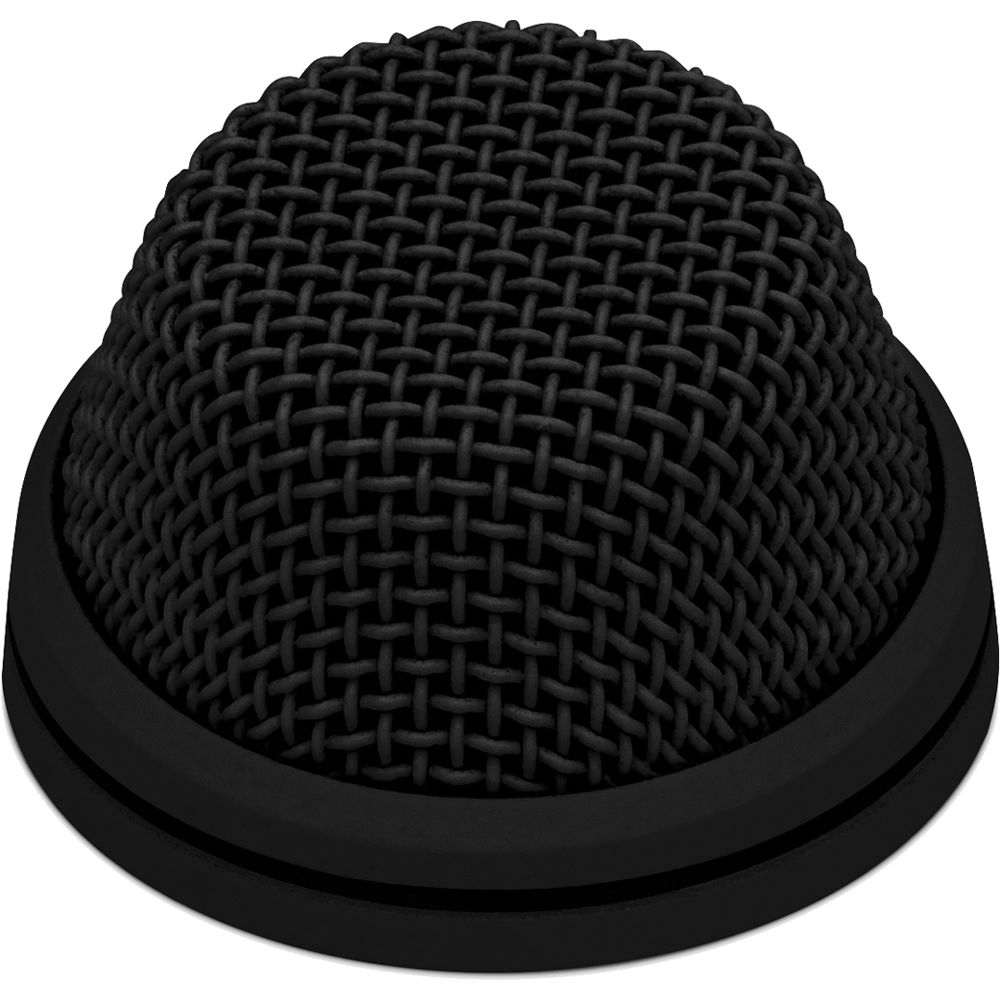

The black MEB 104 Cardioid Boundary Microphone from Sennheiser is for capturing audio in permanent installations such as conference rooms, boardrooms, lecture halls, school auditoriums and more. It features a Cardioid polar pattern and has a frequency response of 40 Hz to 20 kHz.
The MEB 104 boundary microphone allows easy surface installation in tables or ceiling tiles. It is powered by 24 to 48V phantom power. This capsule provides excellent speech intelligibility. The MEB 104 terminates in an XLR-3M connector. Also included is a hex-nut and two rubber rings for mounting.
Analog Performance
| Transducer | Condenser |
| Polar Pattern | Cardioid |
| Frequency Range | 40 Hz to 20 kHz |
| Equivalent Noise Level | 28 dB A-Weighted 38 dB CCIR |
| Maximum SPL | 125 dB SPL |
| Impedance | 200 Ohms |
| Sensitivity | 14 mV/Pa |
| Dynamic Range | 97 dB A-Weighted |
General
| Output Connectors | 1 x 3-Pin XLR |
| Operating Current Consumption | 3 mA |
| Operating Voltage | 24 V 48 V |
| Operating Temperature | 32 to 104°F / .00 to 40.00°C |
| Diameter | 1.12" / 28.5 mm |
| Weight | 2.12 oz / 60 g |
Packaging Info
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 4.5 x 3.4 x 1.7" |
