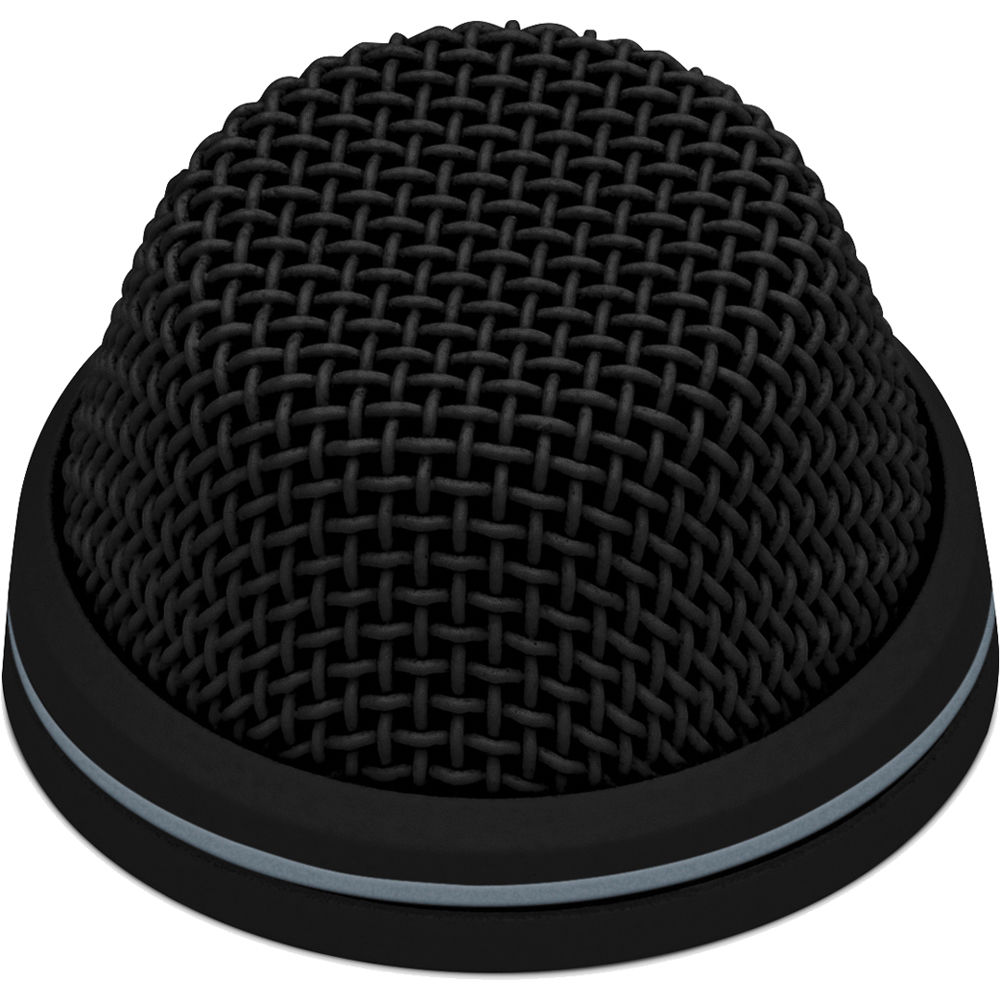

The black MEB 104-L Cardioid Boundary Microphone from Sennheiser is for capturing audio in permanent installations such as in conference rooms, boardrooms, lecture halls, school auditoriums and more. It features a bi-color LED for status indication and programmable button for On, On/Off, PTT, and PTM modes. It features a cardioid polar pattern and has a frequency response of 40 Hz to 20 kHz.
The MEB 104-L boundary microphone allows easy surface installation in tables or ceiling tiles. It is powered by 24 to 48V phantom power. This capsule provides excellent speech intelligibility. The MEB 104-L terminates in an XLR-5 pin connector. Also included are a hex-nut and two rubber rings for mounting.
Analog Performance
| Transducer | Condenser |
| Polar Pattern | Cardioid |
| Frequency Range | 40 Hz to 20 kHz |
| Equivalent Noise Level | 28 dB A-Weighted 38 dB CCIR |
| Maximum SPL | 125 dB SPL |
| Impedance | 200 Ohms |
| Sensitivity | 14 mV/Pa |
| Dynamic Range | 97 dB A-Weighted |
General
| Output Connectors | 1 x 5-Pin XLR |
| Operating Current Consumption | 6 mA |
| Operating Voltage | 24 V 48 V |
| Operating Temperature | 32 to 104°F / .00 to 40.00°C |
| Diameter | 1.12" / 28.5 mm |
| Weight | 2.12 oz / 60 g |
