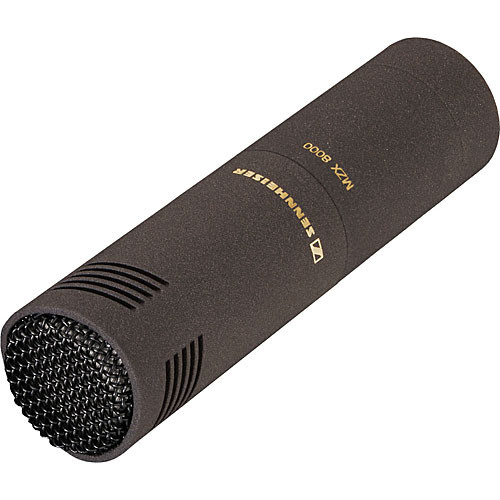

The MKH 8040 Compact Cardioid Condenser Microphone from Sennheiser is a stereo set of professional low-profile condenser microphones for capturing vocals, instruments, and ambiance in recording and sound reinforcement applications. The modular design consists of the MKHC 8040 cardioid capsule and the MZX 8000 XLR module output stage.
The cardioid capsule minimizes feedback and off-axis audio. The symmetrical transducer with two back-plates yields extremely low distortion. The wide frequency response provides exceptional detail and transparency. With its pristine audio quality and compact design, the MKH 8040 is great for many applications.
Cardioid Pickup
The cardioid polar pattern yields a generous pickup area while minimizing off-axis noise and feedback.
Modular Design
The modular design consists of the MKHC 8040 cardioid capsule and the MZX 8000 XLR module output stage.
Symmetrical Transducer
The capsule features a symmetrical transducer with two back-plates resulting in extremely low distortion.
Wide Frequency Response
A wide frequency response of 30 Hz to 50 kHz ensures accurate reproduction of instruments, ambiance, vocals, etc.
Microphone
| Form Factor | Stand/Boom Mount |
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | Condenser |
| Polar Pattern | Cardioid |
| Pad | None |
| High-Pass Filter | None |
| Tone Adjustment | None |
| Gain Adjustment | None |
| Indicators | None |
| On-Board Controls | None |
| Windscreen | Foam (Included) |
Performance
| Frequency Range | 30 Hz to 50 kHz |
| Maximum SPL | 142 dB SPL |
| Impedance | 25 Ohms |
| Load Impedance | 1000 Ohms |
| Sensitivity | -34 dBV/Pa at 1 kHz |
| Equivalent Noise Level | 13 dB A-Weighted 22 dB CCIR |
Connectivity
| Headphone Connector | None |
Power
| Bus Power | None |
| Operating Voltage | 48 V ± 4 V (Phantom Power) |
| Operating Current Consumption | 3.3 mA |
Physical
| Mounting | Mic Clip/Stand Adapter (Included) |
| Included Case | Hard Case |
| Included Filters | None |
| Dimensions | ø: 0.75 x L: 2.95" / ø: 19 x L: 75 mm |
| Weight | 1.94 oz / 55 g |
Packaging Info
| Package Weight | 1.6 lb |
| Box Dimensions (LxWxH) | 12.8 x 8.05 x 3.5" |
