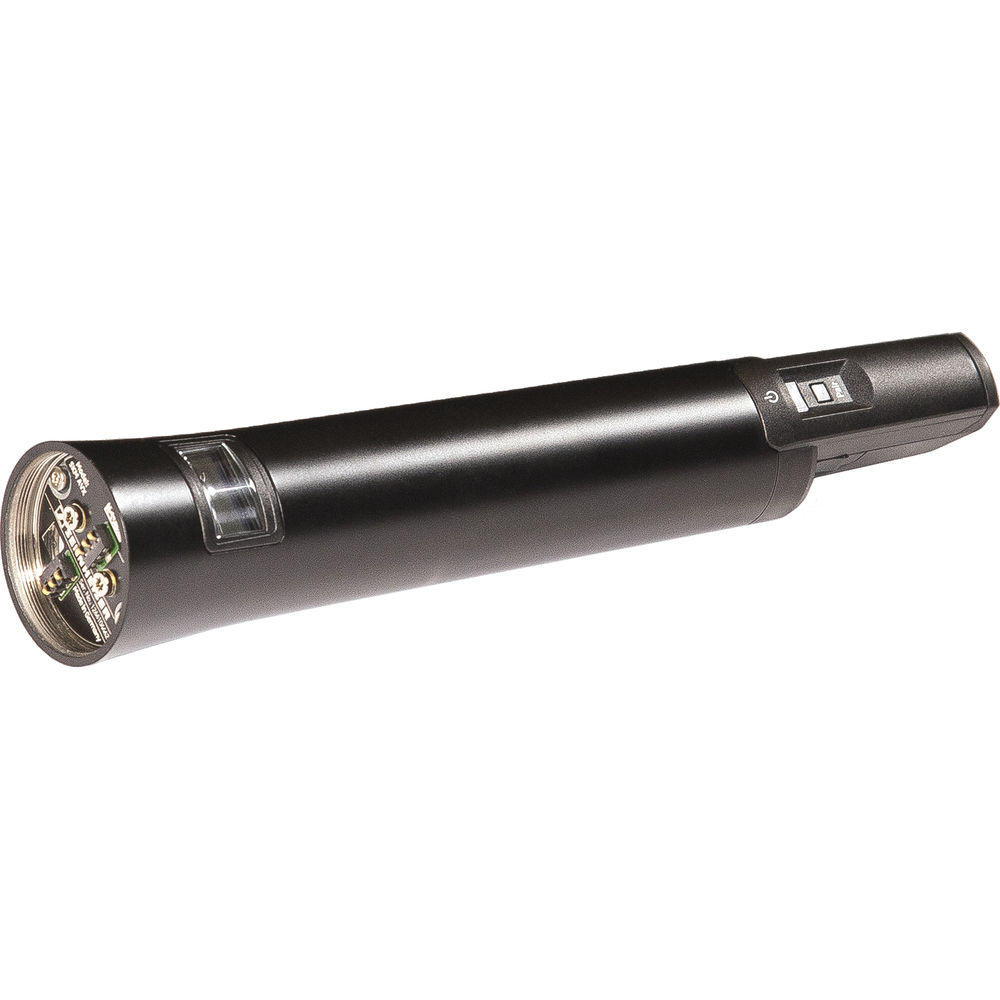

Sennheiser's SKM AVX 4 Digital Handheld Transmitter (without microphone pod) is a handheld transmitter for the SKM AVX 4 system and is completely stand-alone. It can be combined with a microphone capsule and receiver (both sold separately) to capture audio for video and audio use.
The AVX system makes radio frequency tuning a thing of the past. It matches the sensitivity of the camera without adjusting the microphone volume. It has AES 256 encryption and does not require a license.
Optimized Dynamic Range
Manages overload and distortions
Link Protection
Maintains reliable transmission
Auto Frequency Management
Streamlines and simplifies the setup process
AES 256 Encryption
Protects the system from signal interception by unauthorized parties
License-Free Operation
Provides a convenient wireless transmission solution
Metal Housing
Enables daily use for professional applications
System
| Frequency Response | 20 Hz to 20 kHz |
| Dynamic Range | >120 dB (A) |
| THD | Typical 0.1% |
| Audio Sampling | 24-Bit at 48 kHz |
| Signal to Noise Ratio | >90 dB (A) |
| RF Frequency Range | 1880 to 1930 MHz (Country Specific) |
| Modulation | GFSK with Return Channel |
| Diversity | TDMA Fast Switching Antenna Diversity |
| Latency | 19 ms |
| Temperature Range | Operation: 14 to 131°F / -10 to +55°C Storage: -4 to 158°F / -20 to +70°C |
Transmitter
| RF Output Power | 100 mW Average (250 mW Peak), Country Specific |
| Frequency Response | 50 Hz to 20 kHz |
| Input Sensitivity | Automatic Sensitivity Adjustment |
| Power Supply | Energy Pack BA 10 (Li-Ion 3.7 V) or 2 x AA Batteries |
| Operating Time | 15 Hours with Energy Pack (Typical) 10 Hours with AA Batteries (Typical) |
| Weight | 9.9 oz / 282 g Including Mic Head and Energy Pack |
Packaging Info
| Package Weight | 1.25 lb |
| Box Dimensions (LxWxH) | 13.7 x 3.3 x 2.9" |
