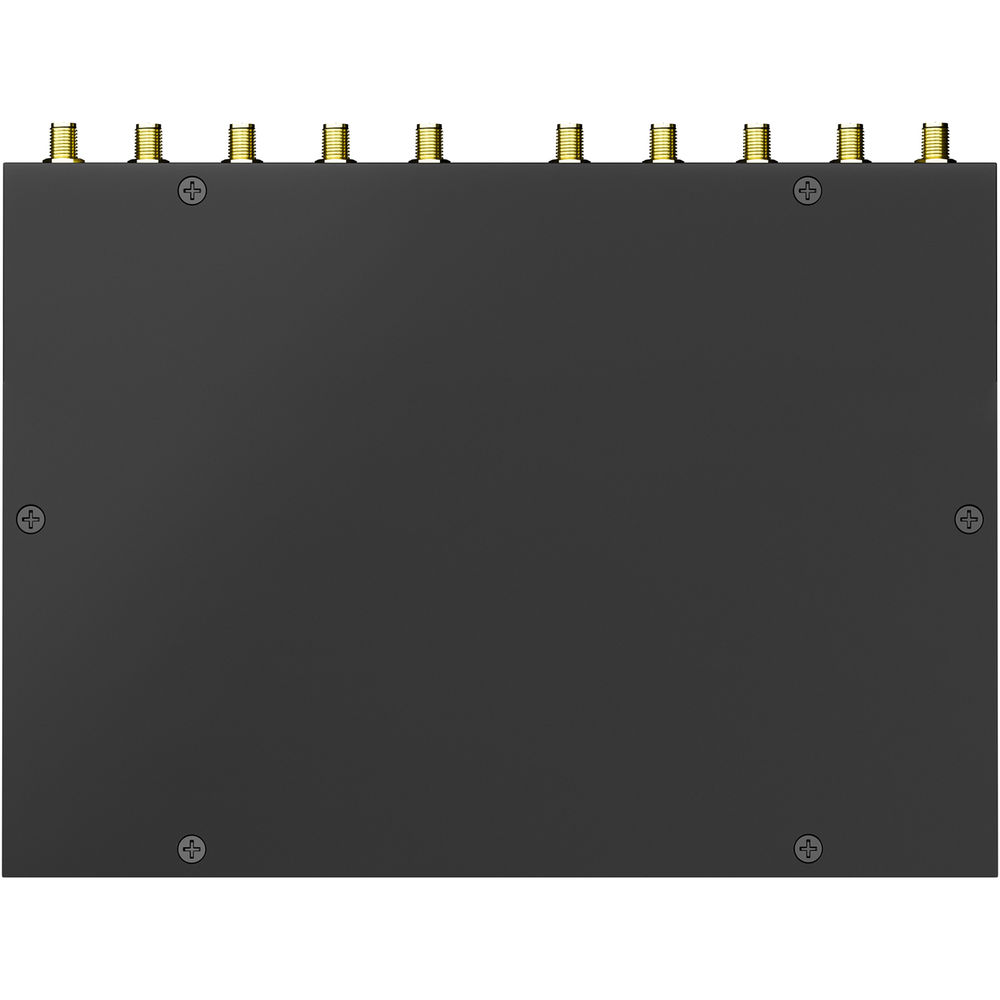

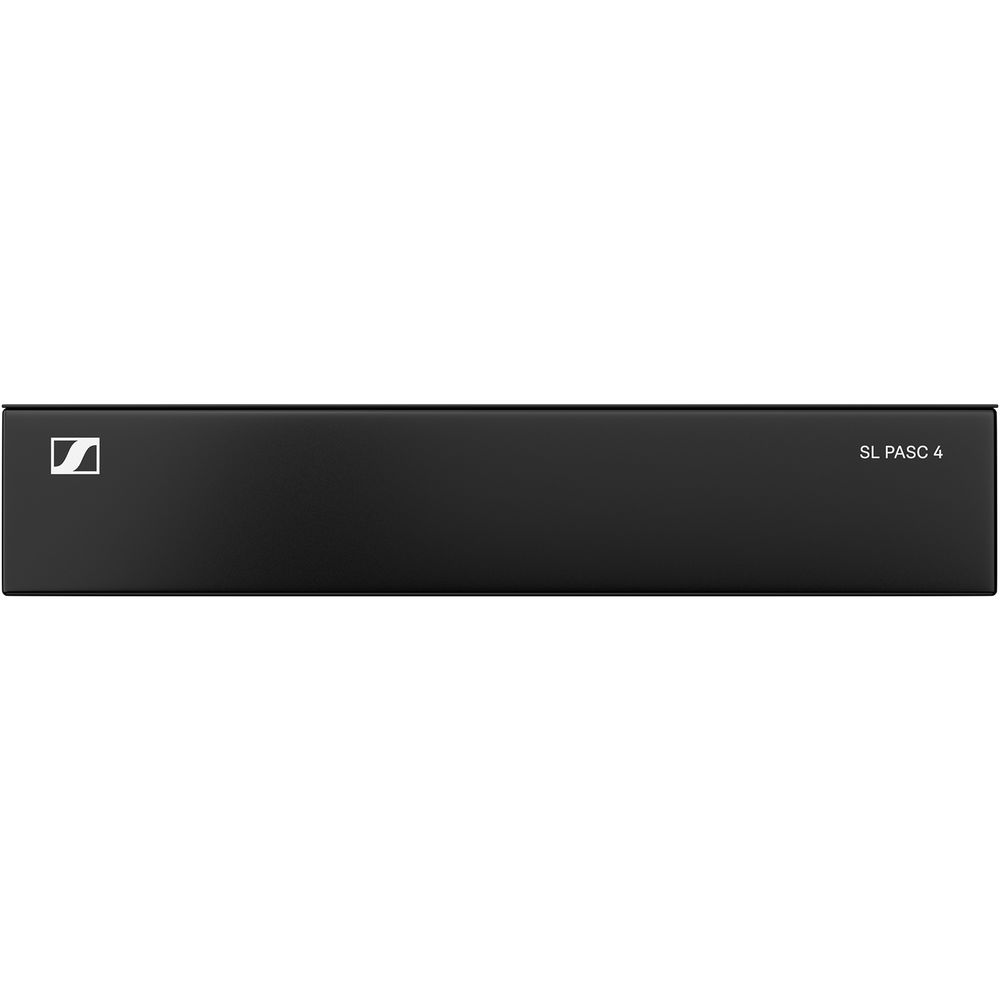

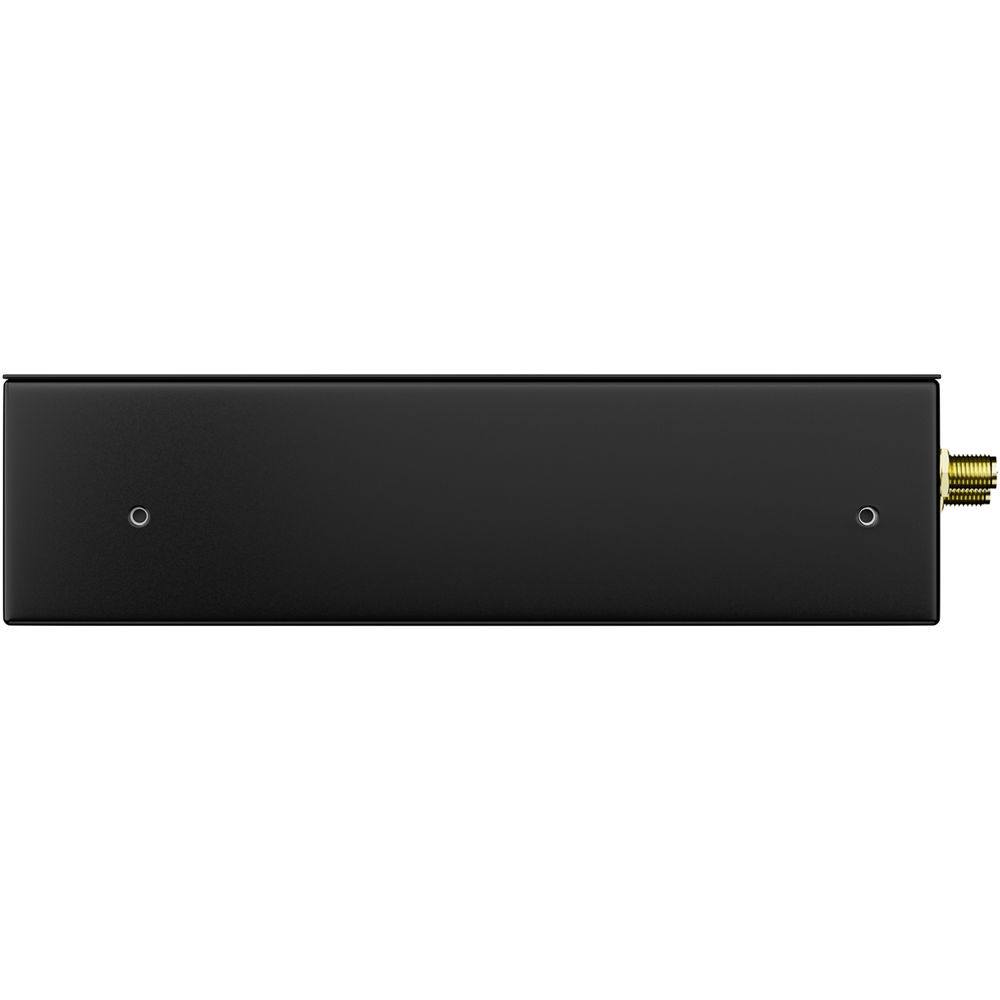

Sennheiser SL PASC 4 Four-Channel Passive Antenna Splitter/Combiner for SpeechLine Series (1880 to 1930 MHz)

Brand: SENNHEISER

MFR: SL PASC 4

Price Available Upon Request
  • For SpeechLine Digital Wireless Mics
  • For up to Four SL Rack Receiver DW
  • Connects to AWM 2 or AWM 4 Antenna
  • 8 x SMA-RP Cables

Items Included


  • Sennheiser SL PASC 4 Four-Channel Passive Antenna Splitter/Combiner for SpeechLine Series (1880 to 1930 MHz)
  • 8 x SMA-RP Cables (2')
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

The Sennheiser SL PASC 4 is a passive, four-channel true diversity antenna splitter/combiner for the SpeechLine Digital Wireless microphone series.

It is used to distribute the antenna signals from up to four SpeechLine Digital Wireless radio links. In combination with the AWM 2 or AWM 4 remote antennas (both available separately), the number of required antenna cables is reduced to a minimum.

Connect the SL PASC 4 to the rack receivers using the supplied SMA-RP cables.

Features

  • Four-channel passive antenna combiner/splitter
  • 1880 to 1930 MHz (DECT range)
  • 8 x RF outputs for connecting up to four SL Rack Receiver DW units
  • 2 x RF inputs to connect an AWM 2 or AWM 4 antenna
  • 10 x RP-SMA (AC coupled) connectors
  • 8 x SMA-RP cables

Type4-Channel, Connects to a maximum of Four Receivers
Frequency BandDECT: 1880 to 1930 MHz
Connectors10 x RP-SMA (AC-Coupled)
Attenuation8 dB Typ.
Input Power1.5 W, Max
ColorBlack
Operating Temperature-40 to 185°F / -40 to 85°C
Dimensions8.3 x 6.3 x 1.6" / 210.0 x 160.0 x 41.0 mm
Weight23.4 oz / 663.0 g
