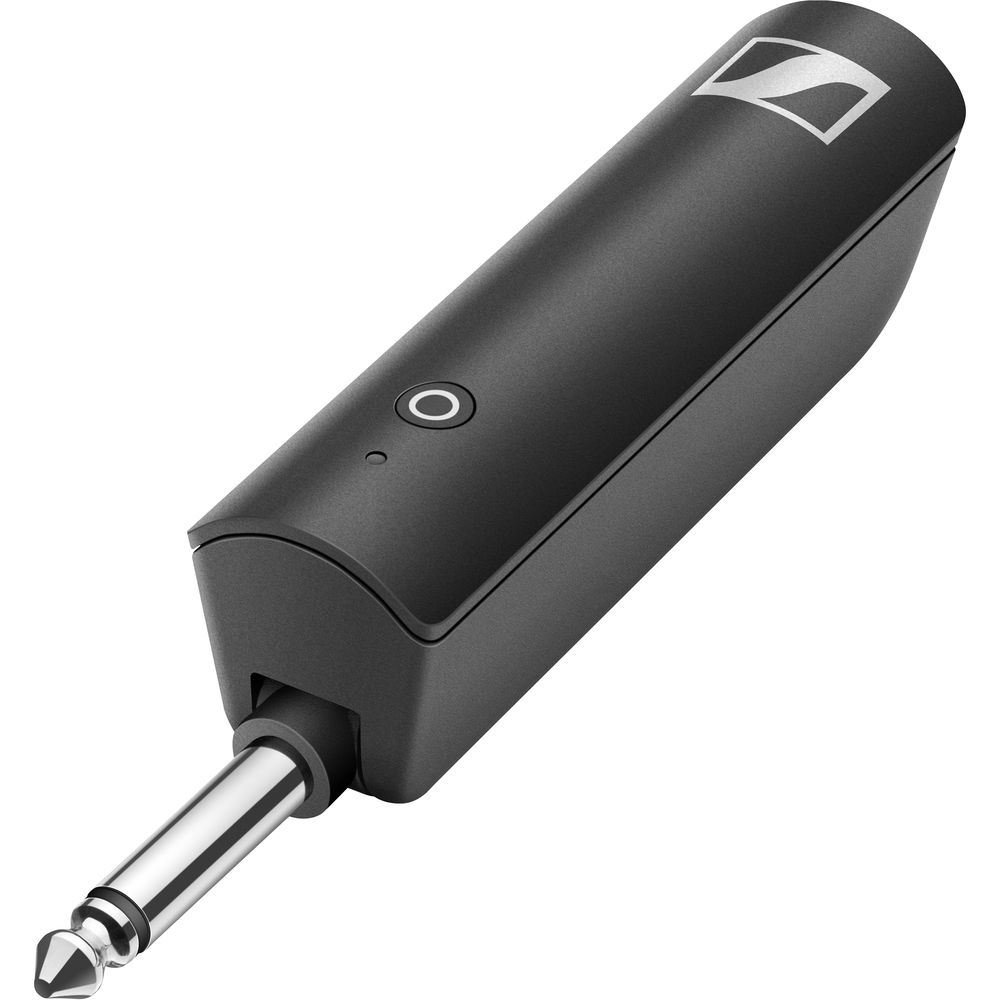

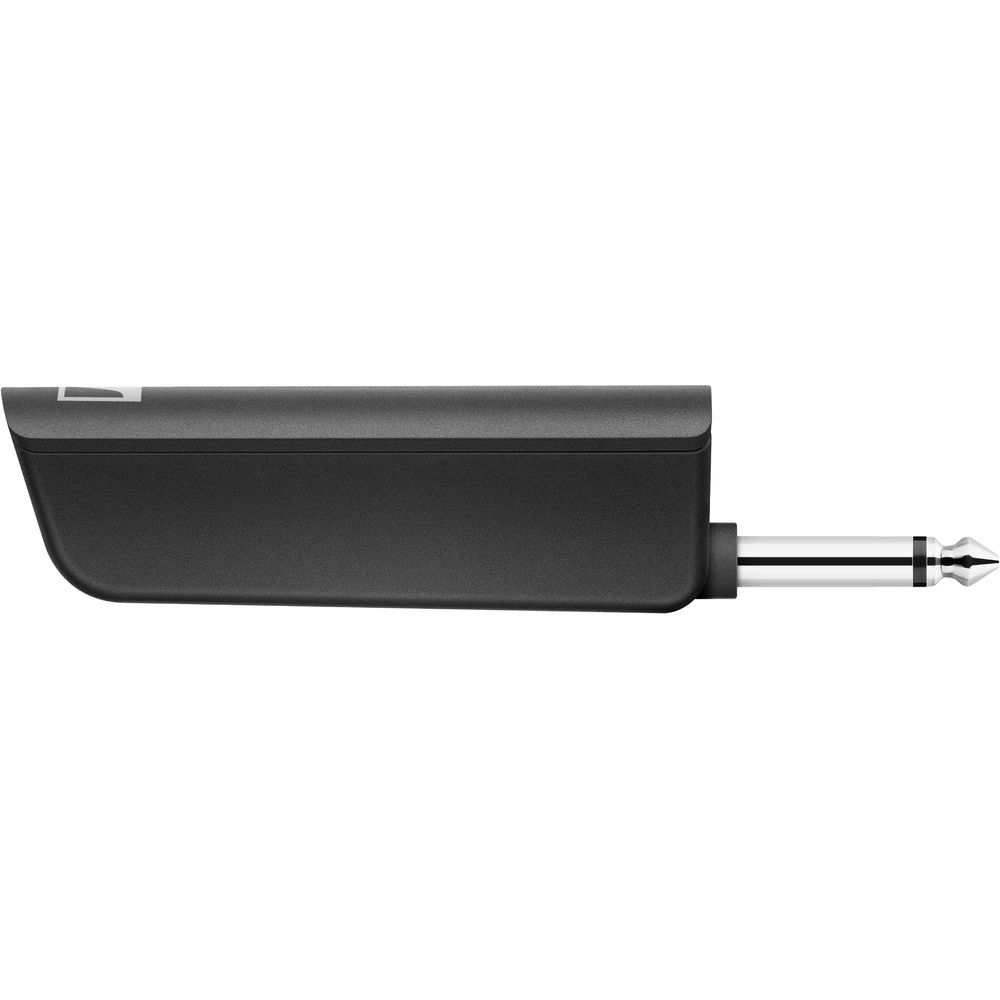

Sennheiser XSW-D INSTRUMENT TX 1/4" Plug-On Transmitter (2.4 GHz)

Sennheiser XSW-D INSTRUMENT TX 1/4" Plug-On Transmitter (2.4 GHz)

Name: Sennheiser XSW-D INSTRUMENT TX 1/4" Plug-On Transmitter (2.4 GHz)
Brand: SENNHEISER
SKU: 6317
Availability: InStock

Brand: SENNHEISER

MFR: XSW-D INSTRUMENT TX

Price Available Upon Request

For Use with XSW-D Wireless Mic System
1/4" Plug Input Connector
For Electric, Acoustic, Bass Guitars
Easy to Use, Plug & Play Operation
Lightweight Miniature Housing
Low Latency for Tighter Performance
USB-Rechargeable 5-Hour Battery
Includes USB Charging Cable
5 Systems at Once Max, Up to 250' Range

Items Included

Sennheiser XSW-D INSTRUMENT TX 1/4" Plug-On Transmitter (2.4 GHz)
USB Type-A to USB Type-C Charging Cable

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Transmitter

The XSW-D INSTRUMENT TX 1/4" plug-in transmitter is part of the Sennheiser XSW-D digital wireless system and is available as a separate product when you're ready to add another to the system or change locations. It plugs directly into the output of your guitar or instrument just like a guitar cable. /4" male connector. Plug it in, turn it on and you're ready to play right away, simplifying your setup so you can focus on playing with confidence.

Plug In, Turn On: It Works

The 1-button, 1-LED concept with single-button interface and status indicator effortlessly handles power and linking tasks for you—without the need for any additional button pressing.

(For optimal results, use of the XSW-D is recommended in environments with limited Wi-Fi / 2.4 GHz traffic.)

Step Up to Sennheiser Sound Quality

Sennheiser wireless systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows first-time and budget-conscious users to get their hands on genuine Sennheiser sound quality without breaking the bank.
Analog wireless systems need to squash your signal to operate in the FM band, resulting in a thin sound with a high noise floor. The XSW-D uses digital technology to preserve the dynamic range of your signal and deliver a crisp, clean, guitar sound with all the nuances of your performance.
On stage, timing is critical, and the XSW-D uses the aptX Live codec to deliver an impressively low latency of 3.9ms so you don't experience any lag when playing, keeping you on point and in the groove.

Easy 2.4 GHz Digital Wireless

Nothing ruins a take like hearing the weather report coming through your amp. Unlike traditional analog wireless systems, the XSW-D digital system operates in the 2.4 GHz ISM band, protecting the integrity of your signal from interruptions and drop outs caused by TV channels, radios, or other sources.
Thanks to Sennheiser's channel allocation and interference management technology, the system selects the best operating frequency and automatically switches to a clean channel to provide reliable transmission at a distance up to 250' line of sight.

License-Free Operation Worldwide

Because the XSW-D system operates in the license-free 2.4 GHz band, you don't have to worry about local licensing laws, frequency coordination, and other technical hassles.
Simply let the system pick a channel for you, and start playing—whether you're working at home or anywhere in the world.

Other Features

Eco-friendly USB-rechargeable lithium-ion battery—1-hour charging to reach 50% of battery time
5-hour total battery life gives you plenty of playing time
Conveniently recharge battery via USB while in operation or during breaks throughout the day
Mute from either transmitter or receiver
Up to five systems can be operated simultaneously in the same environment
Multi-pairing lets you quickly switch between multiple transmitters linked to one receiver (note that only one transmitter can broadcast to one receiver at a time)

Wireless Technology	Digital UHF (2.4 GHz)
RF Frequency Band	2400 to 2483.5 MHz
RF Bandwidth	83.5 MHz
RF Channel Scanning	Auto-Scan
Max Operating Range	250' / 76.2 m
Built-In Recorder	No
Timecode Support	No
Mobile App Compatible	No *As of February, 2023: Check with manufacturer for the most up-to-date compatibility
Latency	< 4 ms
Encryption	None
Modulation	GFSK
THD	<0.1 %

Transmitter

Transmitter Type	Clip-On
RF Output Power	Not Specified by Manufacturer
Audio I/O	1 x 1/4" TRS Male Input
Included Cable Connector	None
Pad	None
Muting	None
Auto-Level Control	No
Signal Processing	None
Frequency Response	10 Hz to 18 kHz
Sync Method	Proprietary
Antenna	1 x Internal
Power Requirements	Battery
Battery Type	1 x Built-In Rechargeable
Internal Battery Capacity	850 mAh
Battery Charging Time	3 Hours
Approx. Battery Life	5 Hours
USB/Lightning I/O	1 x USB-C (Charging)
Display & Indicators	1 x LED (Battery Status, Power)
Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	95%
Dimensions	4.8 x 0.9 x 1.1" / 122 x 24 x 28 mm
Weight	2.7 oz / 77 g
