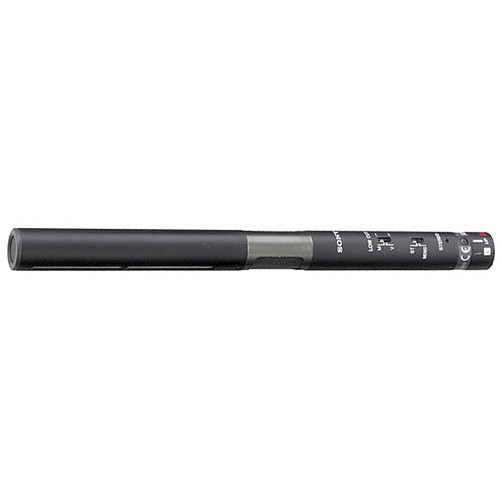

The Sony ECM-680 Stereo Shotgun Microphone provides both M/S (Mid-Side) stereo, and mono audio capturing, at the touch of a switch. The electret-condenser, unidirectional (cardioid) ECM-680, features internal M/S decoding for true stereo placement.
In mono mode, the ECM-680 captures audio like a true shotgun microphone, with superb audio rejection and increased range. The wide frequency response, excellent signal-to-noise ratio and wide dynamic range result in pristine audio reproduction. Measuring only 9-inches long, the ECM-680 is an ideal solution for camera mount applications.
M/S Stereo and Mono Capturing
The electret-condenser, unidirectional (cardioid) ECM-680 features internal M/S decoding for true stereo placement. In mono mode, the ECM-680 captures audio like a true shotgun microphone, with superb audio rejection and increased range.
Pristine Audio Quality
The wide frequency response, excellent signal-to-noise ratio and wide dynamic range result in pristine audio reproduction.
Built-in Low Cut Filter
Built-in, two position low-cut filter switch eliminates unwanted low-frequency noise and ambiance.
Key Specs
| Form Factor | Camera-Mount / Shotgun Mic / Stand/Boom Mount |
| Capsule | 2 x Electret Condenser |
| Polar Pattern | Supercardioid, Unidirectional |
| Frequency Range | Unidirectional: Show More |
| Maximum SPL | 124 dB SPL |
Microphone
| Form Factor | Camera-Mount / Shotgun Mic / Stand/Boom Mount |
| Intended Sound Sources | Speech/Voice Over |
| Sound Field | Mono, Stereo |
| Capsule | 2 x Electret Condenser |
| Polar Pattern | Supercardioid, Unidirectional |
| Pattern Selection | Switched |
| Pad | None |
| High-Pass Filter | None |
| Tone Adjustment | None |
| Gain Adjustment | None |
| Windscreen | Foam (Included) |
Performance
| Frequency Range | Unidirectional: 50 Hz to 20 kHz Supercardioid: 40 Hz to 20 kHz |
| Maximum SPL | 124 dB SPL |
| Load Impedance | 100 Ohms +/- 20% |
| Sensitivity | Unidirectional: -28 dB Supercardioid: -32 dB |
| Dynamic Range | Unidirectional: 104 dB Supercardioid: 106 dB |
| Signal-to-Noise Ratio | Unidirectional: 74 dB Supercardioid: 76 dB |
| Equivalent Noise Level | Unidirectional: 21 dB Supercardioid: 20 dB |
Connectivity
| Headphone Connector | None |
| Cable Length | 15.0" / 380 mm |
Power
| Operating Voltage | 40 to 52 V |
Physical
| Color | Black |
| Mounting | Boom, Camera/Shoe-Mount, Mic Clip/Stand Adapter (with Included Hardware) |
| Included Case | Soft Case |
| Included Filters | None |
| Dimensions | ø: 0.8 x L: 9.8" / ø: 20 x L: 250 mm |
| Weight | 3.7 oz / 105 g |
Packaging Info
| Package Weight | 2.2 lb |
| Box Dimensions (LxWxH) | 15.7 x 5.4 x 0.01" |
