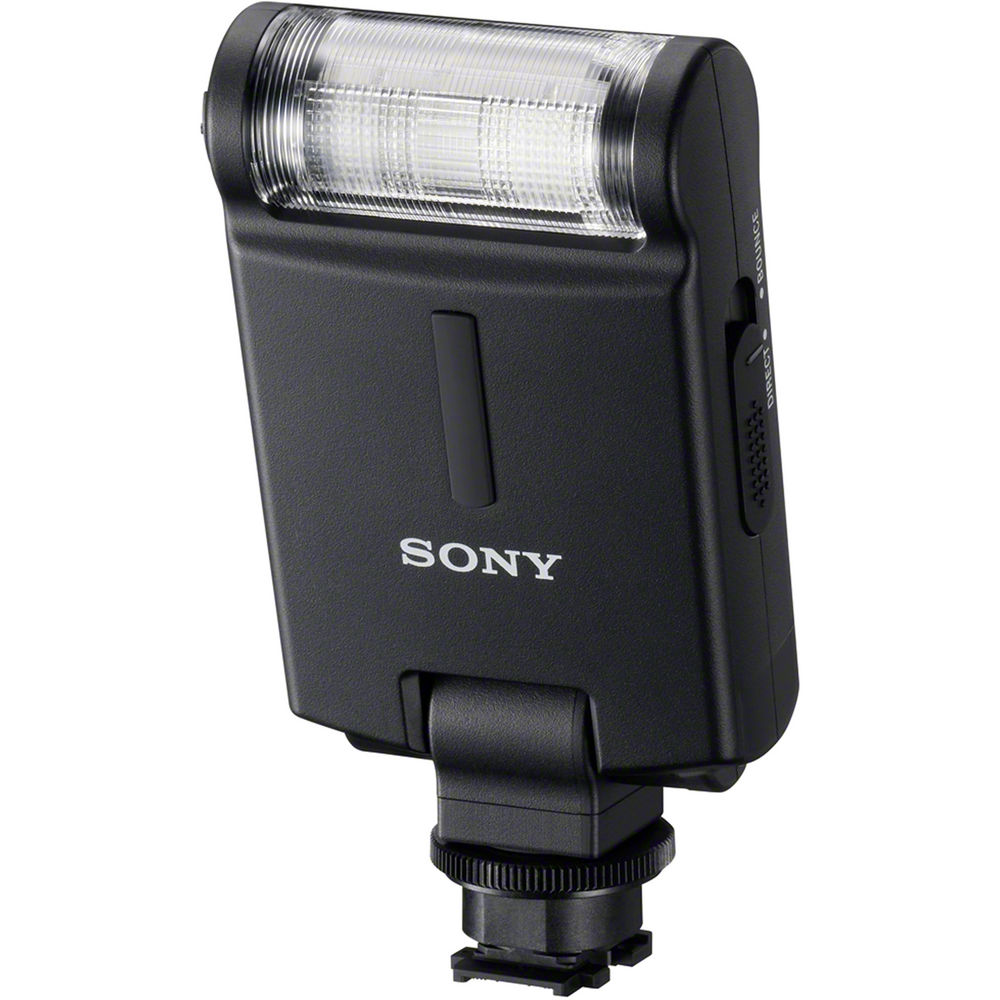

With a notably slim, compact design and ADI / P-TTL support, the HVL-F20M External Flash from Sony is ideal for those looking to add a little fill light to their images or for use as a wireless TTL controller for off-camera flash units without adding too much weight to their gear bag. It offers a modest guide number of 66' at ISO 100 and 50mm along with two coverage settings for 27mm or 50mm with full-frame sensors. Also, the unit can tilt the flashtube upward 75° for achieving softer, more diffuse bounce lighting.
For remote triggering of additional off-camera flash units, the HVL-F20M is able to work as a TTL controller. Also, it has slow, first and second curtain sync settings and will recycle in 0.1 to 5 seconds. Additionally, it runs on 2 AAA batteries and comes with a terminal protector cap and a carrying case.
This unit is compatible with Sony's Multi Interface Shoe and is not natively compatible with the older Sony/Minolta Auto-Lock Accessory Shoe. Though, with the use of ADP-AMA Shoe Adapter, Sony cameras with the Auto-Lock Accessory Shoe can be adapted to use Multi Interface Shoe external flashes with full compatibility.
| Guide Number | 65.62' / 20 m at ISO 100 (50 mm Position) |
| Bounce Head | 0 to +75° |
| Exposure Control | Sony ADI / P-TTL |
| Wireless Operation | Optical Pulse (TTL) Up to 16.4' / 5 m |
| Internal Power | 2 x AAA (Alkaline, NiMH) |
Flash Head
| Guide Number | 65.62' / 20 m at ISO 100 (50 mm Position) |
| Coverage | Full-Frame 27 to 50 mm |
| Angle of Coverage | 46° 74.3° (with Wide-Angle Adapter) |
| Bounce Head | 0 to +75° |
| Swivel Head | None |
| Recycle Time | Approx. 0.1 to 5 Seconds |
| Secondary Illumination | None |
Exposure Control
| Exposure Control | Sony ADI / P-TTL |
| Flash Modes | Second-Curtain Sync, Slow Sync |
| Flash Compensation | -3 to +3 EV (1/3 EV Steps) |
Wireless
| Wireless Operation | Optical Pulse (TTL) Up to 16.4' / 5 m |
| Wireless Channels | 1 |
| Wireless Groups | 1 |
Power
| Internal Power | 2 x AAA (Alkaline, NiMH) |
| External Power Pack Compatible | No |
General
| Mount | Sony Multi-Interface Shoe |
| Off-Camera Terminal | None |
| Dimensions (W x H x D) | 2.4 x 4.5 x 0.9" / 61 x 114.3 x 22.9 mm |
| Weight | 3.7 oz / 105 g |
Packaging Info
| Package Weight | 0.4 lb |
| Box Dimensions (LxWxH) | 7.5 x 4.5 x 2.18" |
