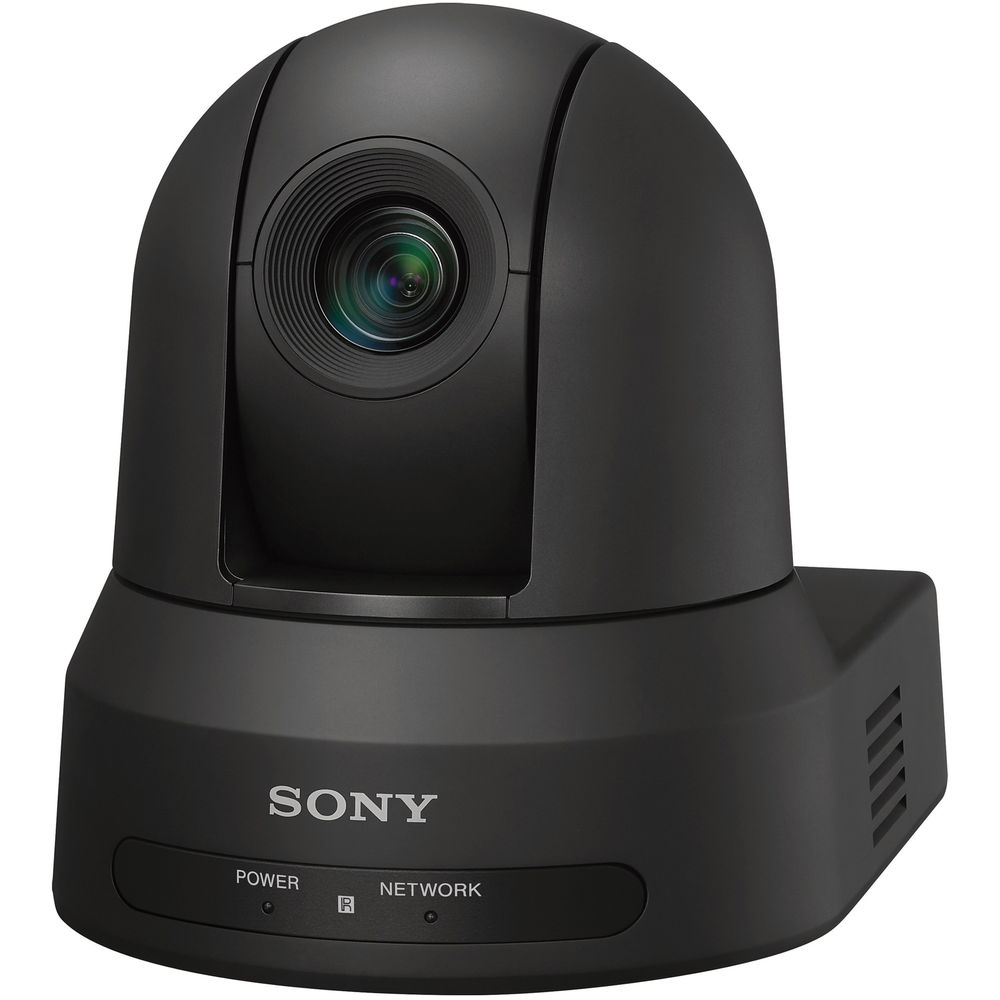

Capture every point of view in meetings and lectures with the black SRG-X4001080p PTZ Camera with HDMI, IP & 3G-SDI Output from Sony. Out of the box, this camera captures video at resolutions up to 1920 x 1080 at 60 fps. However, an optional license enables you to upgrade the camera for UHD 4K 3840 x 2160 performance. The camera is equipped with an 8.3MP CMOS sensor and a 4.4-88.0mm lens that delivers fields of view of up to 70°. Clear Image Zoom Technology can extend the 20x optical to up to 40x, allowing for frame-filling close-ups in Full HD.
The integrated pan/tilt system allows for 340° panning and 110° tilting at up to 300° and 126° per second respectively. Focusing can be performed manually or set to automatic. The camera outputs video via its HDMI, IP, and 3G-SDI interfaces. PoE+ technology simplifies setup by enabling you to power the camera directly via its network connection. An IR remote commander, mounting hardware, and an HDMI clamp are included in the package.
| Image Sensor | 1/2.5"-Type CMOS |
| Sensor Resolution | Effective: 8.5 Megapixel |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1 Second |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 80x ( in 1080p) |
| External Recording Modes | HDMI / RJ45 Show More |
| IP Streaming | H.264, H.265, RTMP, RTMPS, RTP, RTSP, SRT, TCP, UDP Show More |
Imaging
| Image Sensor | 1/2.5"-Type CMOS |
| Horizontal Resolution (TV Lines) | 1700 TV Lines |
| Sensor Resolution | Effective: 8.5 Megapixel |
| IR Cut Filter | Yes |
| Built-In ND Filter | None |
| Image Stabilization | Digital |
| Focus Control | Autofocus Manual Focus |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1 Second |
| Gain | 0 to 48 dB |
| Minimum Illumination | 1.6 Lux at 1/30 Shutter Speed |
| Flip / Mirror Support | Image Flip |
| White Balance | Presets: Auto, Indoors, Manual, One Push, Outdoors |
Lens
| Focal Length | 4.4 to 88mm |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 80x ( in 1080p) |
| Field of View | Horizontal: 70° |
| Maximum Aperture | f/2 to 3.8 |
| Minimum Focus Distance | Wide: 3.1" / 8.0 cm Telephoto: 31.5" / 80.0 cm |
Video Capture
| External Recording Modes | HDMI / RJ45 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50 fps 1280 x 720 at 50/59.94 fps SDI/BNC 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Audio Recording | AAC LC Audio |
| Broadcast Output | NTSC |
| IP Streaming | H.264, H.265, RTMP, RTMPS, RTP, RTSP, SRT, TCP, UDP 1920 x 1080 at 59.94p 1280 x 720 at 59.94p 720 x 576 at 59.94p 720 x 480 at 59.94p 640 x 360 at 59.94p |
Control
| Presets | 256 via IP 100 via VISCA |
| Move Speed | Pan: 0.5 to 300°/sec Tilt: 0.5 to 126°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 110° (-20 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | IP RS-422 VISCA |
Interface
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x RJ45 Output |
| Audio I/O | 2 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| Other I/O | 1 x BNC (Sync) Input 1 x RJ45 (RS-422, VISCA) Input 1 x RJ45 (RS-422, VISCA) Output |
Power
| PoE Support | PoE+ 802.3at |
| Power I/O | 1 x Barrel (10.8 to 13.2VDC) Input |
| Power Consumption | PoE: 25.5 W Power Supply: 23.8 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
General
| Mounting | 1 x 1/4"-20 Female |
| OS Compatibility | Windows 8.1 (64-Bit Only) Windows 10 (64-Bit Only) macOS 10.15 *As of May, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sound Level | NC30 |
| Dimensions (W x H x D) | 6.24 x 6.99 x 7.88" / 15.84 x 17.75 x 20.02 cm |
| Weight | 3.97 lb / 1.8 kg |
Packaging Info
| Package Weight | 8.13 lb |
| Box Dimensions (LxWxH) | 13.3 x 13 x 12.7" |
