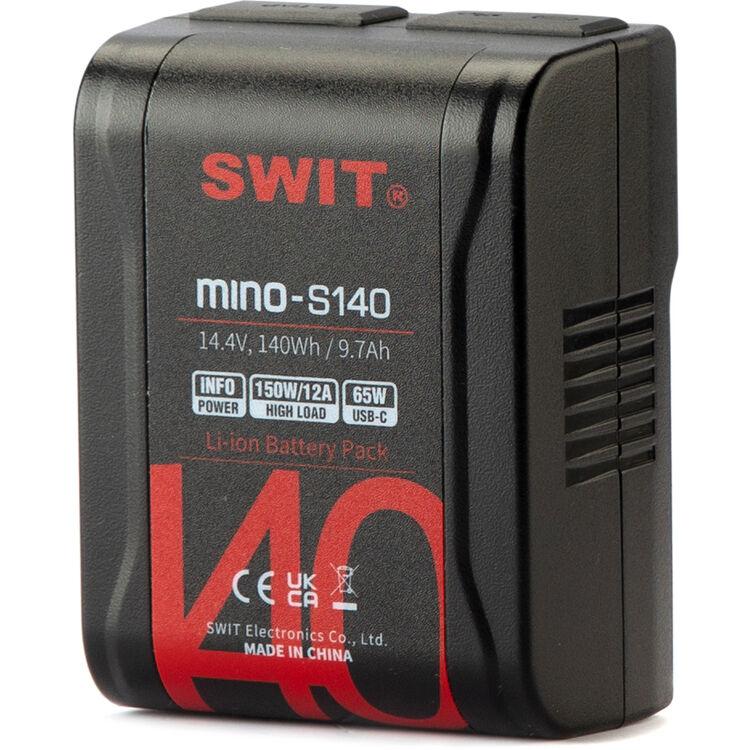

SWIT 140Wh Pocket Battery with D-Tap and USB Outputs (V-Mount)

Brand: SWIT

MFR: MINO-S140

SKU: SF-2443-USAL

1,084.00

  • Compact 140Wh Li-Ion V-Mount Battery

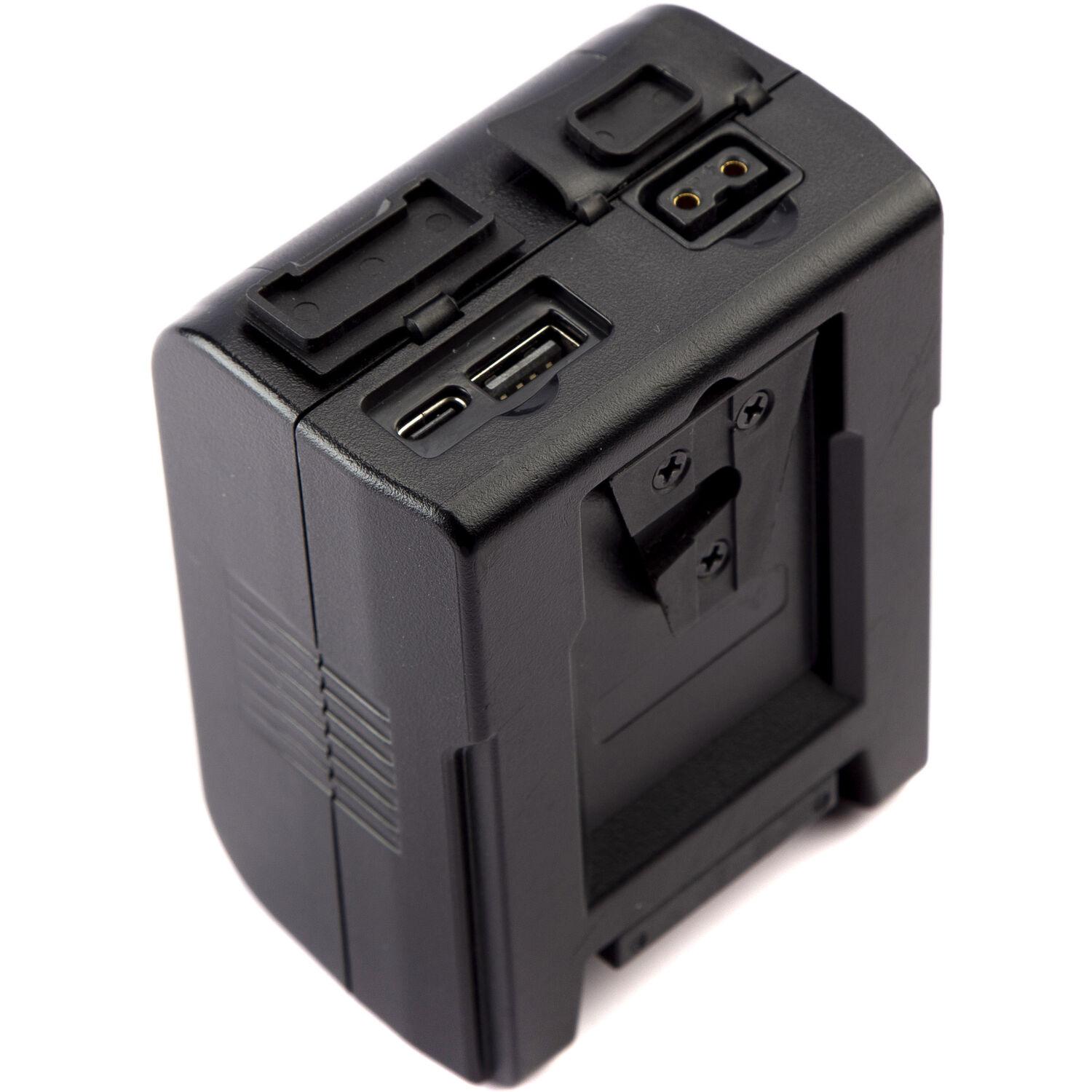

  • D-Tap, USB Type-A & Type-C Outputs
  • D-Tap & USB Type-C Also Charge Inputs
  • Up to 12A Continuous Load
  • Wire-Free Internals, Circuit Protection
  • 4-Stage Status LEDs
  • Passes Power Info to RED/Sony Cameras

Items Included


  • SWIT 140Wh Pocket Battery with D-Tap and USB Outputs (V-Mount)
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Batteries & Power

Add an ultracompact professional battery to power your rig with this V-mount 140Wh Pocket Battery with D-Tap and USB Outputs from SWIT. The battery provides a large 140Wh capacity and a 12A maximum load while maintaining a tiny size that fits onto small rigs such as gimbals and drones.

There are multiple ways to power your camera and accessories, including a D-Tap output, a USB Type-A output, and a USB Type-C output. The D-Tap and USB Type-C ports can also be used as inputs to charge the battery. The 4-LED gauge shows the remaining battery capacity, and that information can be passed through to Sony and RED camera displays. The battery features no internal wiring and has built-in circuit protection.

Key Features
Tiny V-mount battery that fits in your pocket
High 140Wh, 9.7Ah capacity
150W, 12A continuous load
One D-Tap 150W, 12A output also supports charging input
One USB Type-A 5V, 2A output
One USB Type-C with 65W output also supports 48W input
A 4-step LED power indicator
Power info pass-through for both Sony and RED
Wire-free internal design
Multiple circuit protections

Mount / Series Type
V-Mount
Chemistry
Lithium-Ion
Battery Capacity
9700 mAh / 140 Wh
Output Voltage
14.4 VDC
Maximum Load
12 A
Accessory I/O
1x D-Tap / P-Tap Input/Output 150 W, 12 A Out / 16.8 V, 3 A Out Regulated
1x USB-A Output 5 V, 2 A Regulated
1x USB-C Input/Output 65 W Out, 48 W In Regulated
USB Output
5 V
Charging Temperature
32 to 104°F / 0 to 40°C
Discharging Temperature
-4 to 122°F / -20 to 50°C
Dimensions (W x H x D)
4.1 x 3.1 x 2.2" / 105 x 79 x 55.5 mm
Weight
1.6 lb / 713 g
Packaging Info
Package Weight
1.66 lb
Box Dimensions (LxWxH)
4.5 x 3.2 x 2.4"
