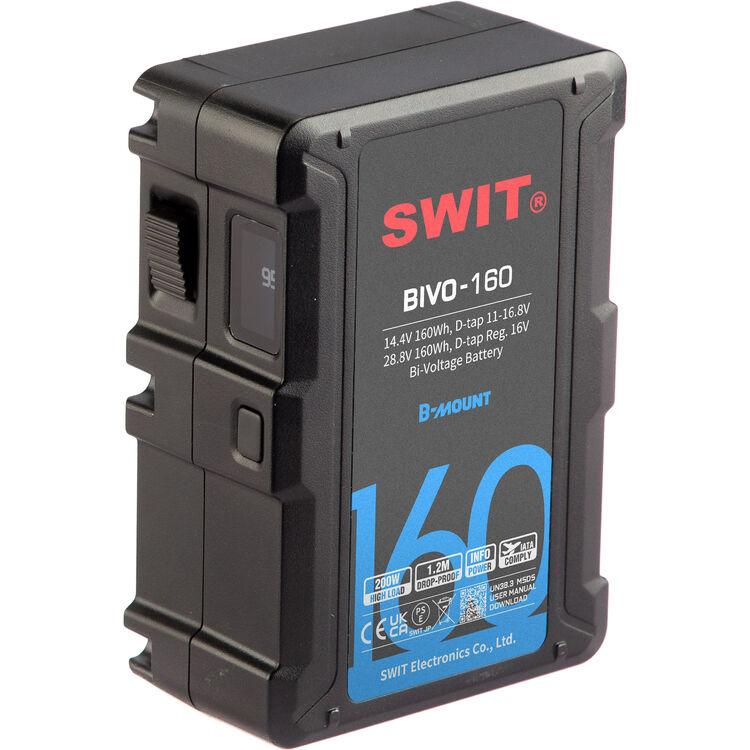

SWIT 14.4/28.8V Dual Voltage 160Wh B-Mount Battery

Brand: SWIT

MFR: BIVO-160

SKU: SF-2443-HFTU

2,164.00

  • 14.4/28.8V Dual Voltage B-Mount Battery
  • 160Wh Capacity
  • 200W Continuous Load
  • 100W/33.6V Fast Charging
  • 2 x Dual-Voltage D-Tap Outputs
  • 60W USB Type-C Input/Output
  • OLED Power/Info Display
  • Built-In LED Flashlight
  • Withstands Falls from up to 3.9'
  • Integrated Circuit Protection

Items Included


  • SWIT 14.4/28.8V Dual Voltage 160Wh B-Mount Battery
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Batteries & Power

Power your B-mount camera and pro video accessories with this high-capacity 14.4/28.8V Dual Voltage 160Wh B-Mount Battery from SWIT. Robust and versatile, the battery's B-mount interface enables powering B-mount accessories, cameras, or lights with the correct voltage, which is determined by the device's B-mount plate. This dual-voltage model can power either 14.4V or 28.8V devices via its B-mount interface.

The BIVO-160 has several powerful features, including multiple circuit protections to prevent overcharging, an OLED power/info status display, and a built-in flashlight to illuminate the mount when you are installing the battery. There are also two D-Tap outputs that can be used to power accessories. Designed to be strong, reliable, and versatile, this battery is built to withstand falls from 3.9'.

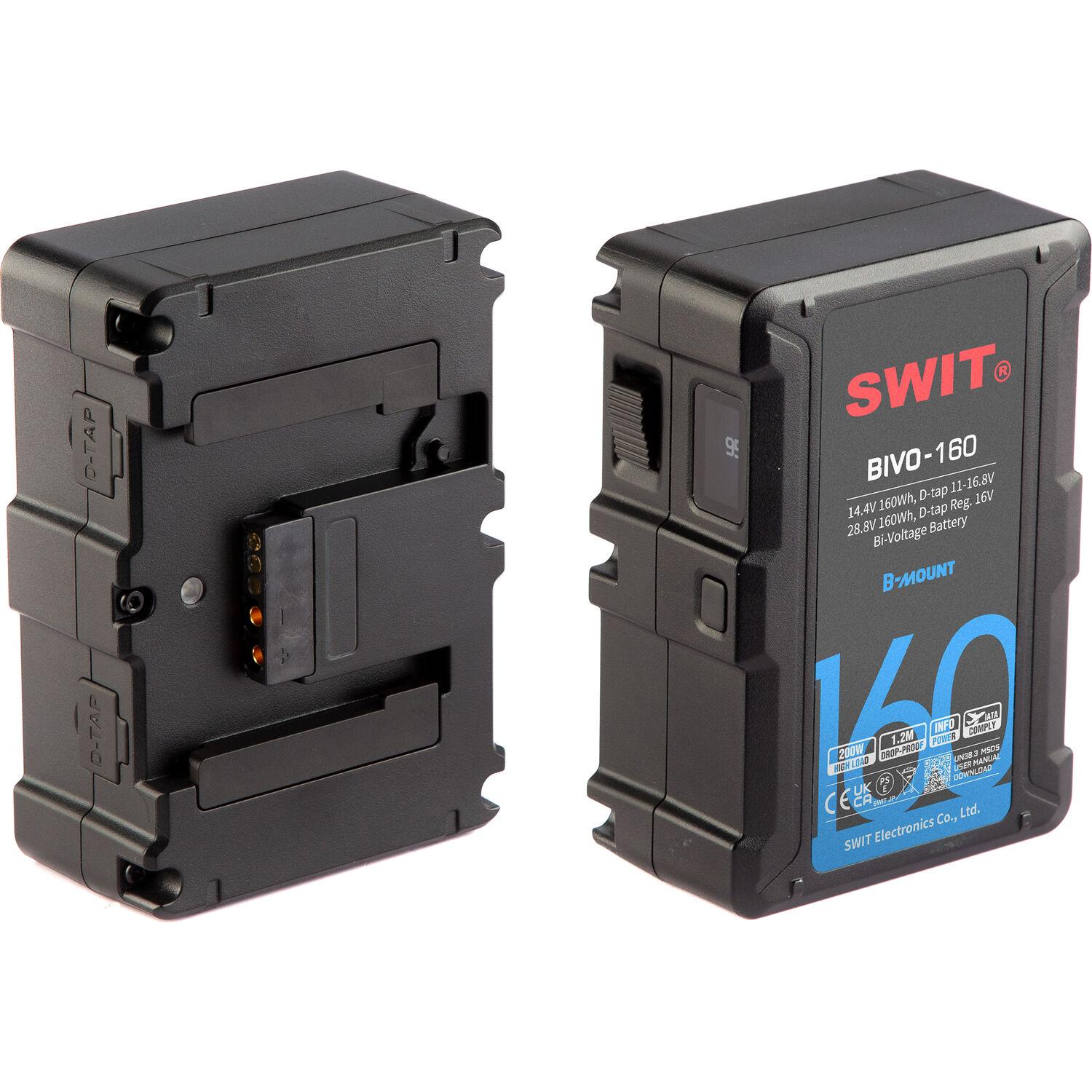

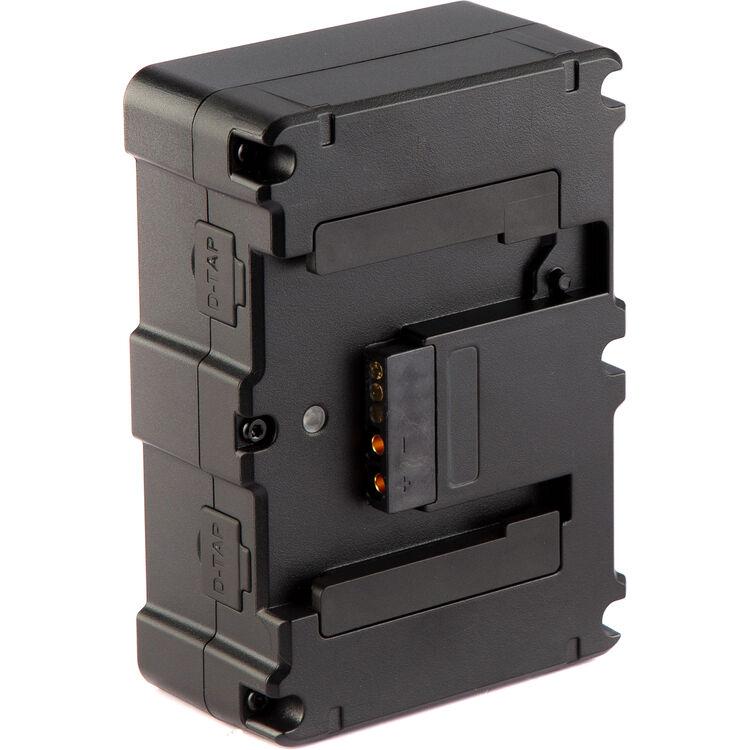

ARRI-Standard B-Mount Battery
The B-mount battery interface is a new industry standard endorsed by ARRI and the wider industry with high voltage support and a reliable lock system.
14.4 and 28.8V for Any Cine Gear
The 14.4 and 28.8V (22-33.6V) dual voltage matches all ARRI cameras and lights and equivalent high-powered cine equipment by effectively reducing current, providing reliability and long life.
Large Capacity
The BIVO-160 battery has a large 160Wh capacity and at least 200W constant high load for cine cameras and devices.
Multiple Inputs and Outputs
The BIVO-160 provides two regulated D-Tap outputs.
Circuit Protection
The battery features multiple circuit protections to protect your battery and your gear.
Power Info Display
The battery provides an OLED power/info status display to display battery status.
100W Super-Fast Charging

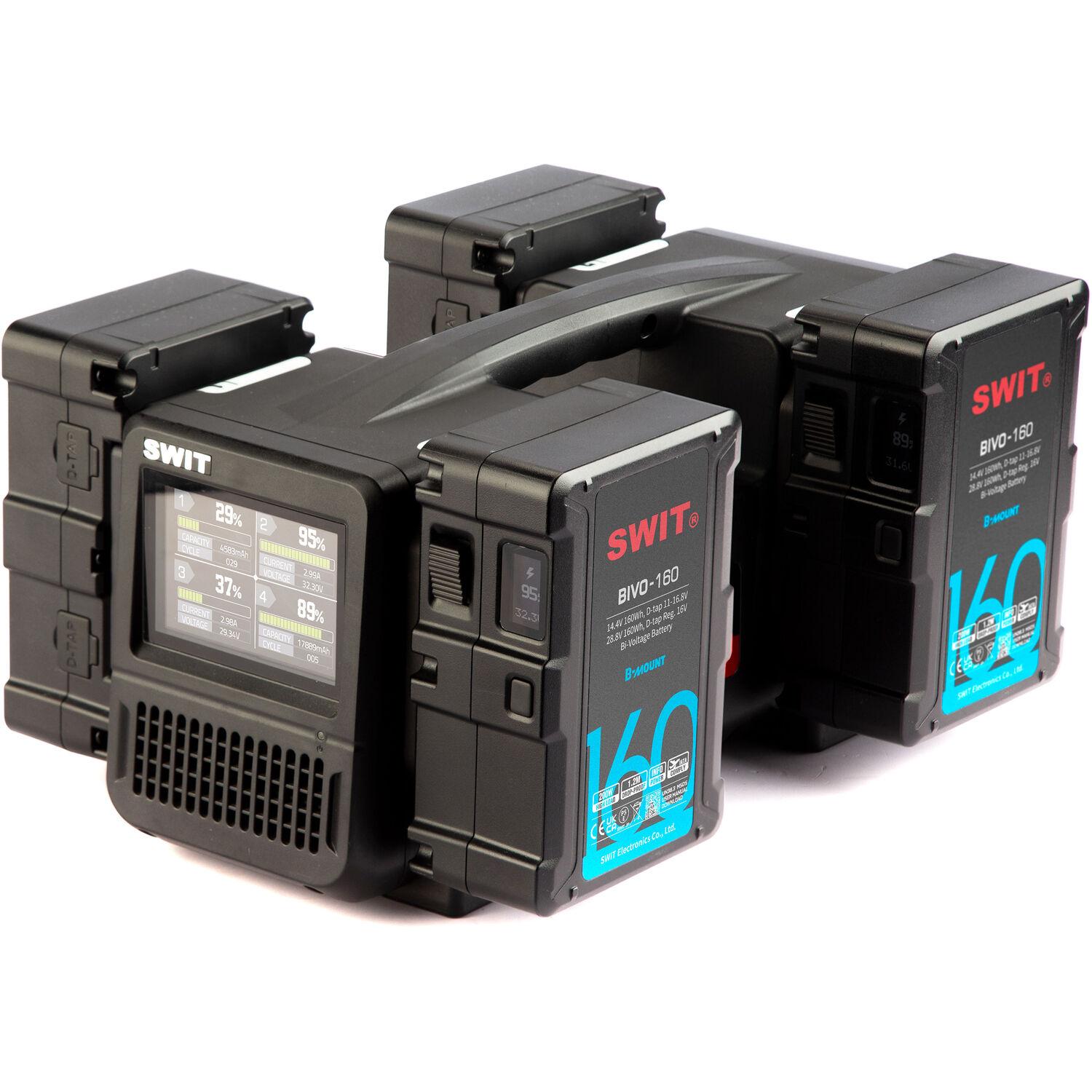

You can charge four batteries simultaneously on the SWIT PC-P461B B-mount charger using 33.6V, 100W super-fast charging.
LED Flashlight
You can double-press the Power Check button to switch on the LED flashlight on the rear side of the battery to help you to find the B-mount plate in a dark production environment.
Drop Proof at 3.9'
The BIVO-160 battery can survive a drop from 3.9' at any angle, providing strong and reliable performance for filmmakers.

Battery
Battery Type
1x B-Mount
Battery Capacity
160 mAh
Output Voltage
28.8 VDC
Battery Chemistry
Lithium-Ion
Power I/O
2x D-Tap/P-Tap Female Output
 • Output: 200 W Maximum (Up to 12.5 VDC at 16 A)
Accessory Mounting Thread
No
Indicator
Display
Dimensions
5.7 x 3.9 x 2.1" / 14.4 x 10 x 5.4 cm
Weight
2.4 lb / 1.1 kg
Environmental
Operating Conditions
-4 to 122°F / -20 to 50°C
Packaging Info
Package Weight
2.555 lb
Box Dimensions (LxWxH)
6.3 x 4.2 x 2.4"
