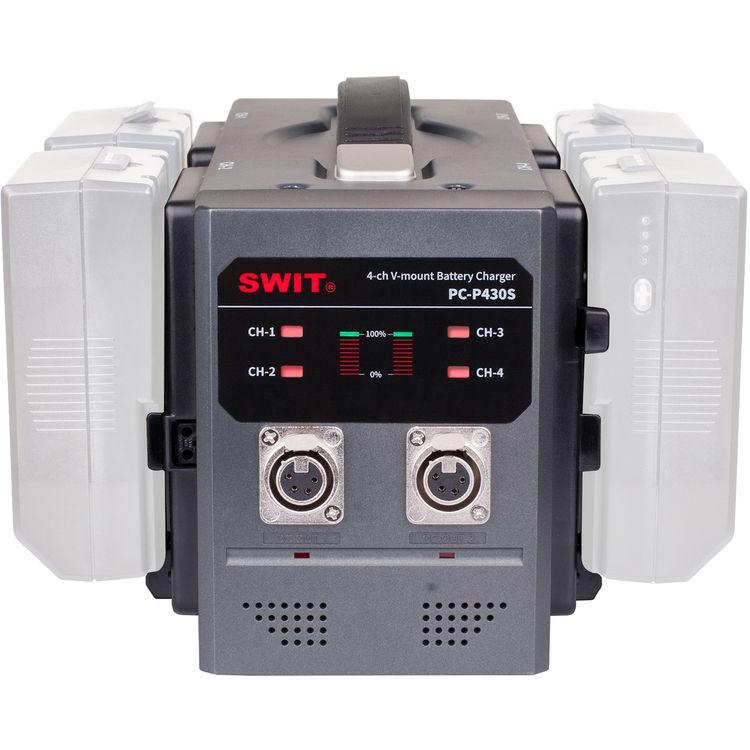

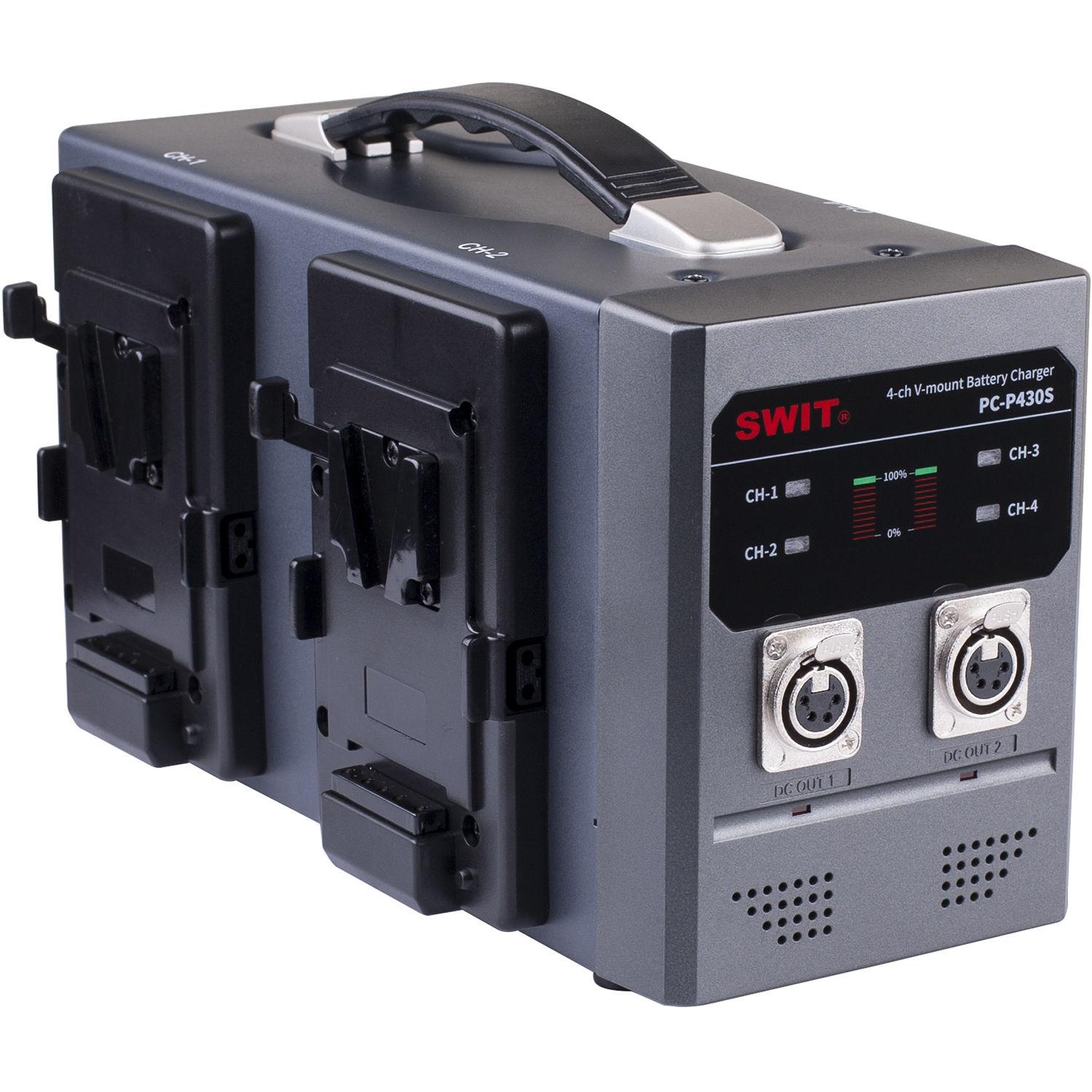

Use the 4-Bay Simultaneous Li-Ion Battery Charger from SWIT to charge up to four V-mount batteries simultaneously. Each bay replenishes a lithium-ion battery at 3A, while a color LED power indicator provides charging status for each bay.
Two 4-pin XLR outputs provide 6A, 90W of power to external components and can be used as an AC to DC adapter when the batteries are not charging. Overcurrent and overcharge protection safety features keep the batteries healthy by providing only the required current to each battery. The compact vertical design is easy to transport using the top handle, and the internal power supply can handle worldwide 100 to 240 VAC. An AC power cable is included with the charger.
| Charger Type | 1x Bay Charger for 4x Battery |
| Compatibility | Battery: V-Mount |
| Charging Modes | Simultaneous |
| Power I/O | 1x IEC Female Input • 100 to 240 VAC, 50 / 60 Hz 2x XLR 4-Pin Female Output • Output: 60 W Maximum (Up to 15 VDC at 4 A) Included Power Adapter/Cable 1x Cable with USA Type-A/B Plug to IEC Male |
| Battery Bay Output Voltage | 16.8 VDC at 3 A |
| Indicator | Status Light |
| Dimensions | 11.22 x 6.81 x 5.67" / 28.5 x 17.3 x 14.4 cm |
| Weight | 7.21 lb / 3.27 kg |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 10 to 90% Humidity |
