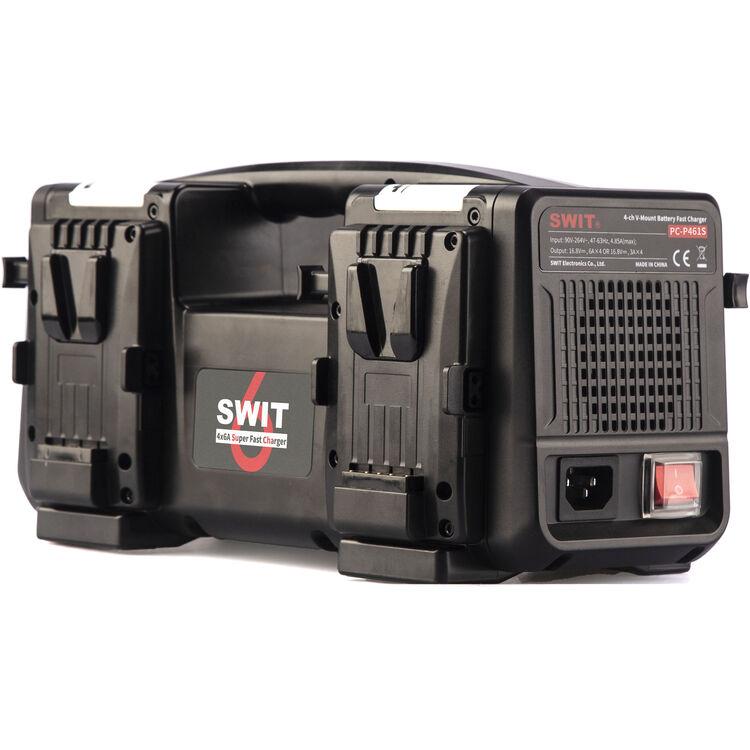

SWIT PC-P461S 4-Bay Simultaneous Fast Charger (V-Mount)
SWIT PC-P461S 4-Bay Simultaneous Fast Charger (V-Mount)
SWIT PC-P461S 4-Bay Simultaneous Fast Charger (V-Mount)
SWIT PC-P461S 4-Bay Simultaneous Fast Charger (V-Mount)
SWIT PC-P461S 4-Bay Simultaneous Fast Charger (V-Mount)
SWIT PC-P461S 4-Bay Simultaneous Fast Charger (V-Mount)
SWIT PC-P461S 4-Bay Simultaneous Fast Charger (V-Mount)
SWIT PC-P461S 4-Bay Simultaneous Fast Charger (V-Mount)

SWIT PC-P461S 4-Bay Simultaneous Fast Charger (V-Mount)

Brand: SWIT

MFR: PC-P461S

SKU: SF-2443-CI6M

2,792.00 ﾹ

  • 4-Bay V-Mount Charger
  • Simultaneous Fast Charging
  • 3A/6A Charging Output, 100W
  • 3.5" LCD, LED Indicators
  • Built-In Carrying Handle
  • Worldwide Compatible 90-240 VAC Input

Items Included

  • SWIT PC-P461S 4-Bay Simultaneous Fast Charger (V-Mount)
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Batteries & Power

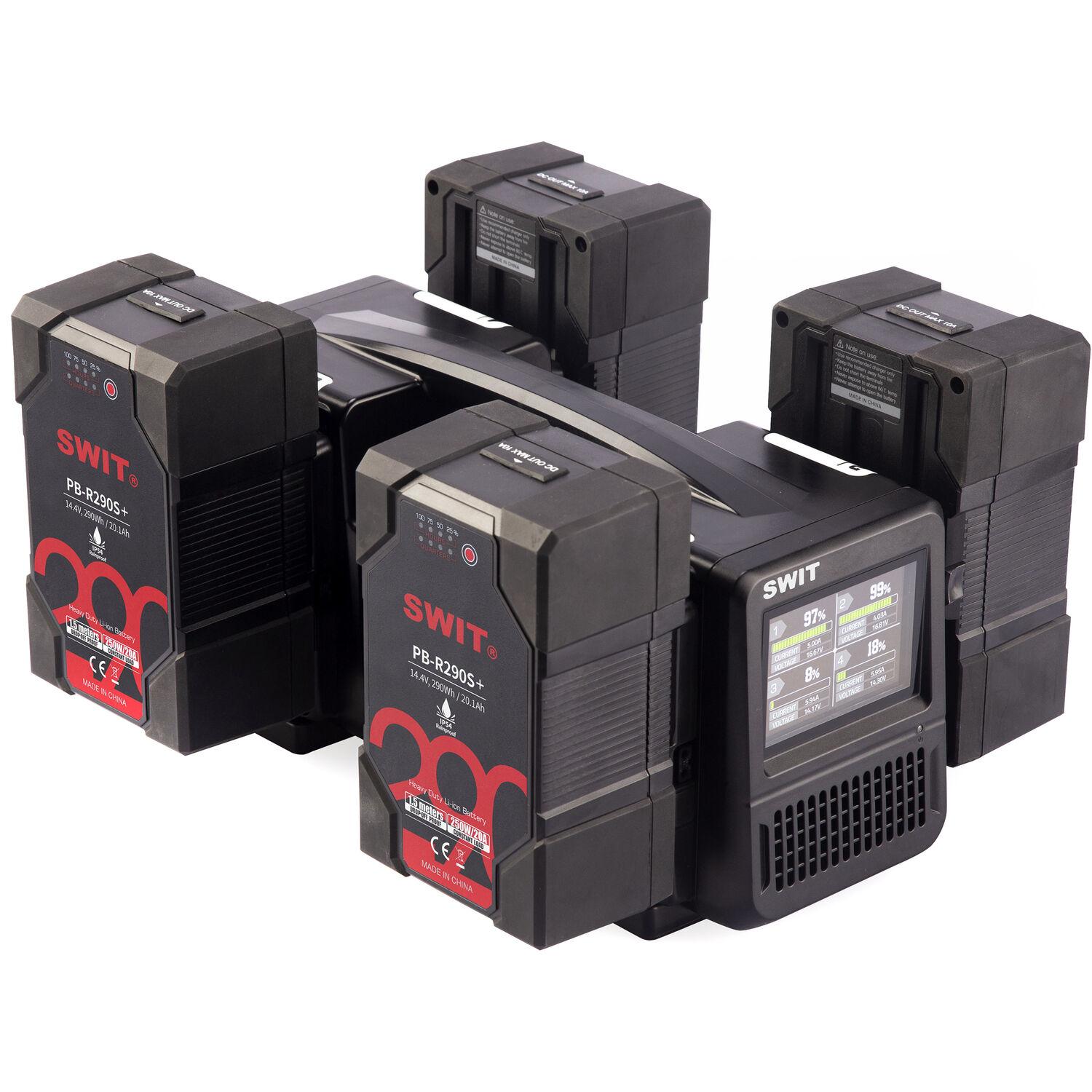

This PC-P461S 4-Bay Simultaneous Battery Charger from SWIT can charge four V-mount batteries simultaneously for super-fast charging speeds. Charge 14.4V and 28.8V nominal voltage batteries at 100W/6A or 100W/3A fast charging rates and save up to 60% charging time in comparison to other models. The charger is compatible with V-mount SWIT and Sony batteries. A built-in 3.5" LCD and LED light indicators make for easy monitoring of each battery's status.

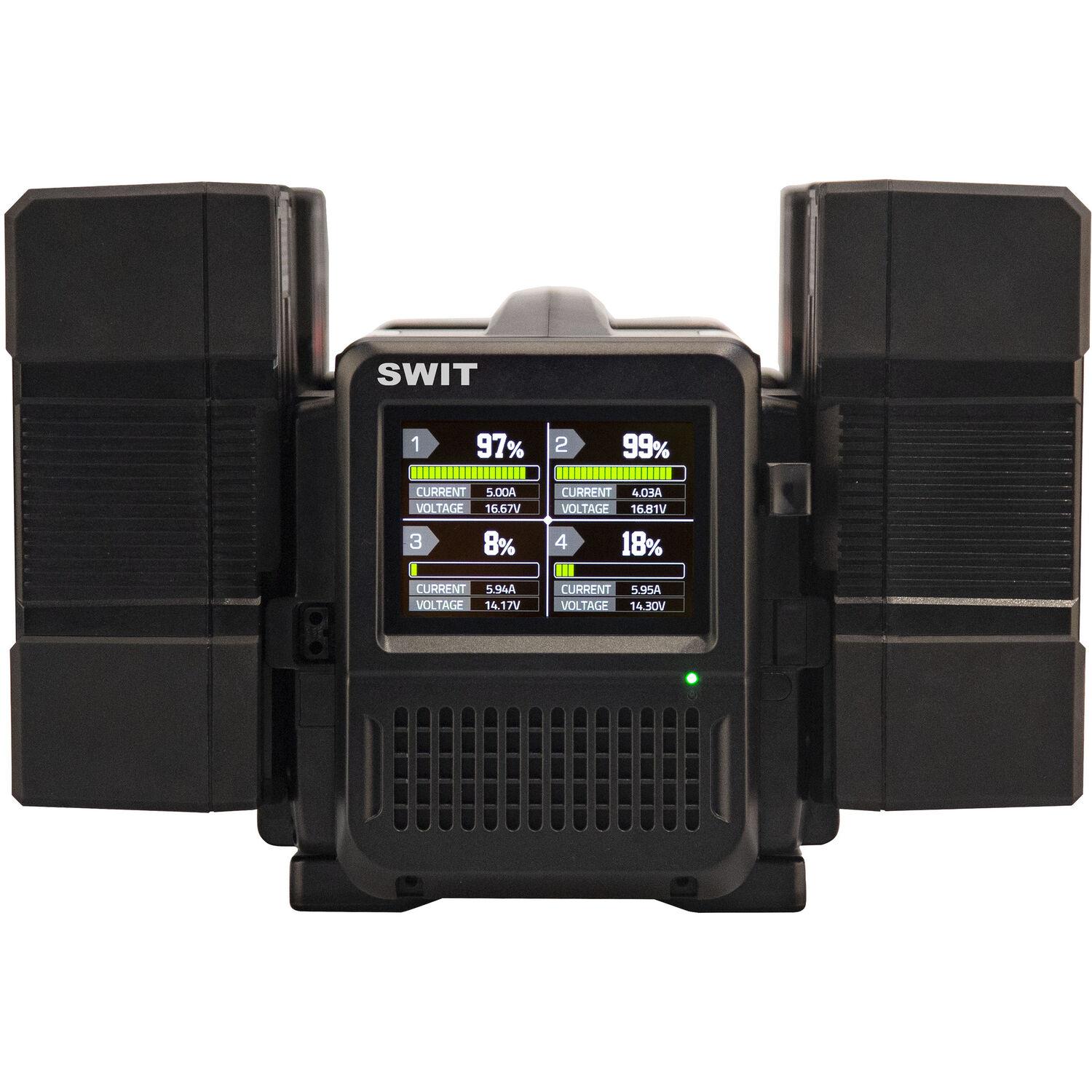

3.5" Color LCD and LED Indicators
The charger provides a 3.5" color LCD panel to display charging progress, charging current, voltage, and battery cycle times for each channel. Four large LED indicators on the top of the charger can also display the charging status.

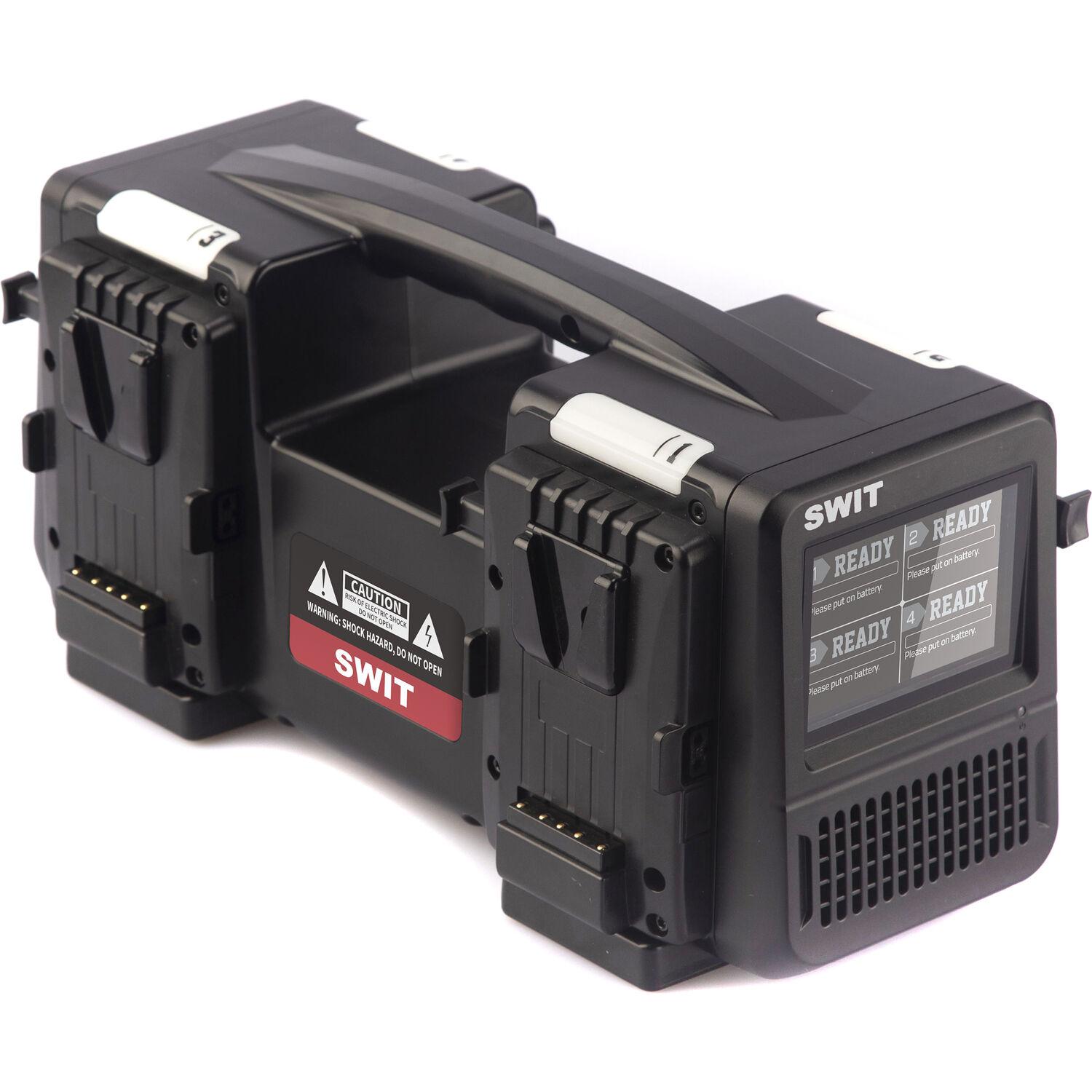

Lightweight and Portable
The 4-channel fast charger has a lightweight and portable form factor with an integrated handle design for easy transporting.
Fast Charging Times
The charger can fully charge a 160Wh battery in 2.6 hours using 6A fast charging.
Charging Outputs
  • SWIT 14.4V ≥160Wh batteries: 16.8V at 6A
  • SWIT 28.8V ≥160Wh batteries: 33.6V at 3A
  • Other batteries: 16.8V at 3A

Charger
Charger Type
1x Bay Charger for 4x Battery
Compatibility
Battery: V-Mount (26 V)
Charging Modes
Simultaneous
Power I/O
1x IEC Female Input
 • 100 to 240 VAC, 50 / 60 Hz

Included Power Adapter/Cable
1x Cable with USA Type-A/B Plug to IEC Male
Battery Bay Output Voltage
16.8 VDC at 3 A
33.6 VDC at 3 A
Indicator
Display
Features
Quick Charge
Dimensions
13 x 6.4 x 6" / 330 x 162 x 153 mm
Weight
5.36 lb / 2.43 kg
Environmental
Operating Conditions
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Packaging Info
Package Weight
7.1 lb
Box Dimensions (LxWxH)
15 x 8.9 x 8.2"

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • SWIT PC-P461S 4-Bay Simultaneous Fast Charger (V-Mount)
